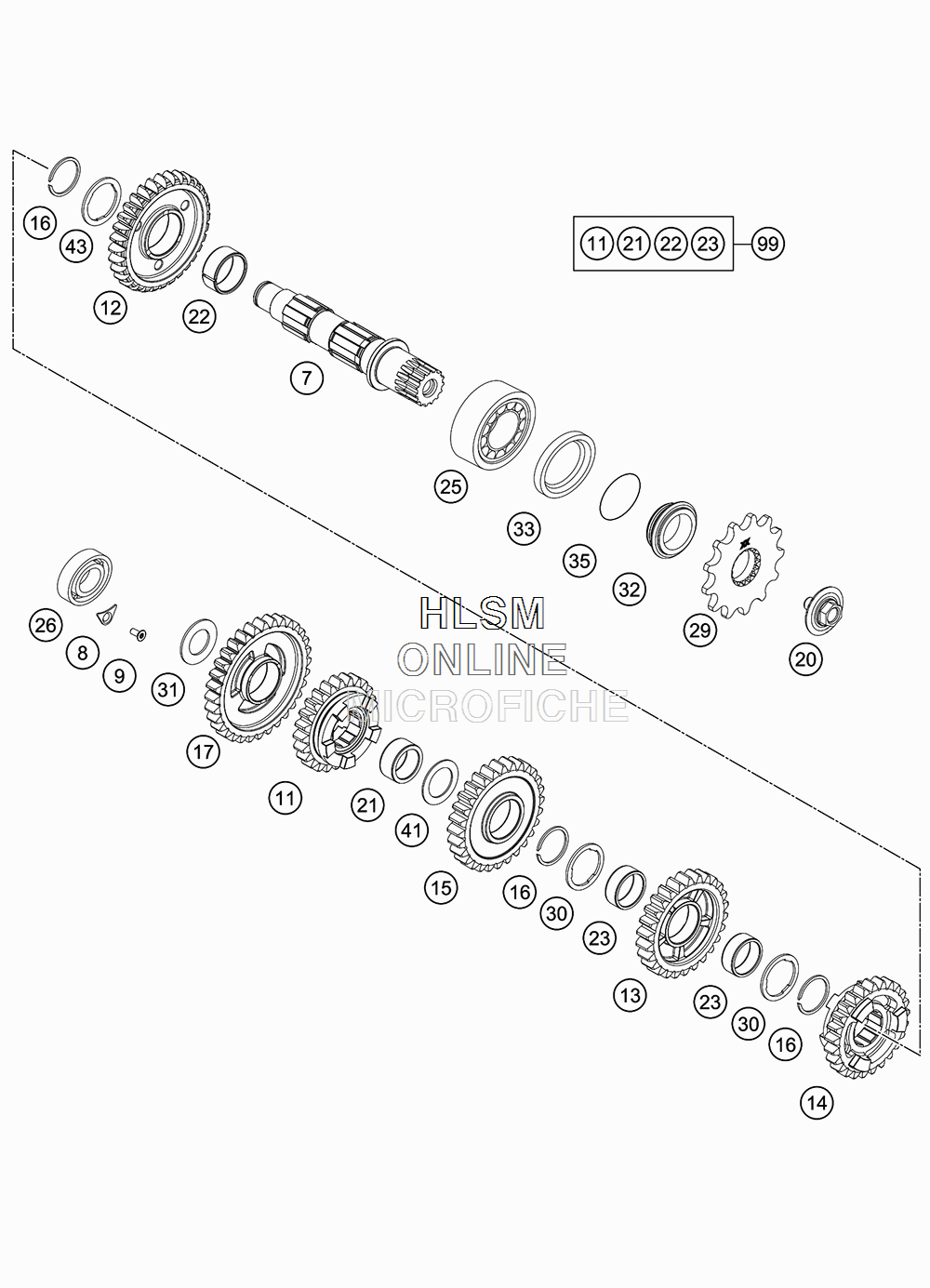

TRANSMISSION II - COUNTERSHAFT для Ktm 250 EXC-F - 2017 года выпуска
-
№АртикулНазвание
-
777733110000 COUNTERSHAFTCOUNTERSHAFT
-
875030085000 RETAINING PLATE F. CS BEARINGRETAINING PLATE F. CS BEARING
-
90019050121S INT. TORX FLAT HEAD M5X12 T25INT. TORX FLAT HEAD M5X12 T25
-
1172033016000 SLIDING GEAR 6TH GEAR, 20TSLIDING GEAR 6TH GEAR, 20T
-
1277733112000 IDLER GEAR 2ND G. T=30IDLER GEAR 2ND G. T=30
-
1377733114100 IDLER GEAR 4.G. Z=28IDLER GEAR 4.G. Z=28
-
1477733115100 SLIDING GEAR 5.G.,Z=23SLIDING GEAR 5.G.,Z=23
-
1577733113100 IDLER GEAR 3.G. Z=24IDLER GEAR 3.G. Z=24
-
160417024000 CIRCLIP WS24CIRCLIP WS24
-
1777733011000 IDLER GEAR 1ST G. T=32IDLER GEAR 1ST G. T=32
-
2059033034044 SCREW 10.9+SPRING WASHERSCREW 10.9+SPRING WASHER
-
210405202612 NEEDLE BEARING K 20X26X12NEEDLE BEARING K 20X26X12
-
220405242812 NEDDLE BEAR. K24X28X11,9 DIV.NEDDLE BEAR. K24X28X11,9 DIV.
-
230405222611 NEEDLE BEAR.K 22X26X10 DIVIDEDNEEDLE BEAR.K 22X26X10 DIVIDED
-
2549030023000 CYL.ROLL BEARING NJ205CYL.ROLL BEARING NJ205
-
260625062035 BALL BEARING 6203 JR2 C3BALL BEARING 6203 JR2 C3
-
2979233029013 SPROCKET 13TSPROCKET 13T
-
2979233129014 ENGINE SPROCKET 14ZENGINE SPROCKET 14Z
-
3077733043000 STOP DISC 23,4X31X1,5STOP DISC 23,4X31X1,5
-
3177233020000 STOP DISK 17,2X30X1,3STOP DISK 17,2X30X1,3
-
3278133014000 SPACER SLEEVE COUNTERSPACER SLEEVE COUNTER
-
330760324571 SHAFT SEAL RING 32X45X7 BSLNBRSHAFT SEAL RING 32X45X7 BSLNBR
-
350770020220 O-RING 25,12X1,78 NBR70O-RING 25,12X1,78 NBR70
-
4154833080000 STOP DISC 20,2X30X1STOP DISC 20,2X30X1
-
4377733044000 STOP DISC 24X32X1,5STOP DISC 24X32X1,5
-
9900050000941 COUNTER SHAFT REP.KIT 4 STROKECOUNTER SHAFT REP.KIT 4 STROKE
