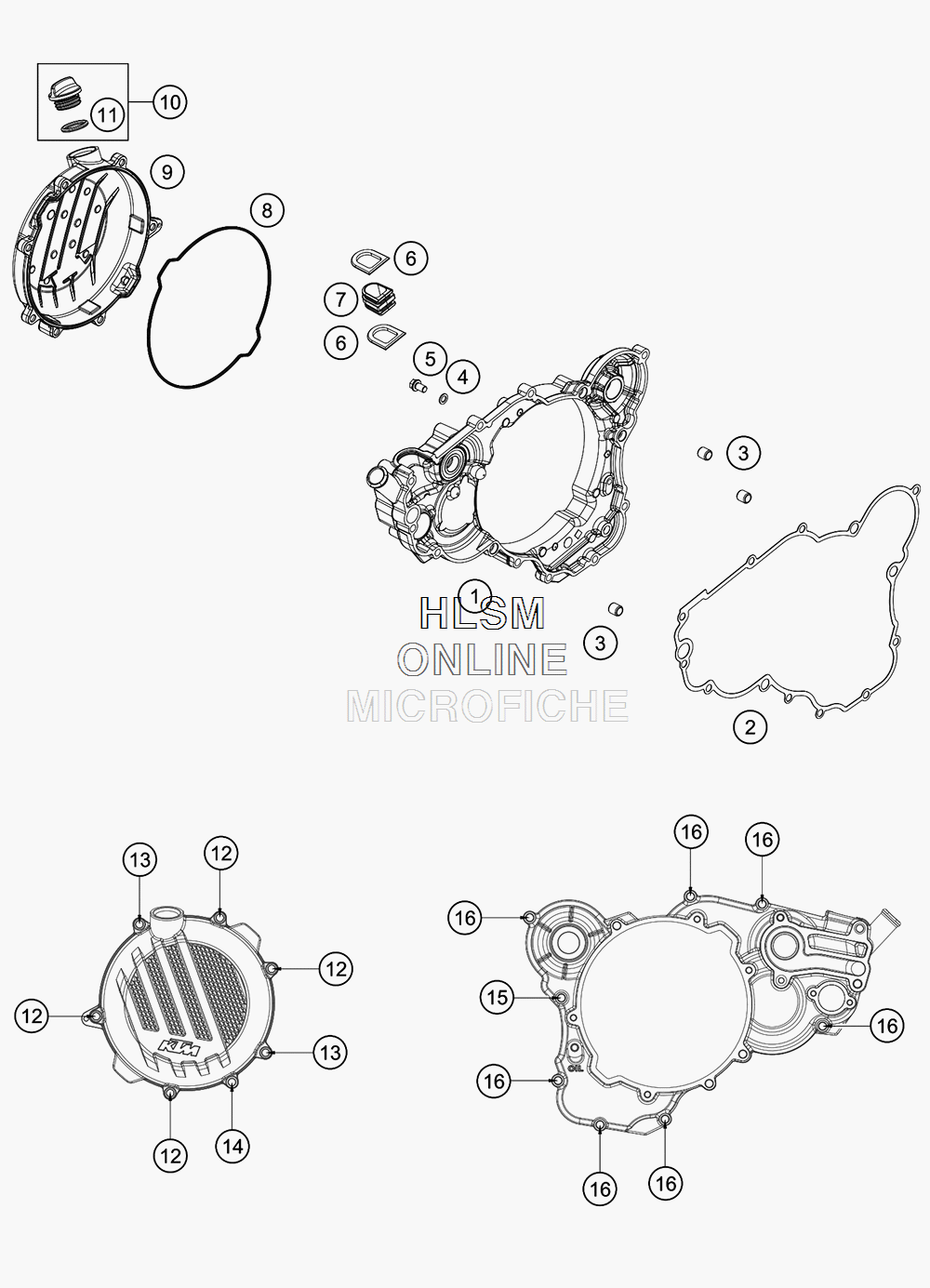

CLUTCH COVER для Ktm 250 EXC - 2017 года выпуска
-
№АртикулНазвание
-
155430001044 INNER CLUTCH COVER CPL. 17INNER CLUTCH COVER CPL. 17
-
255430025000 CLUTCH COVER GASKET INSIDECLUTCH COVER GASKET INSIDE
-
349030090100 DOWEL 9,8 X7X10DOWEL 9,8 X7X10
-
40603061001 CU-SEAL RING DIN7603-6X10X1CU-SEAL RING DIN7603-6X10X1
-
50025060106 HH COLLAR SCREW M6X10HH COLLAR SCREW M6X10
-
654637107000 SEALING ELEMENT BOTTOMSEALING ELEMENT BOTTOM
-
754837091100 SEALING CARRIERSEALING CARRIER
-
855430027000 CLUTCH COVER GASKET OUTSIDECLUTCH COVER GASKET OUTSIDE
-
9554300260001 5 CLUTCH COVER OUTSIDE5 CLUTCH COVER OUTSIDE
-
1079430020033 OIL FILLER CAP M24X3 WITH O-ROIL FILLER CAP M24X3 WITH O-R
-
110770191015 O-RING 19,00X3,00 NBRO-RING 19,00X3,00 NBR
-
120025060206 HH COLLAR SCREW M6X20HH COLLAR SCREW M6X20
-
130025060606 HH COLLAR SCREW M6X60HH COLLAR SCREW M6X60
-
140025060556 HH COLLAR SCREW M6X55HH COLLAR SCREW M6X55
-
150025060306 HH COLLAR SCREW M6X30HH COLLAR SCREW M6X30
-
160025060256 HH COLLAR SCREW M6X25HH COLLAR SCREW M6X25
