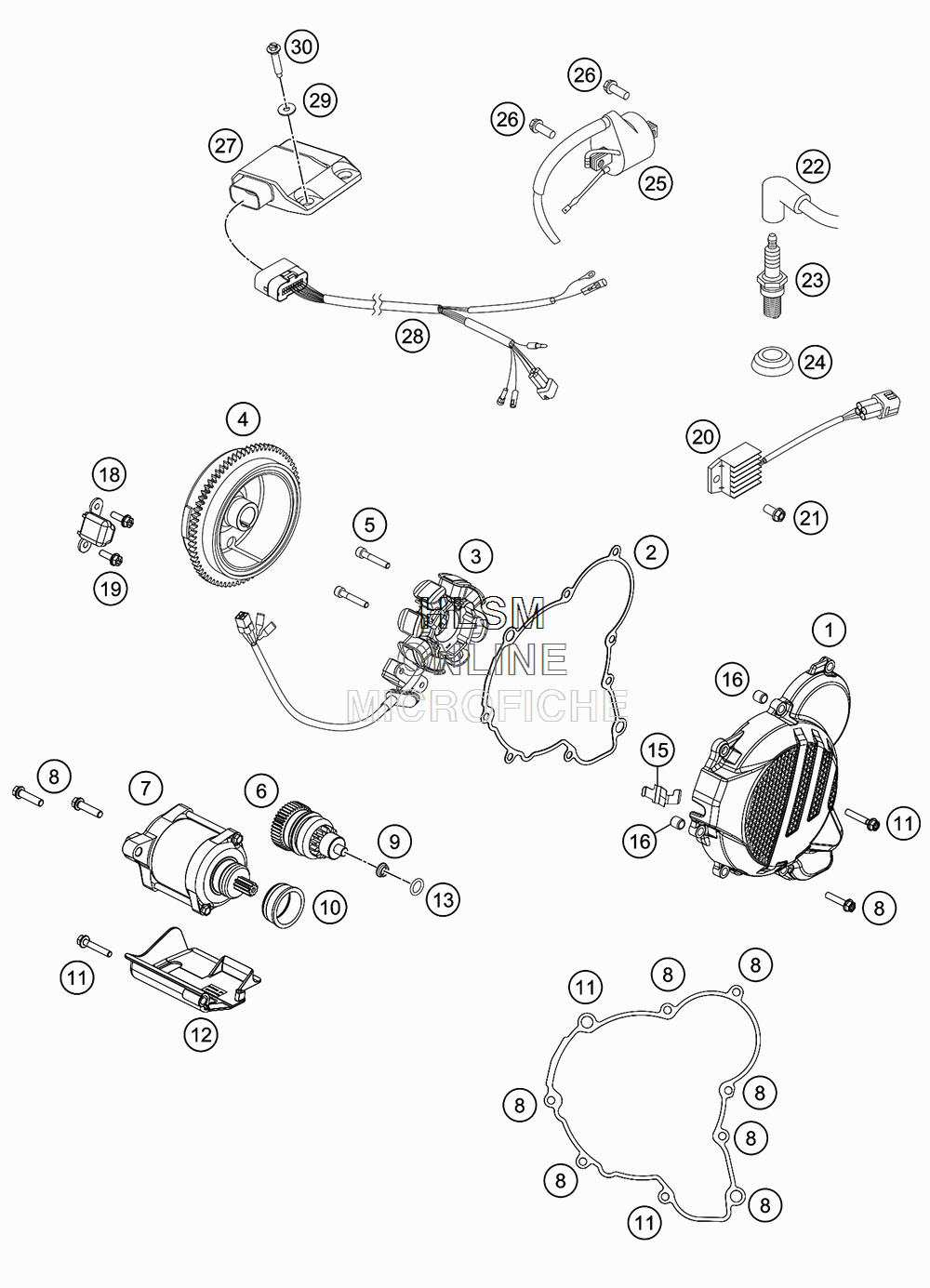

IGNITION SYSTEM для Ktm 250 EXC - 2017 года выпуска
-
№АртикулНазвание
-
1554302020001 5 IGNITION COVER5 IGNITION COVER
-
255430040000 IGNITION COVER GASKETIGNITION COVER GASKET
-
355439204000 STATORSTATOR
-
355439205000 ROTORROTOR
-
50025050256 HH COLLAR SCREW M5X25 ISA30HH COLLAR SCREW M5X25 ISA30
-
655440126000 5544012600055440126000
-
755440001000 ST AR TER ENGINEST AR TER ENGINE
-
80025060256 HH COLLAR SCREW M6X25HH COLLAR SCREW M6X25
-
955140030100 COLLAR BUSHINGCOLLAR BUSHING
-
1055440012000 BEARING BUSHBEARING BUSH
-
110025060306 HH COLLAR SCREW M6X30HH COLLAR SCREW M6X30
-
1255440040044 PROTECTION CAP ST AR TER ENGINEPROTECTION CAP ST AR TER ENGINE
-
130770021260 O-RING 34,59X2,62O-RING 34,59X2,62
-
1555439140120 PLA TE HARNESS MAGNETOPLA TE HARNESS MAGNETO
-
1859039034000 PULSER COIL KOKUSAN 4K3-A/BPULSER COIL KOKUSAN 4K3-A/B
-
190025050166 HH COLLAR SCREW M5X16HH COLLAR SCREW M5X16
-
2080011034000 VOLTAGE REGULATORVOLTAGE REGULATOR
-
210023060123 COLLAR SCREW M6X12COLLAR SCREW M6X12
-
2247039090000 SPARK PLUG CAP NGK REINFORC.04SPARK PLUG CAP NGK REINFORC.04
-
2354739093000 SPARK PLUG NGK BR7ESSPARK PLUG NGK BR7ES
-
2450231012000 SEALING CUP FOR SPARK PLUGSEALING CUP FOR SPARK PLUG
-
2559039006000 IGNITIONCOIL "IG5128"IGNITIONCOIL "IG5128"
-
260026060186 COLLAR SCREW M6X18 ISA30COLLAR SCREW M6X18 ISA30
-
2755439131000 CDI UNIT 250EXC 17CDI UNIT 250EXC 17
-
2855439032000 HARNESS CDI BOX 2T 2017HARNESS CDI BOX 2T 2017
-
290017060305 SPECIAL SCREW K60X30 WS=6SPECIAL SCREW K60X30 WS=6
-
300021050003 WASHER DIN9021-A 5,3WASHER DIN9021-A 5,3
