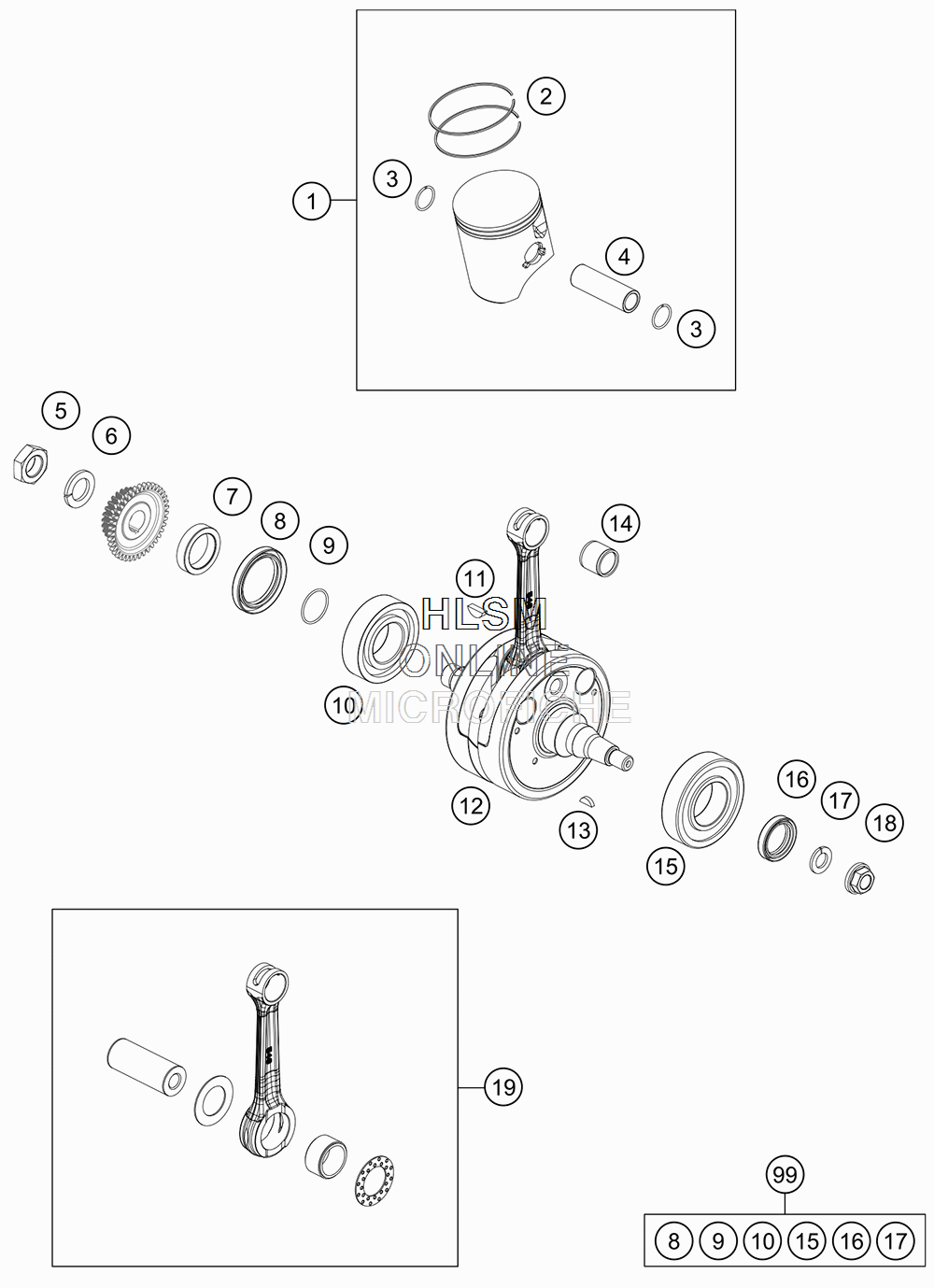

CRANKSHAFT PISTON для Ktm 300 XC - 2017 года выпуска
-
№АртикулНазвание
-
155630107000I PISTON CPL. SIZE 1 D=71,925PISTON CPL. SIZE 1 D=71,925
-
155630107000II PISTON CPL. SIZE 2 D=71,935PISTON CPL. SIZE 2 D=71,935
-
254830132000 R-RING 72,0MMR-RING 72,0MM
-
354830074000 SNAP RING 18X1,5SNAP RING 18X1,5
-
454830233000 PISTON PINPISTON PIN
-
554630029000 HEX.NUT L/SH M18X1,5HEX.NUT L/SH M18X1,5
-
658132072000 LOCK WASHER VSK 18LOCK WASHER VSK 18
-
755430016000 DIST ANCE SLEEVEDIST ANCE SLEEVE
-
80760385273 SHAFT SEAL RING 38X52X7BTSLSHAFT SEAL RING 38X52X7BTSL
-
90770250015 O-RING 25,00X1,50 NBR 70O-RING 25,00X1,50 NBR 70
-
100625623204 BALL BEARING 32X65X17 NTNBALL BEARING 32X65X17 NTN
-
116946005 WOODRUFF KEY 5X6,5 HARDEDWOODRUFF KEY 5X6,5 HARDED
-
1255430118100 CRANKSHA FT EXCCRANKSHA FT EXC
-
130888030050 WOODRUFF KEY DIN6888-3X5X13WOODRUFF KEY DIN6888-3X5X13
-
1454430034000 NEEDLE BEARING KBK 18X22X20NEEDLE BEARING KBK 18X22X20
-
1556530123200 CYLIND.ROL.BEAR. NJ207ET2XCS42CYLIND.ROL.BEAR. NJ207ET2XCS42
-
160760253570 SHAFT SEAL RING 25X35X7 BTSLSHAFT SEAL RING 25X35X7 BTSL
-
1750230029012 LOCKING RING VSK 12LOCKING RING VSK 12
-
1849030021000 COLLAR NUT M12X1 R/SCOLLAR NUT M12X1 R/S
-
1954830015244 CON.ROD REP. SETCON.ROD REP. SET
-
9900050002301 CRANKSHAF REP. KITCRANKSHAF REP. KIT
