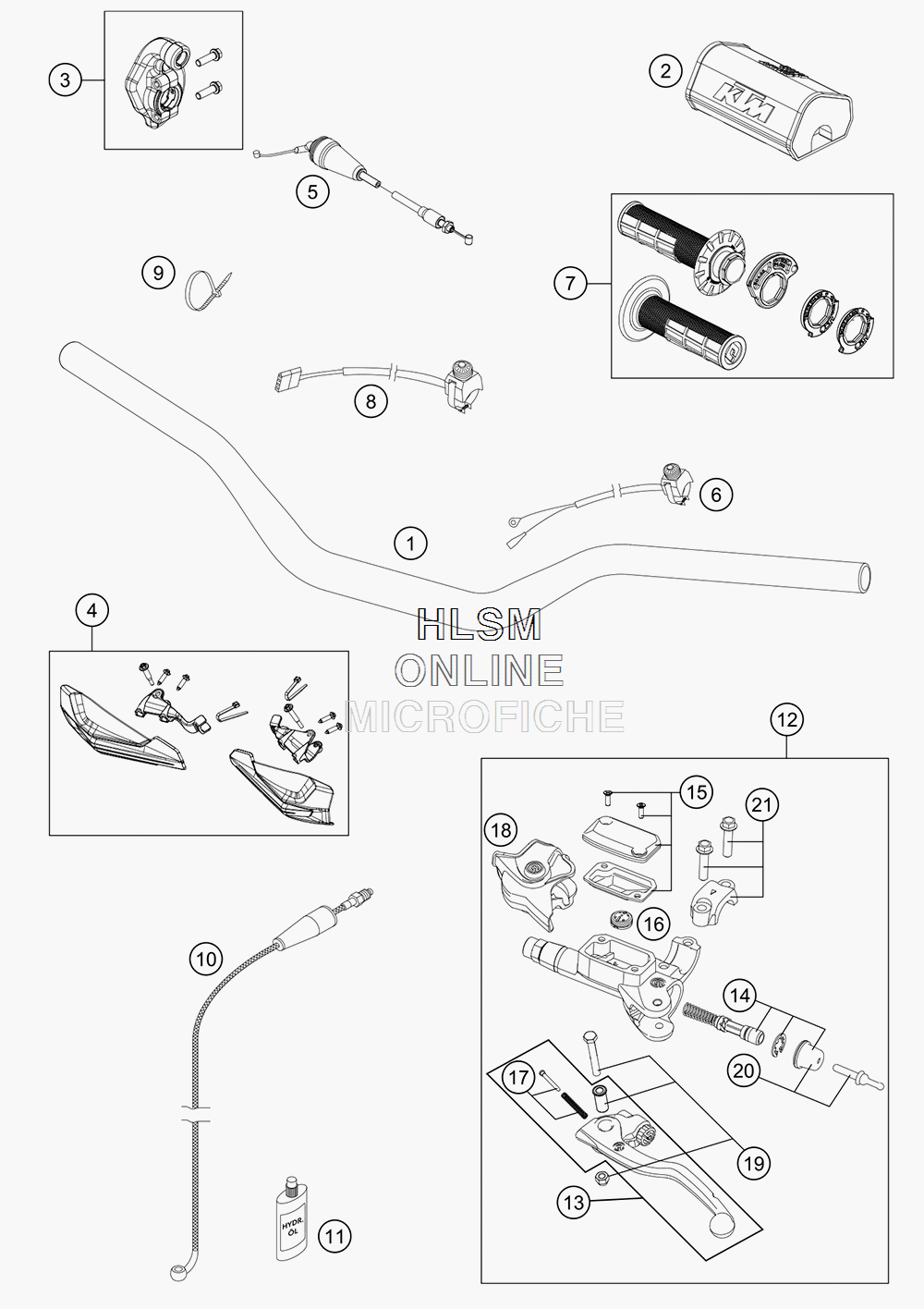

HANDLEBAR CONTROLS для Ktm 300 XC - 2017 года выпуска
-
№АртикулНазвание
-
17900200100030 HANDLEBAR D=28MMHANDLEBAR D=28MM
-
279002002000 BAR PADBAR PAD
-
350402010025 THROTTLE BODY CPL.THROTTLE BODY CPL.
-
477702179000EB HAND GUARDS CPL.L/S+R/S ORANGEHAND GUARDS CPL.L/S+R/S ORANGE
-
550402091000 THROTTLE CABLETHROTTLE CABLE
-
650311089200 SHORT CIRCUIT BUTTONSHORT CIRCUIT BUTTON
-
779002021100 GRIP SETGRIP SET
-
878111074000 STARTER BUTTON GREYSTARTER BUTTON GREY
-
944011076200 CABLE TIE 200/3,6MM BLACKCABLE TIE 200/3,6MM BLACK
-
1079232063000 CLUTCH PIPECLUTCH PIPE
-
1150302036200 OIL FOR HYD. CLUTCH 100 MLOIL FOR HYD. CLUTCH 100 ML
-
1254802030144 MASTER CYLINDER CPL.MASTER CYLINDER CPL.
-
1354802031000 CLUTCH LEVER CPL. BREMBOCLUTCH LEVER CPL. BREMBO
-
1454802032000 REP. KIT PISTONREP. KIT PISTON
-
155480200310030 COVER HYD. CLUTCH CPL.COVER HYD. CLUTCH CPL.
-
1654802051000 VALVEVALVE
-
1754802052000 BOLT KPL.BOLT KPL.
-
1854802037000 PROTECTION CAPPROTECTION CAP
-
1954802038100 LEVER SCREW CPL.LEVER SCREW CPL.
-
2054802046000 PUSH ROD CPL.PUSH ROD CPL.
-
2154802005100 CLAMP CPL.CLAMP CPL.
