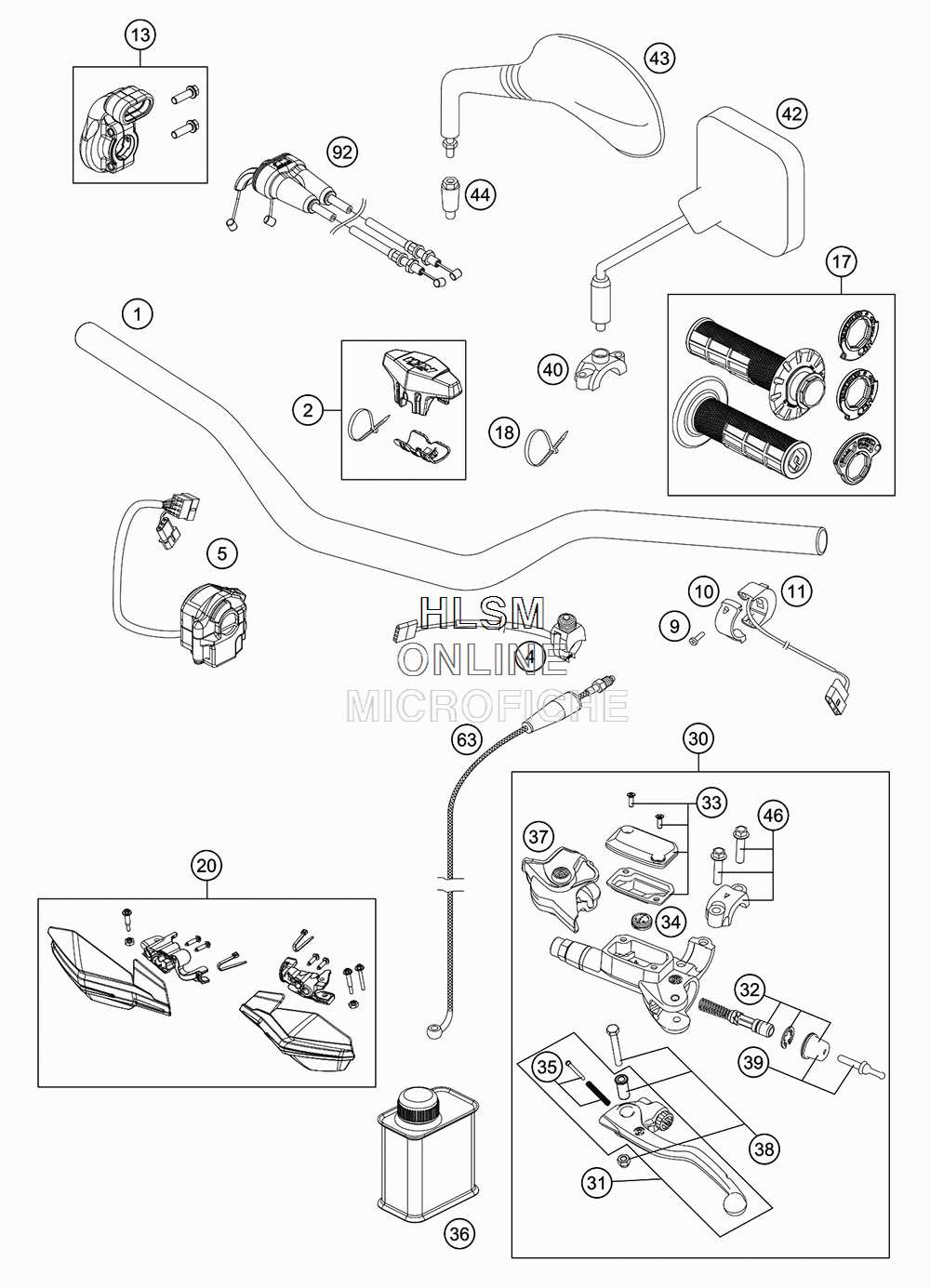

HANDLEBAR- CONTROLS для Ktm 450 EXC-F SIXDAYS - 2017 года выпуска
-
№АртикулНазвание
-
15480200130030 HANDLEBAR D=28MM SX/EXC BLACKHANDLEBAR D=28MM SX/EXC BLACK
-
277202002144 BAR PAD CPL.BAR PAD CPL.
-
478111074000 STARTER BUTTON GREYSTARTER BUTTON GREY
-
576511070000 LIGHT SWITCH L/SLIGHT SWITCH L/S
-
90912040203 AH SCREW DIN 912-M 4X20AH SCREW DIN 912-M 4X20
-
1050311074050 CLAMP ENGINE STOP SWITCHCLAMP ENGINE STOP SWITCH
-
1150311074000 ENGINE STOP SWITCH CEVENGINE STOP SWITCH CEV
-
1379002010025 THROTTLE CONTROL CASING CPL.THROTTLE CONTROL CASING CPL.
-
1779002021100 GRIP SETGRIP SET
-
1844011076140 CABLE TIE 140/2,5MM BLACKCABLE TIE 140/2,5MM BLACK
-
1844011076200 CABLE TIE 200/3,6MM BLACKCABLE TIE 200/3,6MM BLACK
-
207770217900028 HAND GUARDS CPL. L/S+R/S WHITEHAND GUARDS CPL. L/S+R/S WHITE
-
3054802030144 MASTER CYLINDER CPL.MASTER CYLINDER CPL.
-
3154802031000 CLUTCH LEVER CPL. BREMBOCLUTCH LEVER CPL. BREMBO
-
3254802032000 REP. KIT PISTONREP. KIT PISTON
-
335480200310030 COVER HYD. CLUTCH CPL.COVER HYD. CLUTCH CPL.
-
3454802051000 VALVEVALVE
-
3554802052000 BOLT KPL.BOLT KPL.
-
3600062030000 BRAKE FLUID DOT5.1 0,25LBRAKE FLUID DOT5.1 0,25L
-
3754802037000 PROTECTION CAPPROTECTION CAP
-
3854802038100 LEVER SCREW CPL.LEVER SCREW CPL.
-
3954802046000 PUSH ROD CPL.PUSH ROD CPL.
-
4058012040150 CLAMP FOR MIRRORCLAMP FOR MIRROR
-
4258012040000 REAR MIRROR L/SREAR MIRROR L/S
-
4258012140000 REAR MIRROR R/SREAR MIRROR R/S
-
4358412040000 MIRROR L/SMIRROR L/S
-
4358412041000 MIRROR R/SMIRROR R/S
-
4458412040050 SUPPORT FOR MIRROR LC4SUPPORT FOR MIRROR LC4
-
4654802005100 CLAMP CPL.CLAMP CPL.
-
6378132063000 CLUTCH PIPECLUTCH PIPE
-
9279002091000 THROTTLE CABLE CPL. 4STROKETHROTTLE CABLE CPL. 4STROKE
