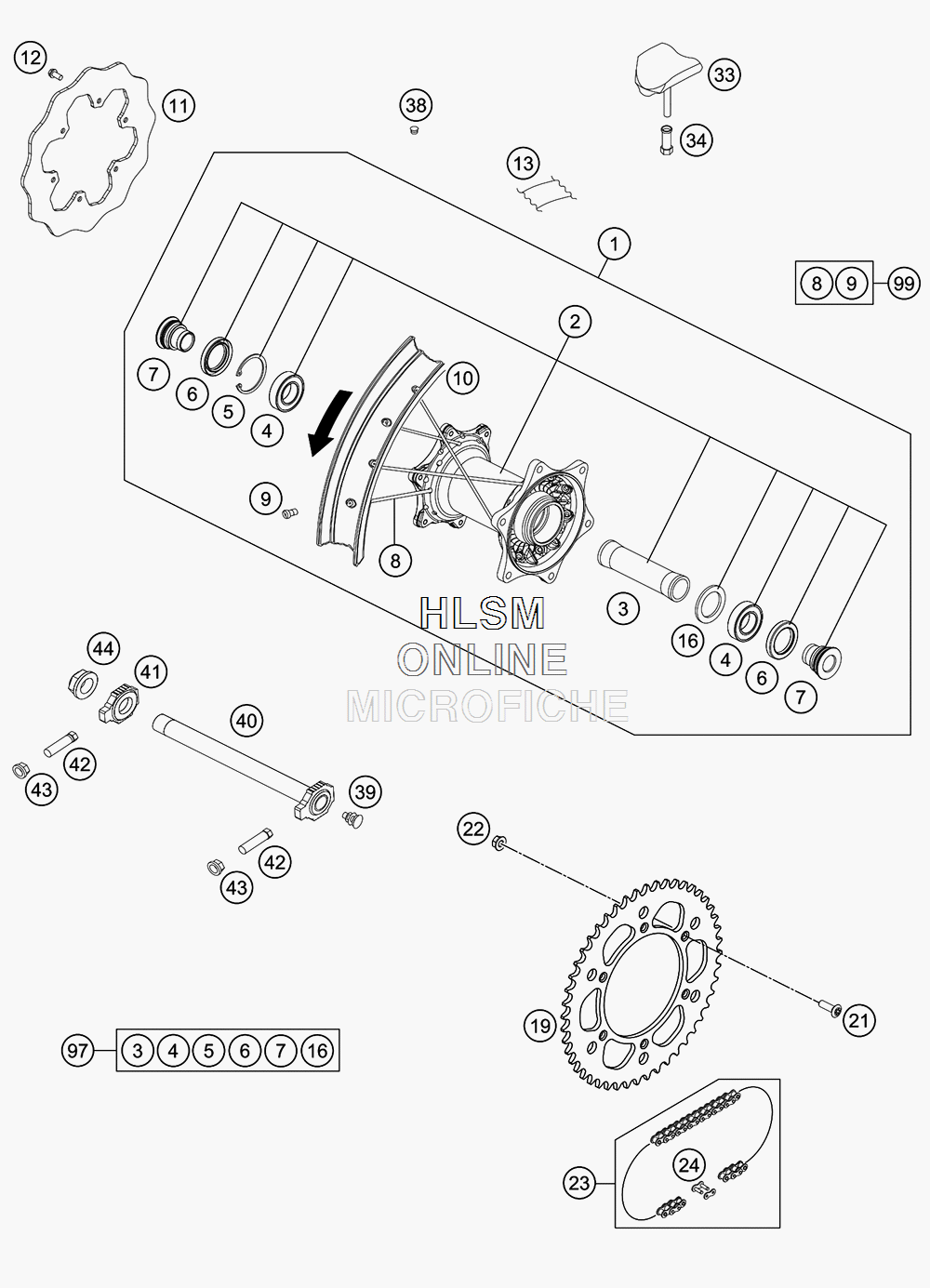

REAR WHEEL для Ktm 450 EXC-F SIXDAYS - 2017 года выпуска
-
№АртикулНазвание
-
17811000114430 RE.WHEEL CPL.2,15X18"BLK.SD 13RE.WHEEL CPL.2,15X18"BLK.SD 13
-
226510010144 REARHUB CPL.REARHUB CPL.
-
377710011000 BEARING DISTANCE TUBE 121,5MMBEARING DISTANCE TUBE 121,5MM
-
40625060058 GR.BALL BEAR.6005 DDU2CG23S6NMGR.BALL BEAR.6005 DDU2CG23S6NM
-
50472047175 CIRCLIP DIN0472-47X1,75CIRCLIP DIN0472-47X1,75
-
60760324771 SHAFT SEAL RING 32X47X7 BSLSHAFT SEAL RING 32X47X7 BSL
-
778010016000 BUSHING FOR HUBBUSHING FOR HUB
-
87711007119330 SPOKE M4,5X193- 18" BLACK 12SPOKE M4,5X193- 18" BLACK 12
-
977109072000 SPOKE NIPPLE M4,5 ALSPOKE NIPPLE M4,5 AL
-
107811007010030 RIM REAR 2,15X18" BLACKRIM REAR 2,15X18" BLACK
-
1125010960000 BRAKE DISC REAR D=220MMBRAKE DISC REAR D=220MM
-
1259009062013 SPECIAL SCREW M6X13 WS=8 10.9SPECIAL SCREW M6X13 WS=8 10.9
-
1350310073200 RIM BAND 18" AND 19"RIM BAND 18" AND 19"
-
1677710015000 DISTANCE RINGDISTANCE RING
-
197771015104504 REAR SPROCKET 45-TREAR SPROCKET 45-T
-
197771015104804 REAR SPROCKET 48T ORANGEREAR SPROCKET 48T ORANGE
-
197771015105004 REAR SPROCKET 50T ORANGEREAR SPROCKET 50T ORANGE
-
197771015105104 SPROCKET 51-ZSPROCKET 51-Z
-
197771015105204 REAR SPROCKET 52T ORANGEREAR SPROCKET 52T ORANGE
-
210019080266S COUNTER-SUNK SCREW ISA45 M8X26COUNTER-SUNK SCREW ISA45 M8X26
-
2206923080003 HEXAGON NUT DIN EN1661 M8 SW13HEXAGON NUT DIN EN1661 M8 SW13
-
2378010167118 CHAIN DID 118 LINKSCHAIN DID 118 LINKS
-
2478010166000 CONNECTING LINK F. 78010167118CONNECTING LINK F. 78010167118
-
3378110090000 RIM LOCK 2,15"RIM LOCK 2,15"
-
3477110090050 NUT FOR WHEEL HOLDERNUT FOR WHEEL HOLDER
-
3855003135000 PLUG FOR RIMPLUG FOR RIM
-
3950210086000 COVERING CAP SFL16COVERING CAP SFL16
-
4077310085044 WHEEL SPINDLE RE. CPL.265MM 07WHEEL SPINDLE RE. CPL.265MM 07
-
4150310084000 CHAIN TENSIONER R/SCHAIN TENSIONER R/S
-
4250304040100 SCREW M10X1,25X50 WS=10SCREW M10X1,25X50 WS=10
-
4358414030000 HH COLLAR NUT M10X1,25HH COLLAR NUT M10X1,25
-
4450310099000 HEXAGON NUT M20X1,5HEXAGON NUT M20X1,5
-
9778010015010 REAR WHEEL REP . KITREAR WHEEL REP . KIT
-
9900050000958 SPOKE KIT REAR 18" BLACKSPOKE KIT REAR 18" BLACK
