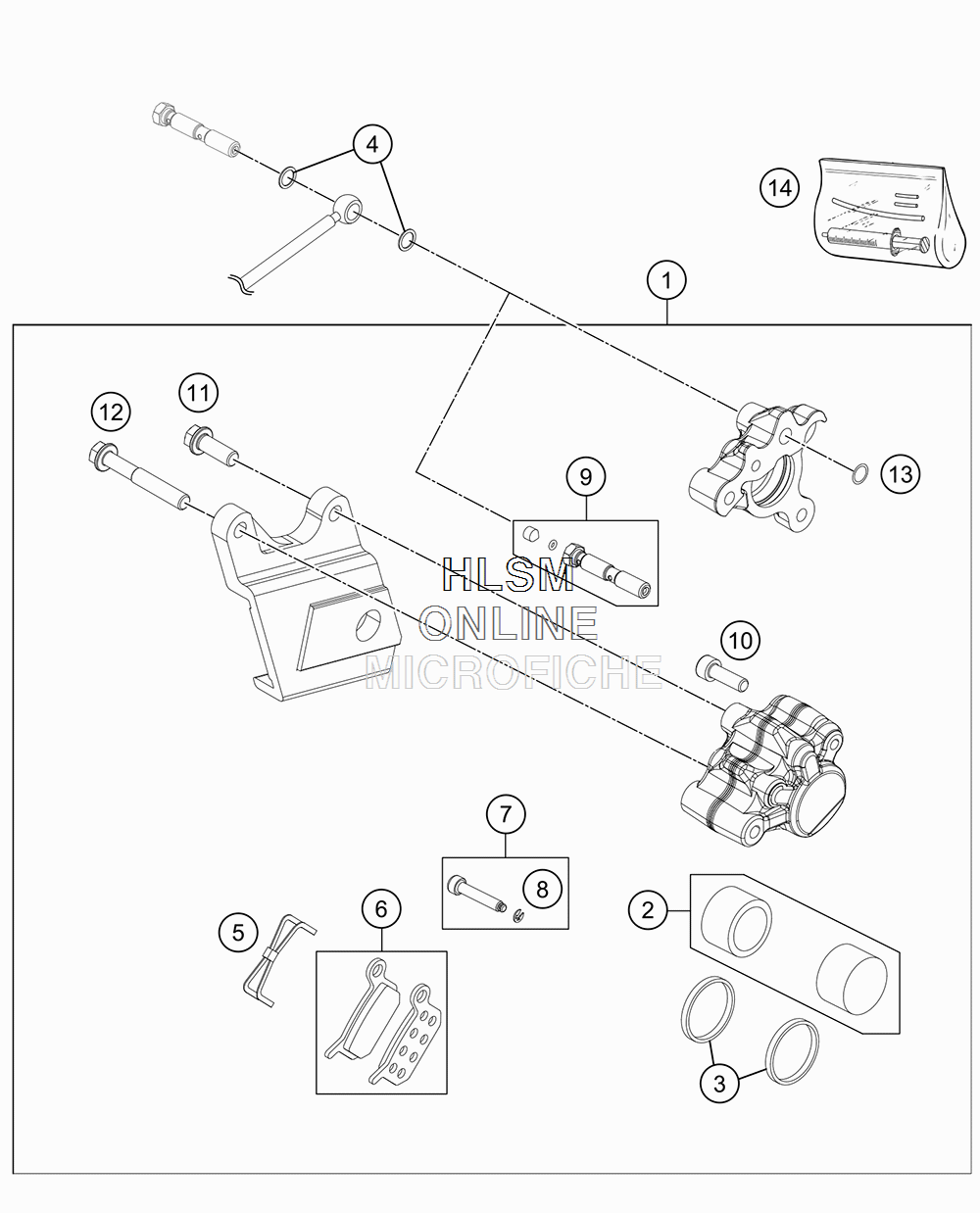

BRAKE CALIPER REAR для Ktm 50 SX - 2017 года выпуска
-
№АртикулНазвание
-
145213080000 BRAKE CALIPER REARBRAKE CALIPER REAR
-
245113019100 REPAIR KIT BRAKEPISTONREPAIR KIT BRAKEPISTON
-
30770022020 O-RING 22X2X2 EPDMO-RING 22X2X2 EPDM
-
40770060019 O-RING 6,00X1,00 FORMULAO-RING 6,00X1,00 FORMULA
-
545113018000 RETAINING SPRINGRETAINING SPRING
-
645113030000 BRAKE PAD SETBRAKE PAD SET
-
745113225000 AH SCREW + CIRCLIP 50/65AH SCREW + CIRCLIP 50/65
-
80799025000 TAB WASHER DIN6799 RS2,5TAB WASHER DIN6799 RS2,5
-
946113225000 HOLLOW SCREW CPL.HOLLOW SCREW CPL.
-
100912050163 AH SCREW DIN0912-M 5X16AH SCREW DIN0912-M 5X16
-
110025060166 HH COLLAR SCREW M6X16HH COLLAR SCREW M6X16
-
120025060406 HH COLLAR SCREW M6X40HH COLLAR SCREW M6X40
-
130770080019 O-RING 8,00X1,00 FORMULAO-RING 8,00X1,00 FORMULA
-
1445119050000 BLEEDER INJECTION-SET 50-65BLEEDER INJECTION-SET 50-65
