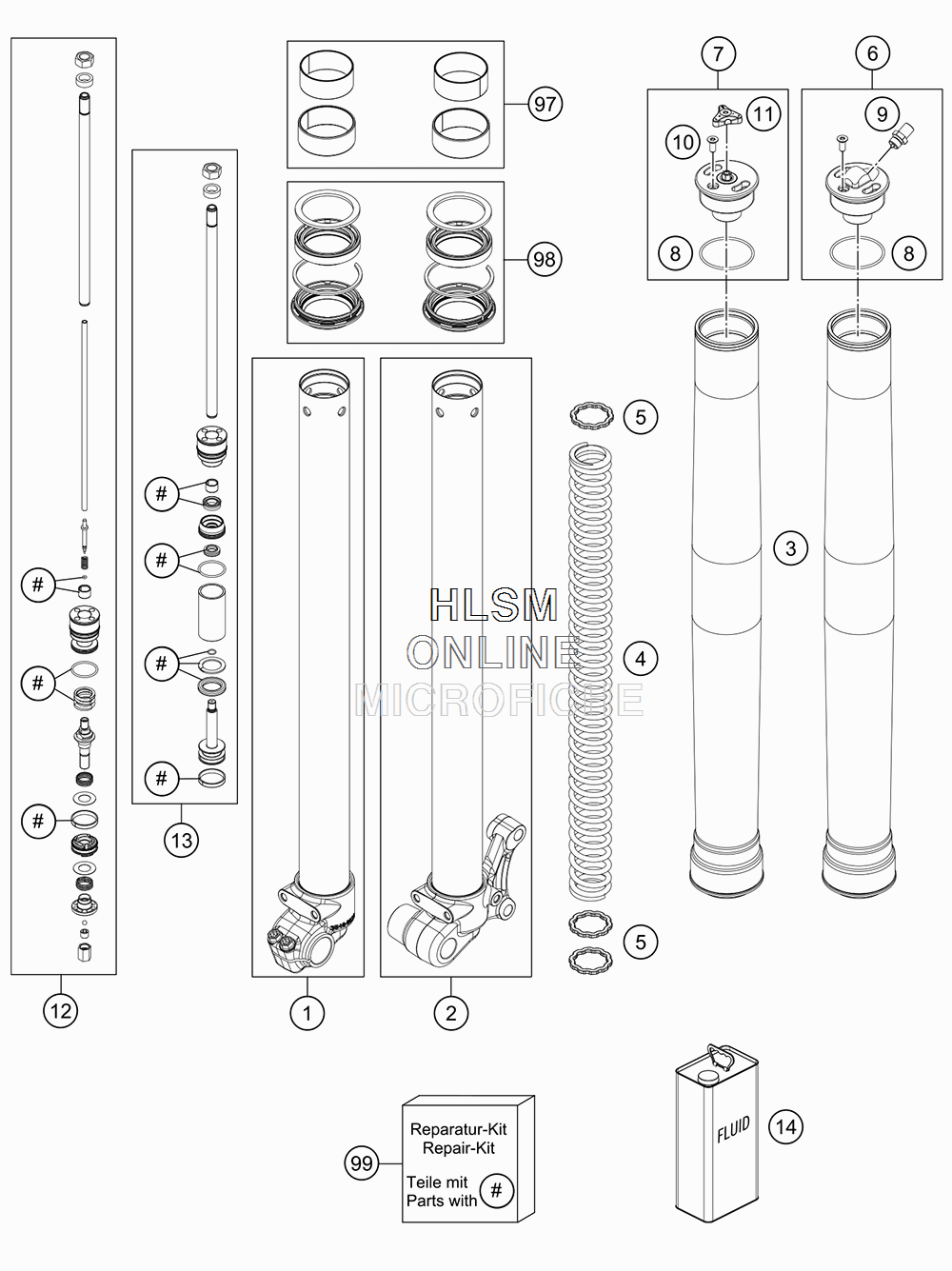

FRONT FORK DISASSEMBLED для Ktm 50 SX - 2017 года выпуска
-
№АртикулНазвание
-
135480455S3 AXLE CLAMP R/S CPL. W . TUBEAXLE CLAMP R/S CPL. W . TUBE
-
235480456S2 AXLE CLAMP L/S CPL. W . TUBEAXLE CLAMP L/S CPL. W . TUBE
-
335480564 OUTER TUBE L=465OUTER TUBE L=465
-
495010051S SPRING 2.0N/MM SET D=3.1MMSPRING 2.0N/MM SET D=3.1MM
-
535480497 WASHER 22X30X2.5WASHER 22X30X2.5
-
635480548S SCREW CAP M38X1,5 AIR CPL.SCREW CAP M38X1,5 AIR CPL.
-
735480507S1 SCREW CAP M38X1,5 AIR REBOUNDSCREW CAP M38X1,5 AIR REBOUND
-
846180581 O-RING 35X1.5 NBR70O-RING 35X1.5 NBR70
-
946180662 VALVE M8X1 SW10 18 NI RVALVE M8X1 SW10 18 NI R
-
10600003 COUNTER SUNK SCREW M4X10 TORXCOUNTER SUNK SCREW M4X10 TORX
-
1148601118S ADJUSTER REB. RED CPL.ADJUSTER REB. RED CPL.
-
1235480551S2 PISTON ROD SX 50 CPL. RIGHTPISTON ROD SX 50 CPL. RIGHT
-
1335480551S3 PISTON ROD SX 50 CPL. LEFTPISTON ROD SX 50 CPL. LEFT
-
1448601166S1 FORK OIL SAE4 5LFORK OIL SAE4 5L
-
97RP10006 BUSHING KIT 35MMBUSHING KIT 35MM
-
98RP10007 GASKET KIT 35MM REDGASKET KIT 35MM RED
-
99RP10008 REPAIR KIT 50+65SX AIRREPAIR KIT 50+65SX AIR
