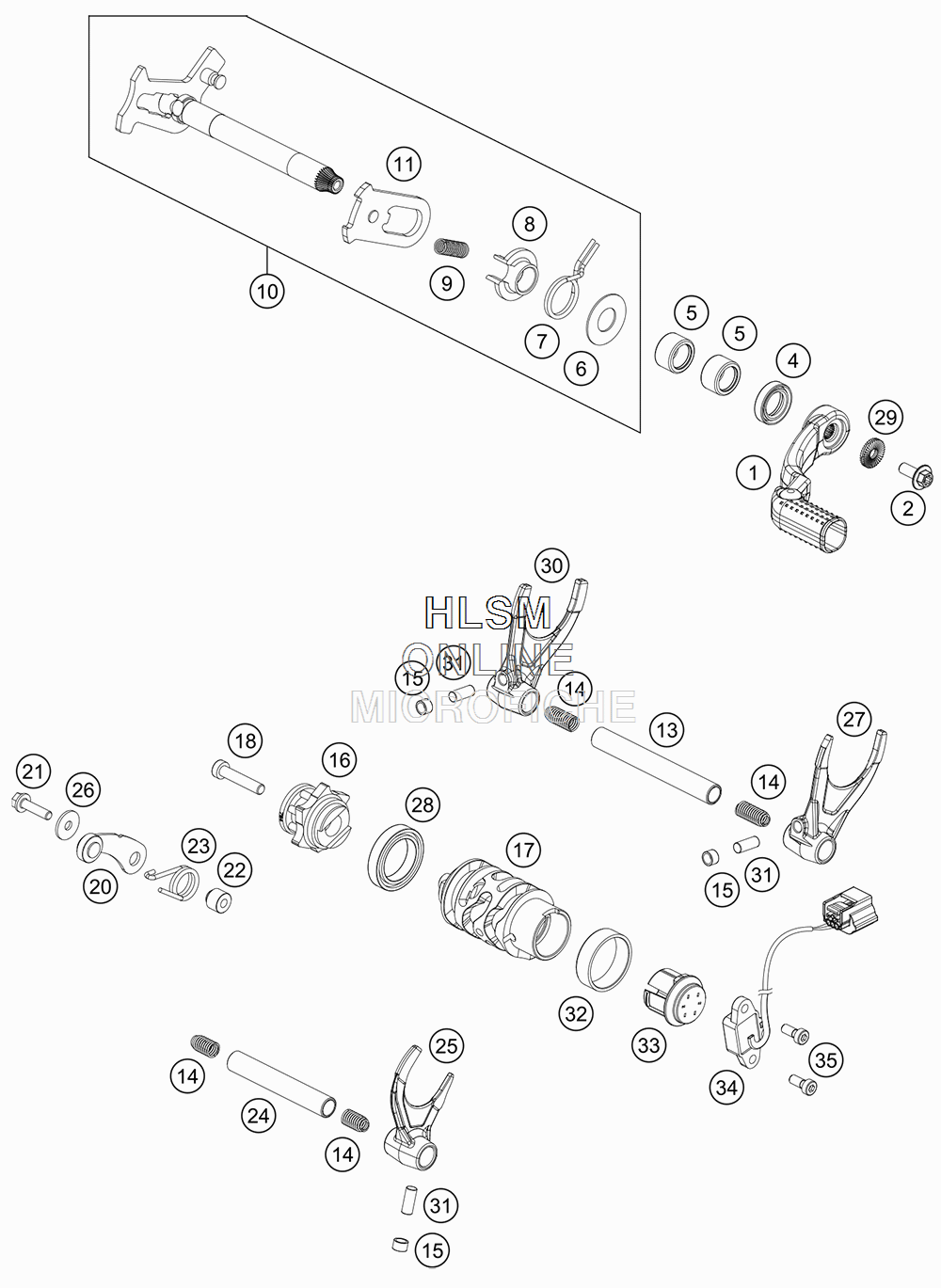

SHIFTING MECHANSIM для Ktm 500 EXC-F - 2017 года выпуска
-
№АртикулНазвание
-
179434031100 SHIFT LEVER CPL.SHIFT LEVER CPL.
-
20024060156S HH COLLAR SCREW M6X15 TORX30HH COLLAR SCREW M6X15 TORX30
-
40760142460 SHAFT SEAL RING 14X24X6 BSHAFT SEAL RING 14X24X6 B
-
554632095000 NEEDLE BEAR.HK 1412 14X20X12NEEDLE BEAR.HK 1412 14X20X12
-
654634050000 STOP DISK 14X30X1STOP DISK 14X30X1
-
754634014100 RETURN SPRING 2,2MMRETURN SPRING 2,2MM
-
854634020000 SPRING GUIDESPRING GUIDE
-
956534013100 TENSIONING SPRING 0,8MMTENSIONING SPRING 0,8MM
-
1079434005133 SHIFT SHAFT CPL.SHIFT SHAFT CPL.
-
1154634108044 SLIDING PLATESLIDING PLATE
-
1379434020000 GEAR SHIFT RAIL 11,8X91,1MMGEAR SHIFT RAIL 11,8X91,1MM
-
1458038023200 PRESSURE SPRING 0,9MMPRESSURE SPRING 0,9MM
-
1550334018100 SHIFTING ROLLER 6X8X5,2SHIFTING ROLLER 6X8X5,2
-
1679434015000 SELECTOR INTERLOCK MECHAN. CPLSELECTOR INTERLOCK MECHAN. CPL
-
1779434512200 SHIFT DRUM 6 GEARSHIFT DRUM 6 GEAR
-
180012060303 AH SCREW DIN6912 M6X30 8.8AH SCREW DIN6912 M6X30 8.8
-
2078134024044 LOCKING LEVER CPL.LOCKING LEVER CPL.
-
210025050206 HH COLLAR SCREW M5X20HH COLLAR SCREW M5X20
-
2254634052300 SLEEVE FOR LOCKING LEVERSLEEVE FOR LOCKING LEVER
-
2360034023000 ARRESTING LEVER SPRINGARRESTING LEVER SPRING
-
2479434019000 GEAR SHIFT RAIL 11,8X74,5MMGEAR SHIFT RAIL 11,8X74,5MM
-
2579434001100 SHIFTING FORK 5TH-6TH GEARSHIFTING FORK 5TH-6TH GEAR
-
260021050003 WASHER DIN9021-A 5,3WASHER DIN9021-A 5,3
-
2779434002100 SHIFTING FORK 2ND-4TH GEARSHIFTING FORK 2ND-4TH GEAR
-
280625618050 BALL BEARING 61805 C3BALL BEARING 61805 C3
-
2950233041500 PAIR NORDLOCK WASHER M6PAIR NORDLOCK WASHER M6
-
3079434003100 SHIFTING FORK 1ST-3RD GEARSHIFTING FORK 1ST-3RD GEAR
-
310402061480 NEEDLE ROLLER DIN5402 6X14,8NEEDLE ROLLER DIN5402 6X14,8
-
3279234012010 FRICTION BEARING CONTROLLERFRICTION BEARING CONTROLLER
-
3379234012020 MAGNET HOLDER CPL.MAGNET HOLDER CPL.
-
3479211023000 GEAR SENSORGEAR SENSOR
-
350984050123S CYLIND. SCR. DIN6912 M5X12 8.8CYLIND. SCR. DIN6912 M5X12 8.8
