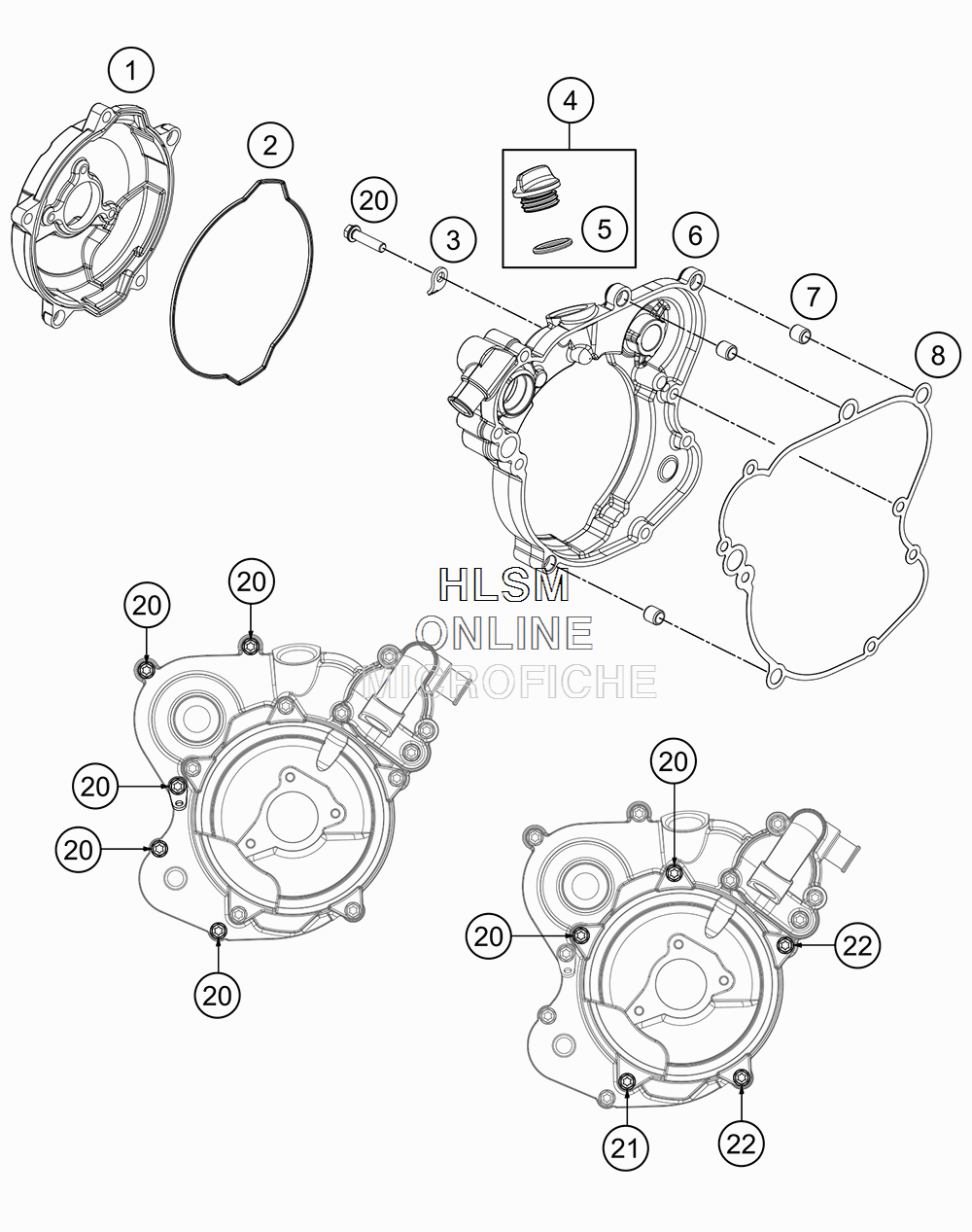

CLUTCH COVER для Ktm 65 SX - 2017 года выпуска
-
№АртикулНазвание
-
146230026000 CLUTCH COVER OUTSIDECLUTCH COVER OUTSIDE
-
246230027000 GASKET - CLUTCH OUTER COVERGASKET - CLUTCH OUTER COVER
-
351005074000 RETAINING PLATERETAINING PLATE
-
479430020033 OIL FILLER CAP M24X3 WITH O-RINGOIL FILLER CAP M24X3 WITH O-RING
-
50770191015 O-RING 19,00X3,00 NBRO-RING 19,00X3,00 NBR
-
646330001000 INNER CLUTCH COVERINNER CLUTCH COVER
-
749030090000 DOWEL 9,8 X 7 X 10DOWEL 9,8 X 7 X 10
-
846230025100 GASKET - CLUTCH INNER COVERGASKET - CLUTCH INNER COVER
-
200025060256 HH COLLAR SCREW M6X25HH COLLAR SCREW M6X25
-
210025060206 HH COLLAR SCREW M6X20HH COLLAR SCREW M6X20
-
220025060556 HH COLLAR SCREW M6X55HH COLLAR SCREW M6X55
