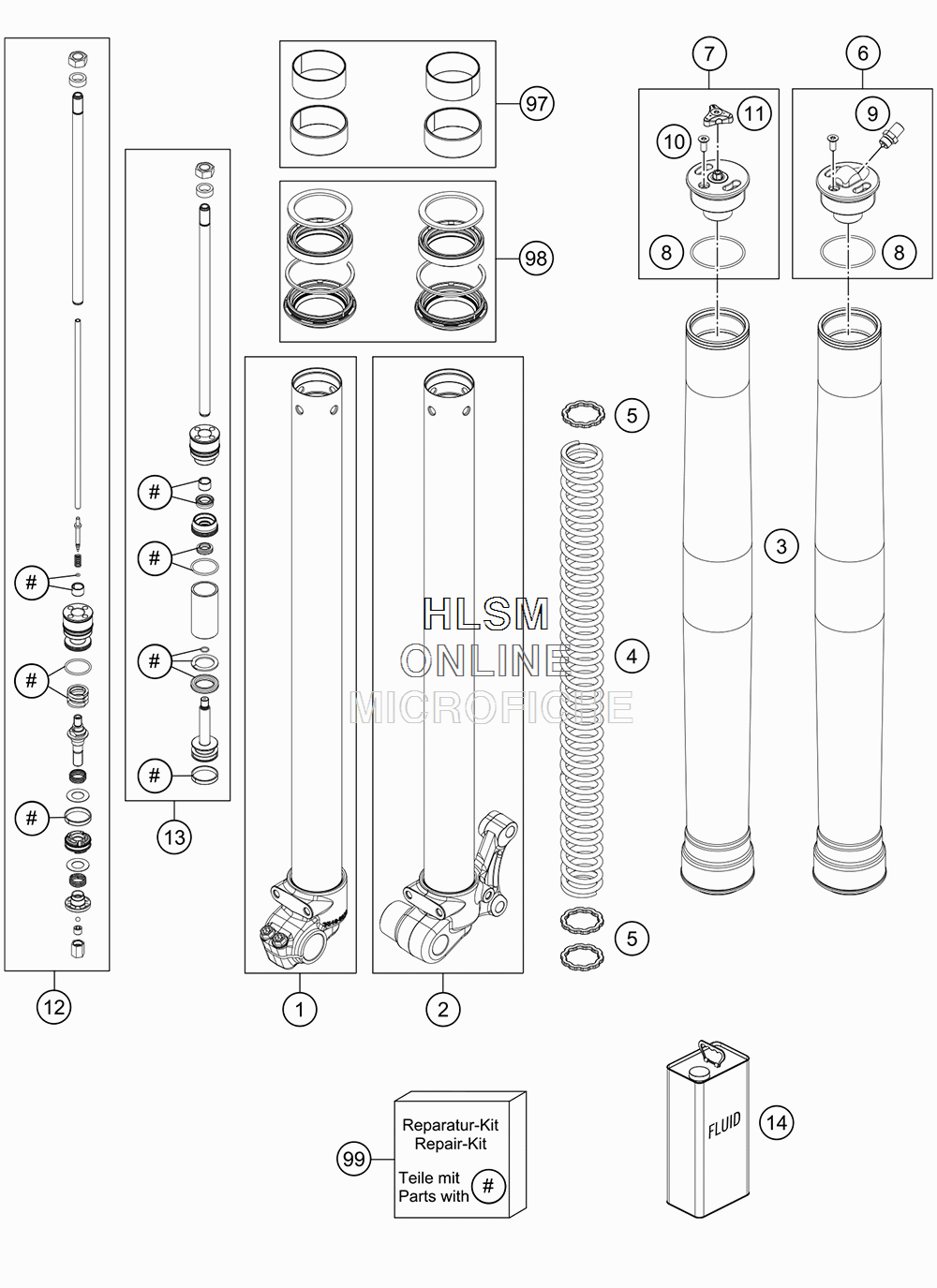

FRONT FORK DISASSEMBLED для Ktm 65 SX - 2017 года выпуска
-
№АртикулНазвание
-
135480455S4 AXLE CLAMP KTM 65SX R/S. CPL.AXLE CLAMP KTM 65SX R/S. CPL.
-
235480466S3 AXLE CLAMP KTM 65SX L/S CPL.AXLE CLAMP KTM 65SX L/S CPL.
-
335480564 OUTER TUBE L=465OUTER TUBE L=465
-
495010044S SPRING 2,8N/MM D3,6 SETSPRING 2,8N/MM D3,6 SET
-
535480497 WASHER 22X30X2.5WASHER 22X30X2.5
-
635480548S SCREW CAP M38X1,5 AIR CPL.SCREW CAP M38X1,5 AIR CPL.
-
735480507S1 SCREW CAP M38X1,5 AIR REBOUNDSCREW CAP M38X1,5 AIR REBOUND
-
846180581 O-RING 35X1.5 NBR70O-RING 35X1.5 NBR70
-
946180662 V AL VE M8X1 SW10 18 NI RV AL VE M8X1 SW10 18 NI R
-
10600003 COUNTER SUNK SCREW M4X10 TORXCOUNTER SUNK SCREW M4X10 TORX
-
1148601118S ADJUSTER REB. RED CPL.ADJUSTER REB. RED CPL.
-
1235480551S4 PISTON ROD SX 65 CPL. RIGHTPISTON ROD SX 65 CPL. RIGHT
-
1335480551S5 PISTON ROD SX 65 CPL. LEFTPISTON ROD SX 65 CPL. LEFT
-
1448601166S1 FORK OIL SAE4 5LFORK OIL SAE4 5L
-
97RP10006 BUSHING KIT 35MMBUSHING KIT 35MM
-
98RP10007 GASKET KIT 35MM REDGASKET KIT 35MM RED
-
99RP10008 REP AIR KIT 50+65SX AIR 2017REP AIR KIT 50+65SX AIR 2017
