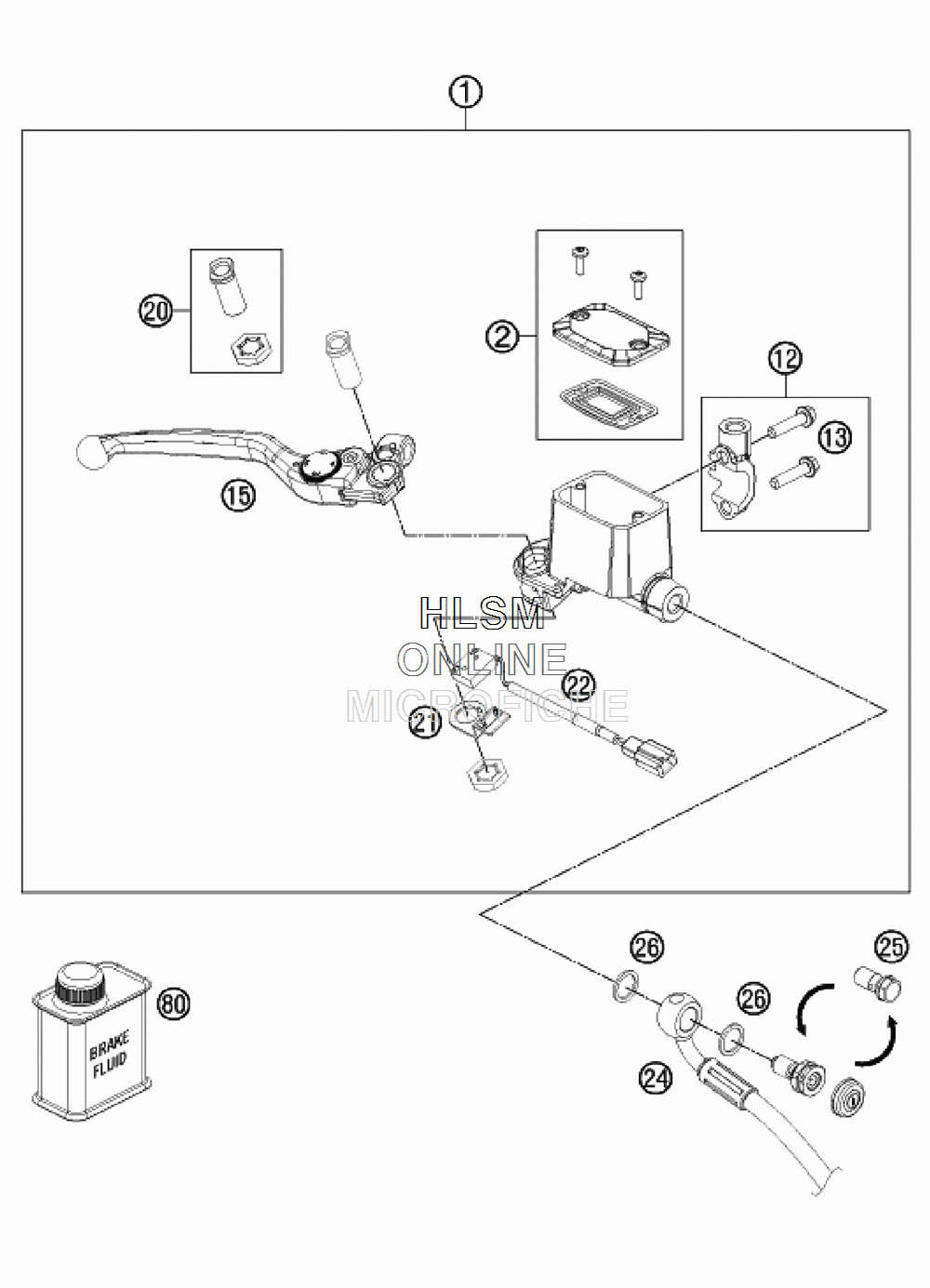

HAND BRAKE CYLINDER для Ktm 690 DUKE ORANGE - 2017 года выпуска
-
№АртикулНазвание
-
176013001033 HAND BRAKE CYLINDER ASSYHAND BRAKE CYLINDER ASSY
-
276013012000 COVER HAND BRAKE CYLINDER CPL.COVER HAND BRAKE CYLINDER CPL.
-
1276013005000 CLAMP CPL.CLAMP CPL.
-
130025060256 HH COLLAR SCREW M6X25HH COLLAR SCREW M6X25
-
1558713002100 HAND BRAKE LEVER LOOSE ADJ.HAND BRAKE LEVER LOOSE ADJ.
-
2076013006000 LEVER SCREW CPL.LEVER SCREW CPL.
-
2176011040000 BRACKET F. BRAKE LIGHT SWITCHBRACKET F. BRAKE LIGHT SWITCH
-
2276011050000 BRAKE LIGHT SWITCH FRONTBRAKE LIGHT SWITCH FRONT
-
2476042002000 BRAKE PIPEBRAKE PIPE
-
2562113020100 HOLL. SCREW M10X1X19.5HOLL. SCREW M10X1X19.5
-
260603100141 COPPER GASKET DIN7603-10X14X1COPPER GASKET DIN7603-10X14X1
-
8000062030000 BRAKE FLUID DOT5.1 0,25LBRAKE FLUID DOT5.1 0,25L
