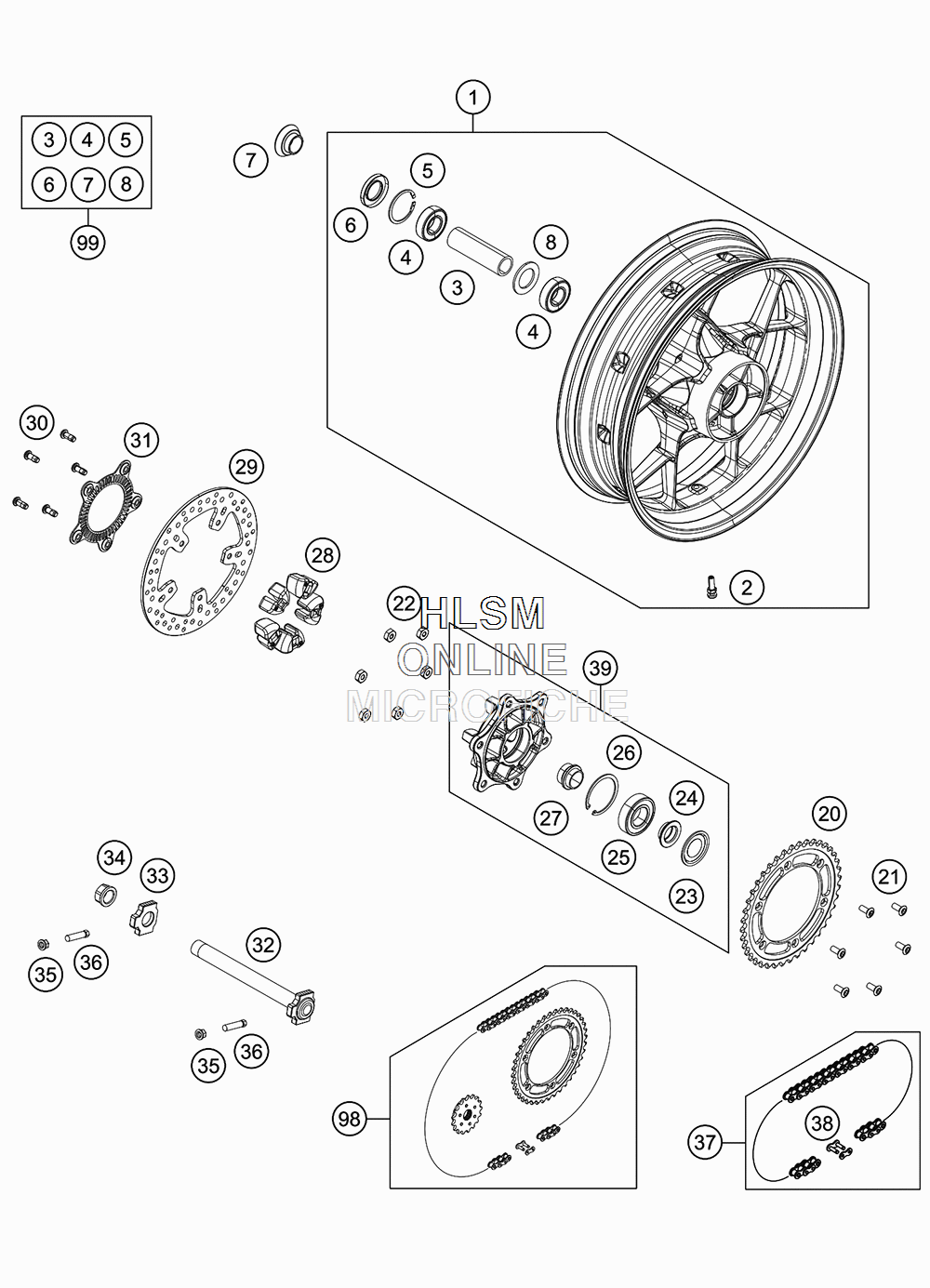

REAR WHEEL для Ktm 690 DUKE ORANGE - 2017 года выпуска
-
№АртикулНазвание
-
17601000114430 REAR WHEEL CPL. 5X17" BLACKREAR WHEEL CPL. 5X17" BLACK
-
258709076000 VALVE CPL. BREMBO DUKEVALVE CPL. BREMBO DUKE
-
375310011000 BEARING SPACER TUBE L=106MMBEARING SPACER TUBE L=106MM
-
40625062052 GR.BALL BEAR. 6205-2RSHC3HMTF7GR.BALL BEAR. 6205-2RSHC3HMTF7
-
50472052200 CIRCLIP DIN0472-52X2CIRCLIP DIN0472-52X2
-
60760305271 SHAFT SEAL RING 30X52X7SHAFT SEAL RING 30X52X7
-
760110013000 SPACER BUSH. REAR WHEEL R/SSPACER BUSH. REAR WHEEL R/S
-
860010015000 SPACER RINGSPACER RING
-
2075010051040 SPROCKET STEALTH 40TSPROCKET STEALTH 40T
-
210019080206S FLAT HEAD SCREW M. ISA45 M8X20FLAT HEAD SCREW M. ISA45 M8X20
-
2276010057000 HEX NUT M8 WS17HEX NUT M8 WS17
-
2376010020000 NILOS RING 6206AVNILOS RING 6206AV
-
2476010012000 OUTER DISTANCE BUSHINGOUTER DISTANCE BUSHING
-
250625062065 BALL BEARING 6206 TVH C4BALL BEARING 6206 TVH C4
-
260472062200 STEERING INSERT CIRCLIPSTEERING INSERT CIRCLIP
-
2776010014000 INNER DISTANCE BUSHINGINNER DISTANCE BUSHING
-
2876010059100 DAMPING RUBBERDAMPING RUBBER
-
2976010060000 BRAKE DISC REAR 240MMBRAKE DISC REAR 240MM
-
3076009062000 SPECIAL SCREW M8X25 SS TX40SPECIAL SCREW M8X25 SS TX40
-
3176042021000 SENSORGEAR REARSENSORGEAR REAR
-
3275010085144 WHEEL SPINDLE REAR CPL.WHEEL SPINDLE REAR CPL.
-
3360010084000 CHAIN TENSIONER R/S LC8CHAIN TENSIONER R/S LC8
-
3460010086000 COLLAR NUT WH. SPINDLE REAR 03COLLAR NUT WH. SPINDLE REAR 03
-
3558414030000 HH COLLAR NUT M10X1,25HH COLLAR NUT M10X1,25
-
3650304040100 SCREW M10X1,25X50 WS=10SCREW M10X1,25X50 WS=10
-
3778010167118 CHAIN DID 118 LINKSCHAIN DID 118 LINKS
-
3878010166100 RIVETING LINK FOR 78010167118RIVETING LINK FOR 78010167118
-
397601005004433 SPROCKET SUPPORT CPL.SPROCKET SUPPORT CPL.
-
9800050002025 DRIVETRAIN KIT 690DUKE 16T/40TDRIVETRAIN KIT 690DUKE 16T/40T
-
9976010015000 REAR WHEEL REPAIR KIT DUKEREAR WHEEL REPAIR KIT DUKE
