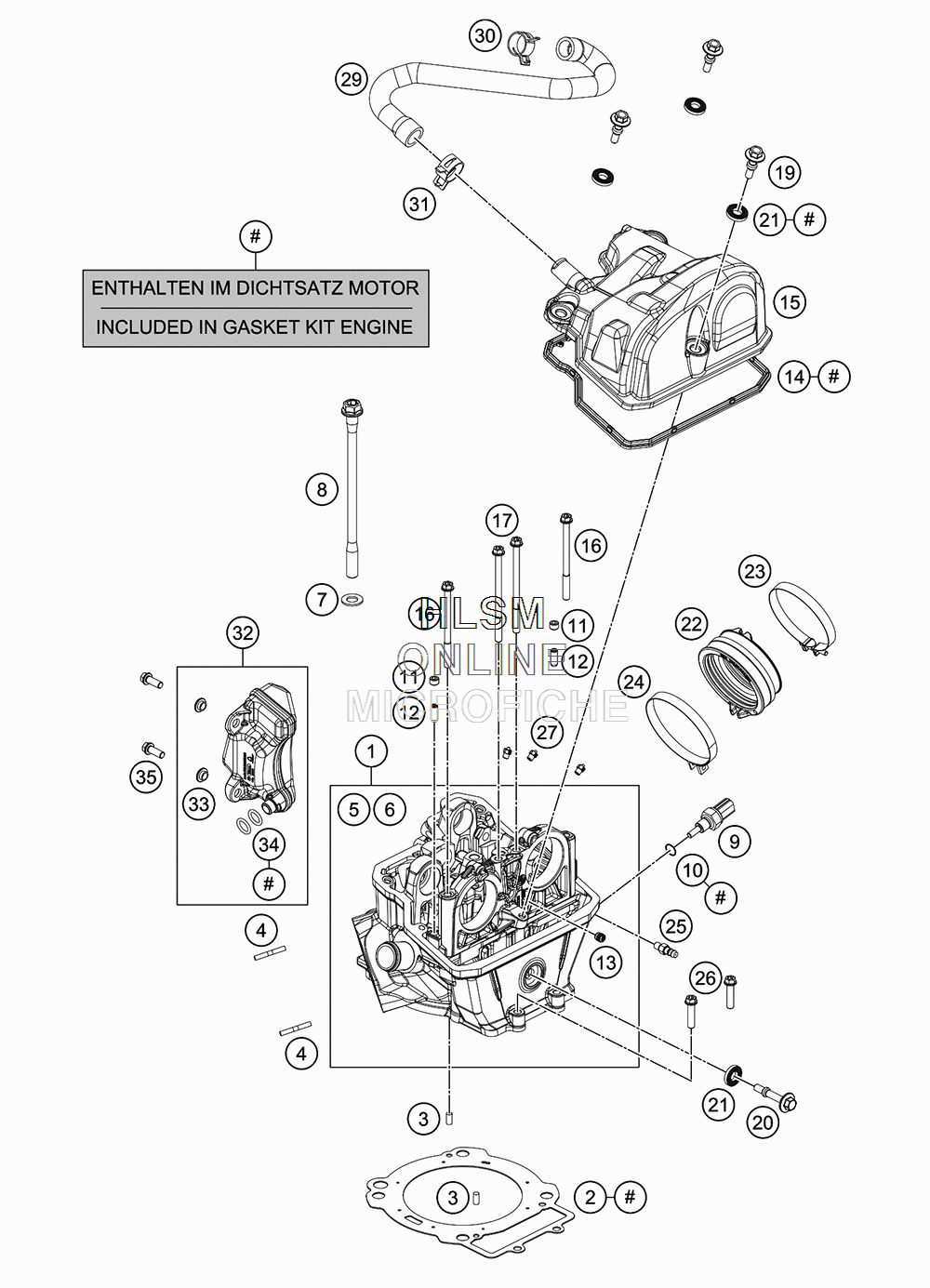

CYLINDER HEAD для Ktm 690 DUKE WHITE - 2017 года выпуска
-
№АртикулНазвание
-
17663602004424 CYLINDER HEADCYLINDER HEAD
-
276630036000 CYLINDER HEAD GASKET Ш105CYLINDER HEAD GASKET Ш105
-
30474050100 GROOVED PIN DIN1474 5X10GROOVED PIN DIN1474 5X10
-
40835080256 STUD DIN0835-M 8X25 10.9STUD DIN0835-M 8X25 10.9
-
576636026001 VALVE GUIDE 6MMVALVE GUIDE 6MM
-
661236025001 VALVE GIUDE INTAKE 6MMVALVE GIUDE INTAKE 6MM
-
760036078050 SHIM 10,2X19X1,5MMSHIM 10,2X19X1,5MM
-
875036079000 CYLINDERHEAD SCREW M10X168WS14CYLINDERHEAD SCREW M10X168WS14
-
979435047000 TEMPERATUR SENSOR WATERTEMPERATUR SENSOR WATER
-
100770100020 O-RING 10,00X2,00 SILCONEO-RING 10,00X2,00 SILCONE
-
110913080060S THREAD PIN DIN913-M8X6 PRE30THREAD PIN DIN913-M8X6 PRE30
-
120979060160 PIN DIN7979 6X16PIN DIN7979 6X16
-
1359030296000 SCREW PLUGSCREW PLUG
-
1476636053000 VALVE COVER GASKETVALVE COVER GASKET
-
157663605200033 VALVE COVERVALVE COVER
-
160025060806 HH COLLAR SCREW M6X80HH COLLAR SCREW M6X80
-
170025060906 HH COLLAR SCREW M6X90HH COLLAR SCREW M6X90
-
1978036054100 VALVE COVER SCREWVALVE COVER SCREW
-
2075036055000 VALVE COVER SCREWVALVE COVER SCREW
-
2175036052010 DECOUPLING ELEMENTDECOUPLING ELEMENT
-
2276636044000 RUBBER SLEEVE INTAKE FLANGERUBBER SLEEVE INTAKE FLANGE
-
2375036047000 HOSE CLAMP GEMI 70MMHOSE CLAMP GEMI 70MM
-
2461336048000 HOSE CLAMP GEMI 75HOSE CLAMP GEMI 75
-
2560036023200 VACUUM CONNECTION M6/0.75MMVACUUM CONNECTION M6/0.75MM
-
260025060256 HH COLLAR SCREW M6X25HH COLLAR SCREW M6X25
-
2760030063050 OIL JET 50OIL JET 50
-
2976030084100 ENGINE EXHAUST CYLINDERHEADENGINE EXHAUST CYLINDERHEAD
-
3000049200121 CLAMP STD DN20CLAMP STD DN20
-
3100049210121 CLAMP 21X12 STD-DESCLAMP 21X12 STD-DES
-
3276636065000 RESONATOR ASSY.RESONATOR ASSY.
-
3369004060050 BUSHING CHAIN GUARDBUSHING CHAIN GUARD
-
340770116241 O-RING 11,3 X2,4 SILICONO-RING 11,3 X2,4 SILICON
-
350025060126 HH COLLAR SCREW M6X12HH COLLAR SCREW M6X12
