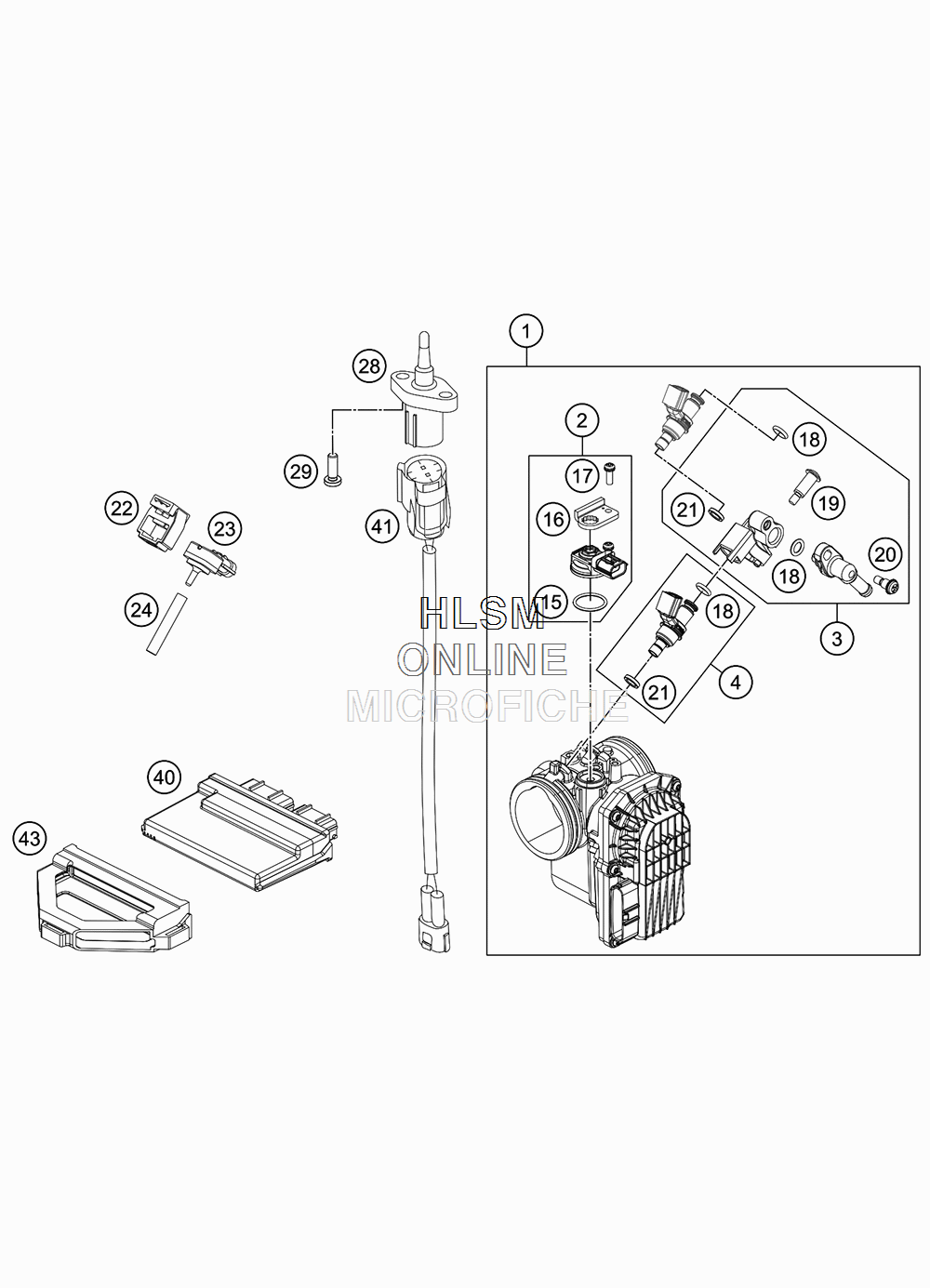

THROTTLE BODY для Ktm 690 DUKE WHITE - 2017 года выпуска
-
№АртикулНазвание
-
176641001000 THROTTLE BODYTHROTTLE BODY
-
275041085044 MAP SENSOR CPL.MAP SENSOR CPL.
-
376041013044 FUEL PIPE CONNECTOR CPL.FUEL PIPE CONNECTOR CPL.
-
476041023044 FUEL INJECTOR ASSY SETFUEL INJECTOR ASSY SET
-
1575041085010 O-RINGO-RING
-
1675041085020 PLATE, STAYPLATE, STAY
-
1775041085030 SCREW WASHERSCREW WASHER
-
1875041023020 O-RING 7,2X2,2O-RING 7,2X2,2
-
1975041013060 SCREW SHOULDERSCREW SHOULDER
-
2075041013010 SCREW SHOULDERSCREW SHOULDER
-
2175041023010 SEAL RINGSEAL RING
-
2261041085150 RUBBER SUPP. PRESSURE SENS. 06RUBBER SUPP. PRESSURE SENS. 06
-
2361041085100 PRESSURE SENSORPRESSURE SENSOR
-
2460031098001 HOSE 3,2X8,5 PER METERHOSE 3,2X8,5 PER METER
-
2861041080000 AMBIENT-AIR TEMPERATURE SENSORAMBIENT-AIR TEMPERATURE SENSOR
-
290018050163 INT. TORX OVAL HEAD M5X16INT. TORX OVAL HEAD M5X16
-
4061341031100 ECUECU
-
4176011048000 AMBIENT-AIR TEMP. SENSOR CABLEAMBIENT-AIR TEMP. SENSOR CABLE
-
4360341031050 ECU RUBBER BRACKETECU RUBBER BRACKET
