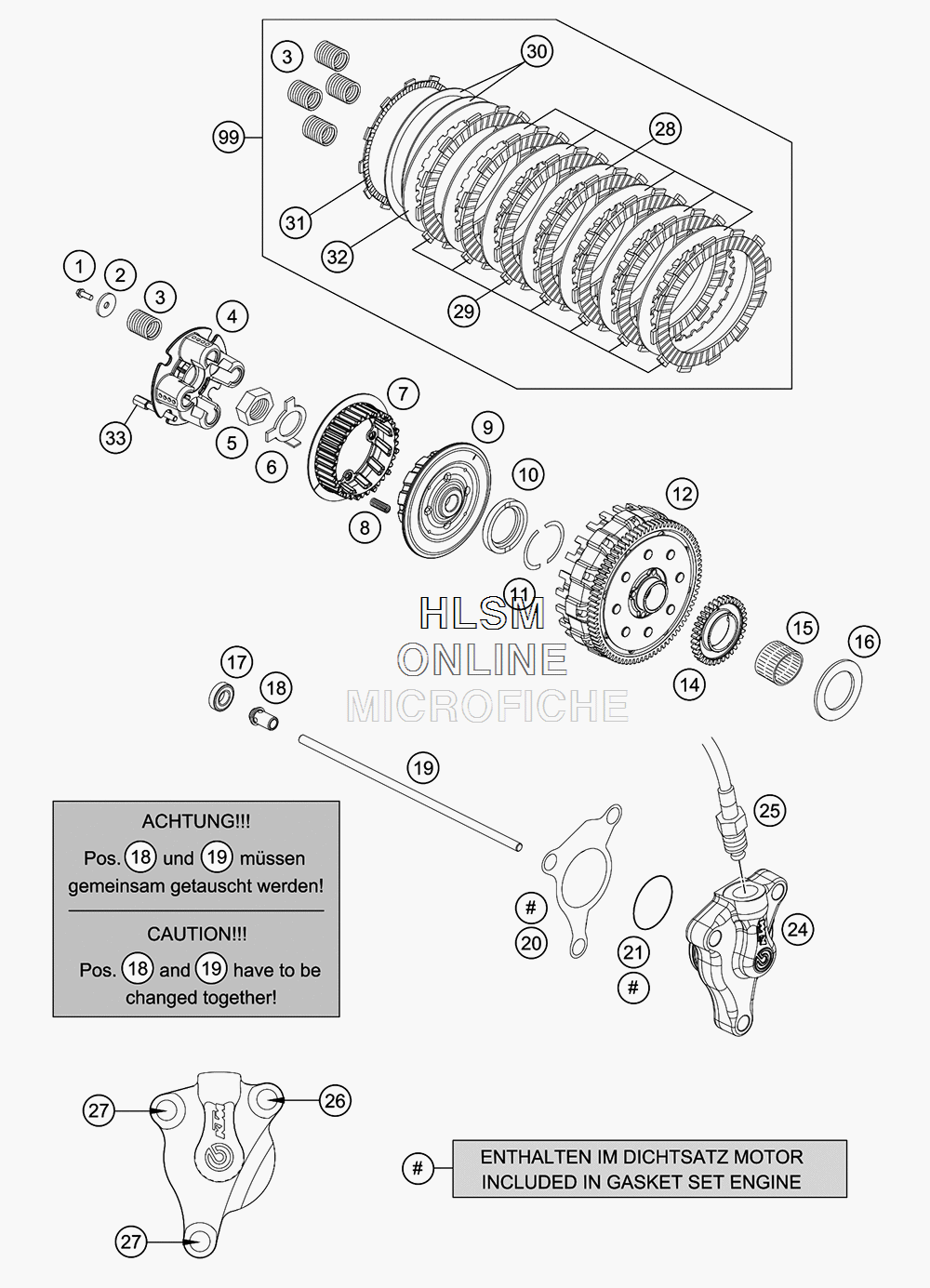

CLUTCH для Ktm 690 ENDURO R - 2017 года выпуска
-
№АртикулНазвание
-
10025050256 HH COLLAR SCREW M5X25 ISA30HH COLLAR SCREW M5X25 ISA30
-
275032006000 SPRING RINGSPRING RING
-
358532080001 CLUTCH SPRING 3,0X33,5CLUTCH SPRING 3,0X33,5
-
475032003000 PRESSURE CAPPRESSURE CAP
-
560036073150 HEXAGON NUT M20X1,5 H=6MMHEXAGON NUT M20X1,5 H=6MM
-
675032018000 LOCK WASHERLOCK WASHER
-
775032002002 INNER CLUTCH HUB MOVABLEINNER CLUTCH HUB MOVABLE
-
875032033000 CLUTCH RELEASE SPRINGCLUTCH RELEASE SPRING
-
975032002001 INNER CLUTCH HUB FIXEDINNER CLUTCH HUB FIXED
-
1075032009000 STEPPED WASHERSTEPPED WASHER
-
1175032007000 HALF-WASHERHALF-WASHER
-
1275032001144 CLUTCH CAGE CPL. 79TCLUTCH CAGE CPL. 79T
-
1475032050001 OIL PUMP DRIVE WHEELOIL PUMP DRIVE WHEEL
-
1556532095000 NEEDLE BEARING K26X30X22ZW.KSENEEDLE BEARING K26X30X22ZW.KSE
-
1675032017000 WASHER 26X40X2WASHER 26X40X2
-
170625060016 GROOV.BALL BEAR. 6001.2RSR C3GROOV.BALL BEAR. 6001.2RSR C3
-
1875032055100 PRESSURE BOLTPRESSURE BOLT
-
1975032054200 PUSH RODPUSH ROD
-
2059032065100 GASKET F. OUTPUT CYLINDERGASKET F. OUTPUT CYLINDER
-
210770300015 O-RING 30,00X1,50 NBR 70O-RING 30,00X1,50 NBR 70
-
2479432061044 OUTPUT CYL. DOT KPL. 27MMOUTPUT CYL. DOT KPL. 27MM
-
2554732063100 CLUTCH PIPE 250/300CLUTCH PIPE 250/300
-
260025060356 HH COLLAR SCREW M6X35HH COLLAR SCREW M6X35
-
270025060206 HH COLLAR SCREW M6X20HH COLLAR SCREW M6X20
-
2875032112000 STEEL DISK 1,5 MMSTEEL DISK 1,5 MM
-
2958332011300 LINING DISK 2,7MM FCCLINING DISK 2,7MM FCC
-
3058632016000 RONDELLA ANTIVIBRAZIONE SETRONDELLA ANTIVIBRAZIONE SET
-
3175032111100 LINING DISC CUT OUTLINING DISC CUT OUT
-
3275032112100 STEEL DISK 1,5MM NITRIDEDSTEEL DISK 1,5MM NITRIDED
-
3375032032000 HOLDING SCREW GMB-M5X35HOLDING SCREW GMB-M5X35
-
9975032011110 CLUTCH KIT 690 LC4 08-14CLUTCH KIT 690 LC4 08-14
