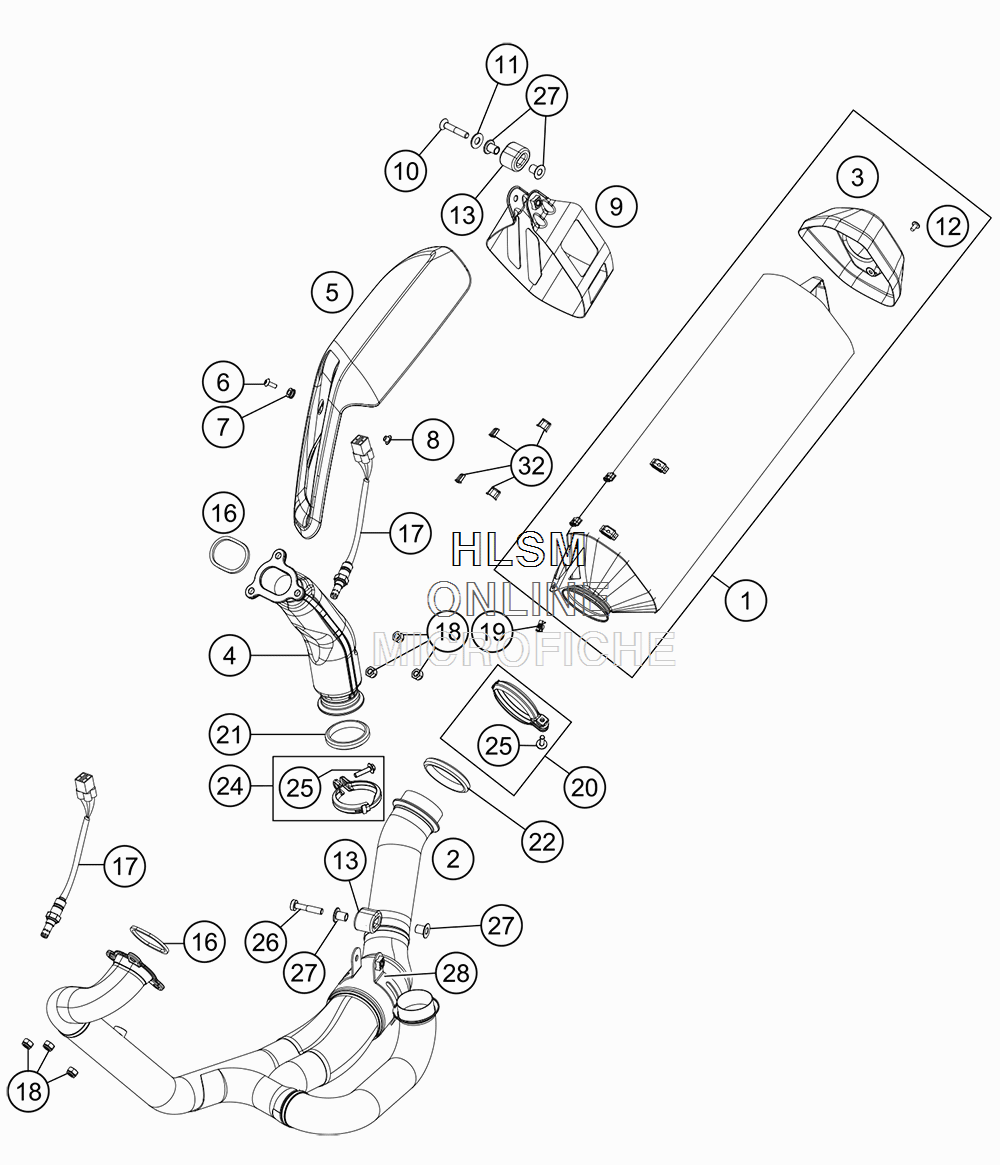

EXHAUST SYSTEM для Ktm 1290 SUPER ADVENTURE S R - 2018 года выпуска
-
№АртикулНазвание
-
160305183000 SILENCER USASILENCER USA
-
260705007100 EXHAUST MANIFOLDEXHAUST MANIFOLD
-
360305083161 ENDCAPENDCAP
-
460305008100 HEADER REAR COMPLETEHEADER REAR COMPLETE
-
56040511100033 HEAT PROTECTION BLACKHEAT PROTECTION BLACK
-
658605083014 SCREW M5X14 TORX 25SCREW M5X14 TORX 25
-
760305083081 SILICON SLEEVESILICON SLEEVE
-
860305083082 SPACER BUSHINGSPACER BUSHING
-
960305083190 CLAMP SILENCERCLAMP SILENCER
-
100019080456 COUNTERSUNK SCREW ISA45 M5X45COUNTERSUNK SCREW ISA45 M5X45
-
1160405069000 SHAPE DISC ALUSHAPE DISC ALU
-
1278105081010 SCREW TORX M5X10SCREW TORX M5X10
-
1361305068000 DAMPING RUBBERDAMPING RUBBER
-
1669005005100 EXHAUST PIPE FLANGE GASKETEXHAUST PIPE FLANGE GASKET
-
1775041090100 LAMBDA SENSORLAMBDA SENSOR
-
1851010086100 SELF LOCKING NUT M 8 CUSELF LOCKING NUT M 8 CU
-
1969008021080 RANGE CHANGE METAL NUT M5RANGE CHANGE METAL NUT M5
-
2061305090000 EXHAUST CLAMP CPL. 60MMEXHAUST CLAMP CPL. 60MM
-
2169005005005 MANIFOLD GASKETMANIFOLD GASKET
-
2261305005005 MANIFOLD GASKET 60MMMANIFOLD GASKET 60MM
-
2469005050000 CLAMP CPL.CLAMP CPL.
-
250024060256 HH COLLAR SCREW M6X25HH COLLAR SCREW M6X25
-
260035080406 AH-COLLAR SCREW M8X40 ISA45AH-COLLAR SCREW M8X40 ISA45
-
2760305069000 BUSHINGBUSHING
-
2860305007015 SHELL EXHAUST PIPE CPL.SHELL EXHAUST PIPE CPL.
-
3261005091000 DAMP. COMPON. SILICONE GREYDAMP. COMPON. SILICONE GREY
