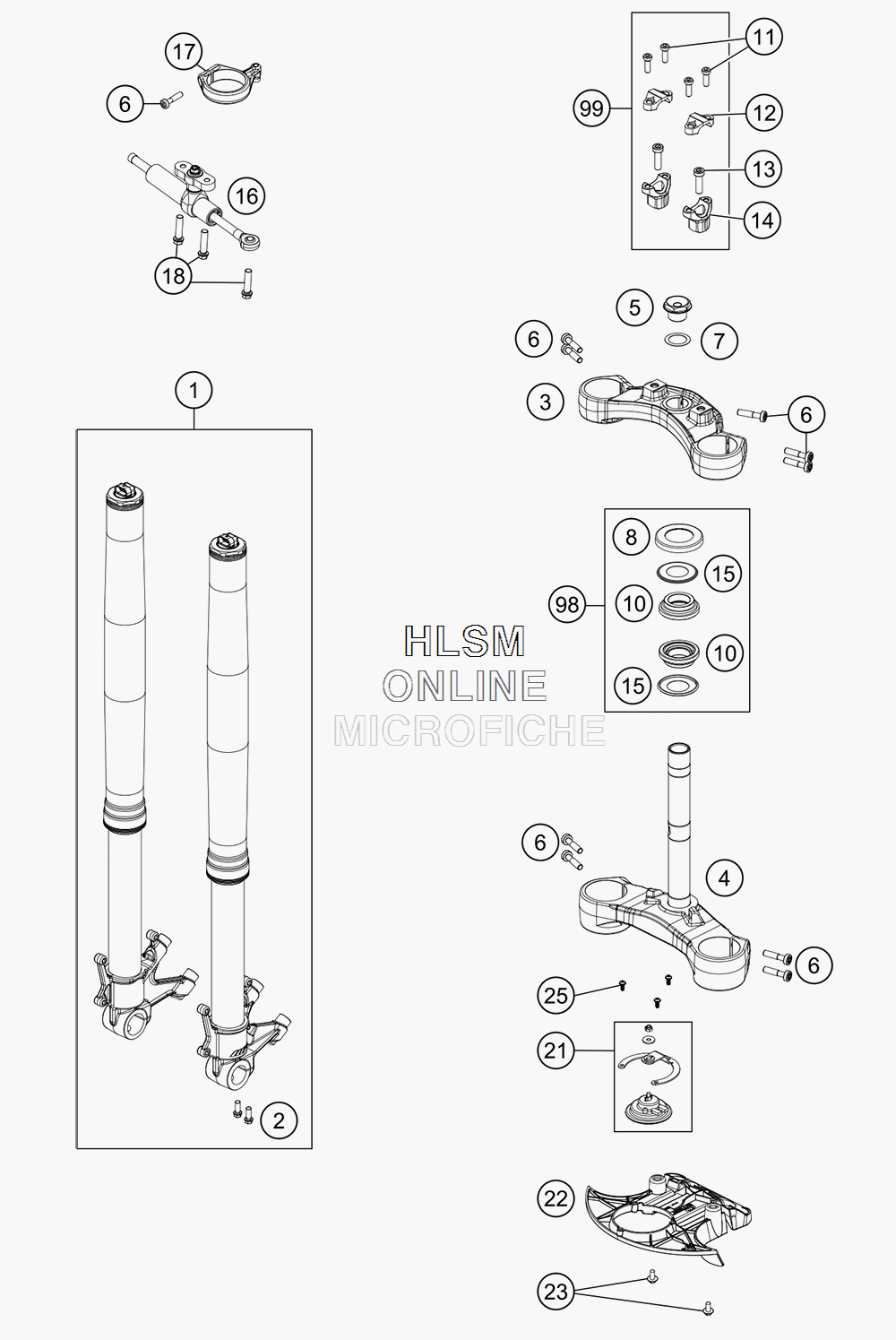

FRONT FORK для Ktm 1290 SUPER ADVENTURE S R - 2018 года выпуска
-
№АртикулНазвание
-
114188Q2501 FORK ADVENTURE-R 2017FORK ADVENTURE-R 2017
-
20025080206S HH COLLAR SCREW M8X20 ISA40HH COLLAR SCREW M8X20 ISA40
-
36070113403233S UPPER TRIPLE CLAMPUPPER TRIPLE CLAMP
-
46070113203233S LOWER TRIPLE CLAMPLOWER TRIPLE CLAMP
-
56900103600001 STEERING HEAD SCREWSTEERING HEAD SCREW
-
60035080356 AH-COLLAR SCREW M8X35 ISA45AH-COLLAR SCREW M8X35 ISA45
-
70988253505 THRUST WASH DIN0988-25X35X0,5THRUST WASH DIN0988-25X35X0,5
-
869001086100 PROT. RING STEER. HEAD BEARINGPROT. RING STEER. HEAD BEARING
-
1069001181000 STEERINGHEAD KPL.17STEERINGHEAD KPL.17
-
110025080256 HH COLLAR SCREW M8X25HH COLLAR SCREW M8X25
-
127720103800030 HANDLEBAR CLAMP 28MMHANDLEBAR CLAMP 28MM
-
130032100356S AH-COLLAR SCREW M10X35 ISA45AH-COLLAR SCREW M10X35 ISA45
-
145940103903730 HANDLEB.SUPP. D=28MM H=37MMHANDLEB.SUPP. D=28MM H=37MM
-
1569001084100 STEARING HEAD GASKETSTEARING HEAD GASKET
-
1616181N53ES STEERING DAMPER CPL.STEERING DAMPER CPL.
-
176031200700033S CLAMP STEERING DAMPERCLAMP STEERING DAMPER
-
180025080256S HH COLLAR SCREW M8X25HH COLLAR SCREW M8X25
-
2160711060033 DIRECT CURRENT HORN COMPLETEDIRECT CURRENT HORN COMPLETE
-
2260308024200 TRIPLE CLAMP-FACEPLATE BELOWTRIPLE CLAMP-FACEPLATE BELOW
-
2383008000015 SPECIAL SCREW M6X15X3SPECIAL SCREW M6X15X3
-
250081050121 SCREW FOR PLASTIC K50X12SCREW FOR PLASTIC K50X12
-
9869001181010 STEARING HEAD REP. KITSTEARING HEAD REP. KIT
-
9900050000927 HANDLEBAR SUPPORT KIT ADV .1190HANDLEBAR SUPPORT KIT ADV .1190
