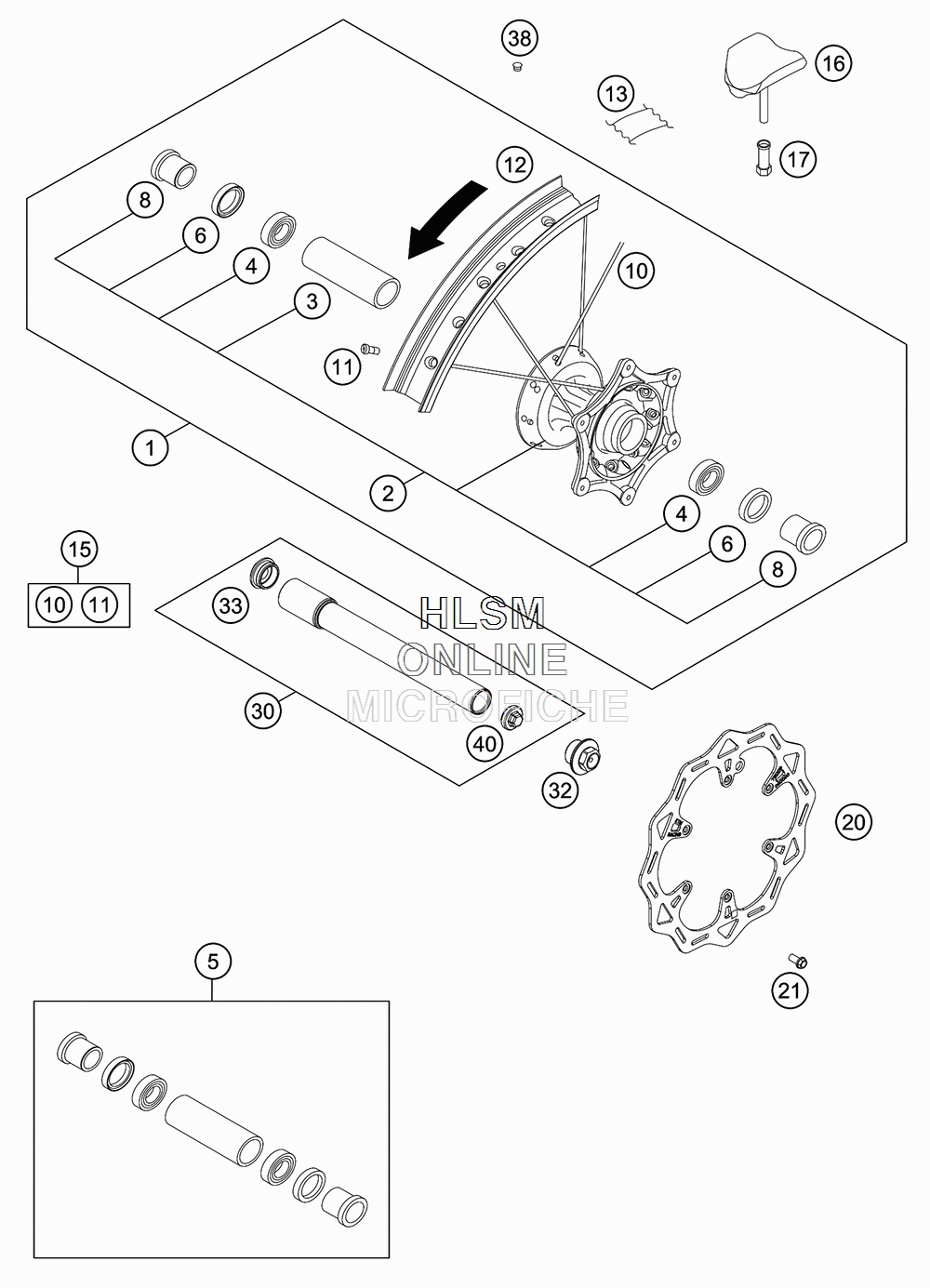

FRONT WHEEL для Ktm 150 XCW - 2018 года выпуска
-
№АртикулНазвание
-
17810900154430 FRONTWHEEL CPL.1,6X21"GIANT 22FRONTWHEEL CPL.1,6X21"GIANT 22
-
277709010144 FRONT WHEEL HUB CPL.FRONT WHEEL HUB CPL.
-
354809011000 BEA.SPACERTUBE 35X2 L=79,4BEA.SPACERTUBE 35X2 L=79,4
-
40625069068 GR.BALL BEAR.6906 DDU2CG23S6NMGR.BALL BEAR.6906 DDU2CG23S6NM
-
577709015000 FRONT WHEEL REP. KIT SX-F USAFRONT WHEEL REP. KIT SX-F USA
-
60760354771 SHAFT SEAL RING 35X47X7 TCSHAFT SEAL RING 35X47X7 TC
-
877709012000 SPACER BUSHING F. FR. WHEELSPACER BUSHING F. FR. WHEEL
-
107710907122630 SPOKE M4,5X226- 21" BLACKSPOKE M4,5X226- 21" BLACK
-
1177109072000 SPOKE NIPPLE M4,5 ALSPOKE NIPPLE M4,5 AL
-
127810907000030 RIM FRONT 1,6X21" BLACKRIM FRONT 1,6X21" BLACK
-
1350309073000 RIM BAND 21"RIM BAND 21"
-
1500050000954 SPOKE KIT FRONT "21" BLACKSPOKE KIT FRONT "21" BLACK
-
1678109090000 RIM LOCK 1,60"RIM LOCK 1,60"
-
1777110090050 NUT FOR WHEEL HOLDERNUT FOR WHEEL HOLDER
-
2079009060000 BRAKE DISC FRONT 260MMBRAKE DISC FRONT 260MM
-
2159009062013 SPECIAL SCREW M6X13 WS=8 10.9SPECIAL SCREW M6X13 WS=8 10.9
-
3077709081033 WHEEL SPIN.FR. CPL. D=22WHEEL SPIN.FR. CPL. D=22
-
3270009082000 AXLESCREW M20X1.5; SW17AXLESCREW M20X1.5; SW17
-
3370009081050 PLUG BUSHING SW17PLUG BUSHING SW17
-
3855003135000 PLUG FOR RIMPLUG FOR RIM
-
407770908107055 AUXILIARY SCREW FRONTAUXILIARY SCREW FRONT
