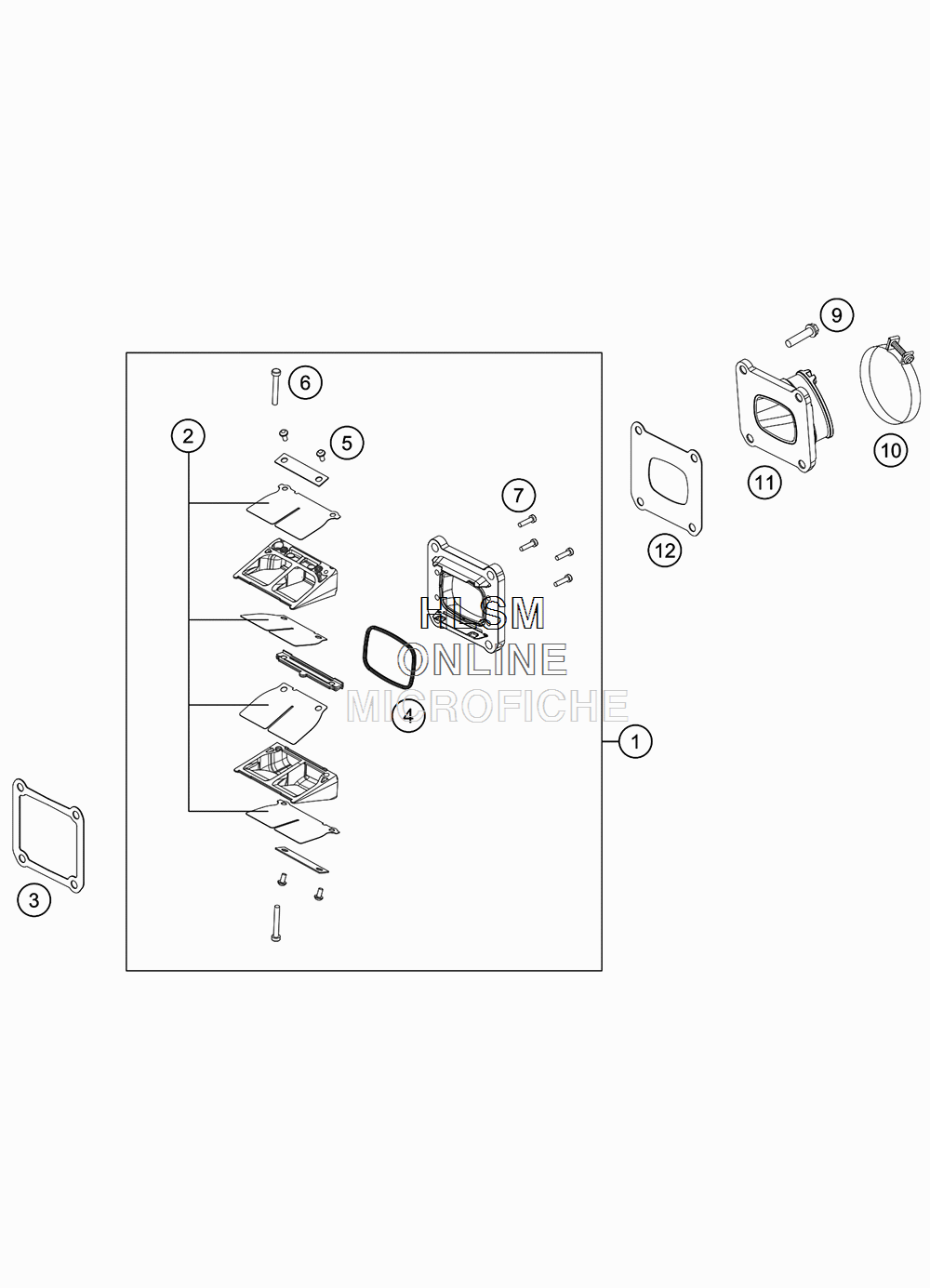

REED VALVE CASE для Ktm 150 XCW - 2018 года выпуска
-
№АртикулНазвание
-
150430151044 REED VALVE CASE CPL.REED VALVE CASE CPL.
-
254830052344 REED VALVE SETREED VALVE SET
-
350430098050 GASKET REED VALVE CASEGASKET REED VALVE CASE
-
454830153050 GASKET SUPPORTING PLATEGASKET SUPPORTING PLATE
-
500810300553 EJOT DELTA PT SCREW 30X5,5EJOT DELTA PT SCREW 30X5,5
-
60081035253 EJOT DELTA PT SCREW 35X25EJOT DELTA PT SCREW 35X25
-
70081030124 EJOT DELTA PT SCREW 30X12EJOT DELTA PT SCREW 30X12
-
90025060256 HH COLLAR SCREW M6X25HH COLLAR SCREW M6X25
-
1054830061000 CLAMP 54/09 MIXEDCLAMP 54/09 MIXED
-
1150430150100 INTAKE FLANGEINTAKE FLANGE
-
1250430098060 GASKET INTAKE FLANGEGASKET INTAKE FLANGE
