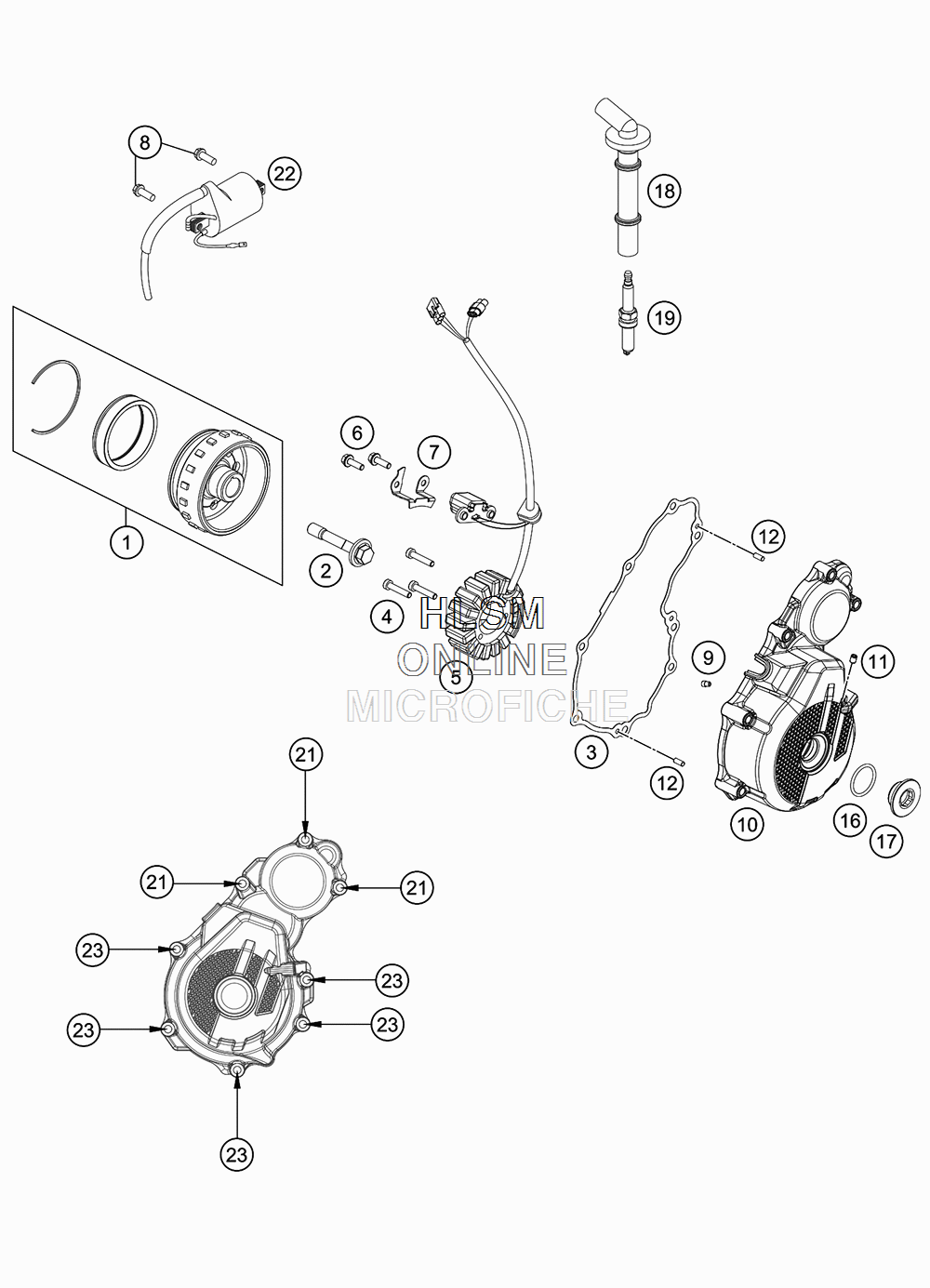

IGNITION SYSTEM для Ktm 250 EXC-F - 2018 года выпуска
-
№АртикулНазвание
-
179239105044 ROTOR EFI CPL.ROTOR EFI CPL.
-
277339010100 FLYWHEEL SCREWFLYWHEEL SCREW
-
379230040000 IGNITION COVER GASKETIGNITION COVER GASKET
-
40912050303 AH SCREW DIN0912-M 5X30AH SCREW DIN0912-M 5X30
-
579239104000 STATORSTATOR
-
60025050166 HH COLLAR SCREW M5X16HH COLLAR SCREW M5X16
-
779230102050 CABLE BRACKETCABLE BRACKET
-
80026060186 COLLAR SCREW M6X18 ISA30COLLAR SCREW M6X18 ISA30
-
980030058060 OIL JET "60" M4OIL JET "60" M4
-
107923010200015 IGNITION COVER EXCIGNITION COVER EXC
-
110913050063S THREAD PIN DIN 913 M5X6THREAD PIN DIN 913 M5X6
-
120402040980 NEEDLE ROL.DIN5402 NRB 4X9,8NEEDLE ROL.DIN5402 NRB 4X9,8
-
1607700240251 O-RING 24X2,5 VITONO-RING 24X2,5 VITON
-
177723000216030 SCREW PLUG M24X1,5SCREW PLUG M24X1,5
-
1877739090000 SPARK PLUG CONNECTORSPARK PLUG CONNECTOR
-
1977839093000 SPARK PLUG NGK LMAR9AI-10SPARK PLUG NGK LMAR9AI-10
-
210025060306 HH COLLAR SCREW M6X30HH COLLAR SCREW M6X30
-
2258439006000 IGNITIONCOIL IG3826 KOKUSAN'96IGNITIONCOIL IG3826 KOKUSAN'96
-
230025060406 HH COLLAR SCREW M6X40HH COLLAR SCREW M6X40
