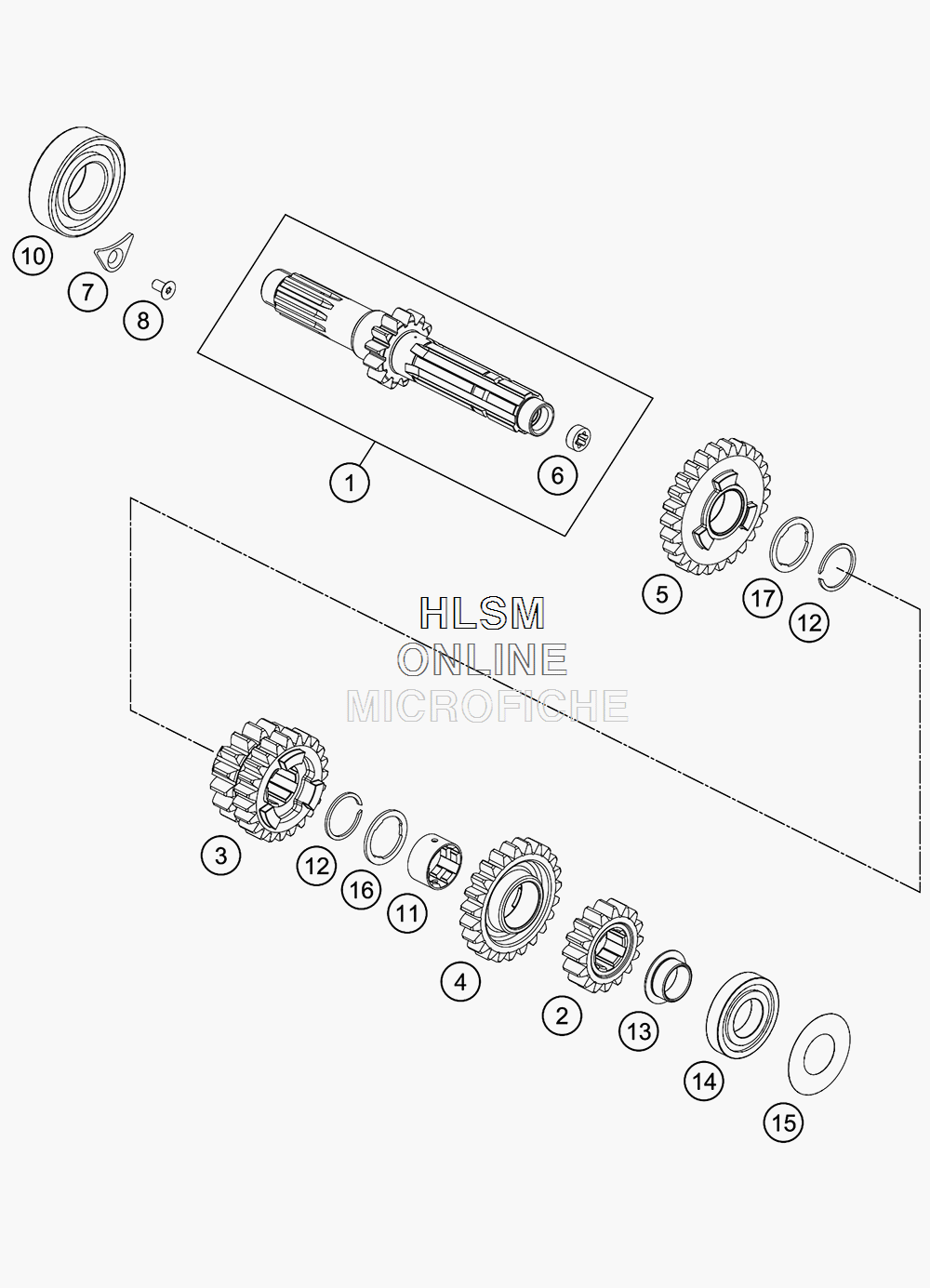

TRANSMISSION I - MAIN SHAFT для Ktm 250 EXC-F - 2018 года выпуска
-
№АртикулНазвание
-
177733001100 MAIN SHAFT CPL. 13TMAIN SHAFT CPL. 13T
-
277733102100 SOLID GEAR 2TH, Z=16SOLID GEAR 2TH, Z=16
-
377733103100 SLIDING GEEAR 3./4.G Z=16/23SLIDING GEEAR 3./4.G Z=16/23
-
477733105100 IDLER GEAR 5TH Z=23IDLER GEAR 5TH Z=23
-
572033006144 SLIDING GEAR 6 TH.SLIDING GEAR 6 TH.
-
678033001110 BUSHINGBUSHING
-
775030085000 RETAINING PLATE F. CS BEARINGRETAINING PLATE F. CS BEARING
-
80019050121S INT. TORX FLAT HEAD M5X12 T25INT. TORX FLAT HEAD M5X12 T25
-
100625062056 GROOVE BALL BEARING 6205 C4 NTNGROOVE BALL BEARING 6205 C4 NTN
-
1177733024000 IDLER GEAR BUSHINGIDLER GEAR BUSHING
-
1250133090000 LOCK RING 22X1,2LOCK RING 22X1,2
-
1377733027000 BUSHINGBUSHING
-
140625160041 BALL BEARING TM 16004 C4BALL BEARING TM 16004 C4
-
1577233088000 SPACER SHIM 21X42X0.2SPACER SHIM 21X42X0.2
-
1677733021000 STOP DISCSTOP DISC
-
1777733022000 STOP DISCSTOP DISC
