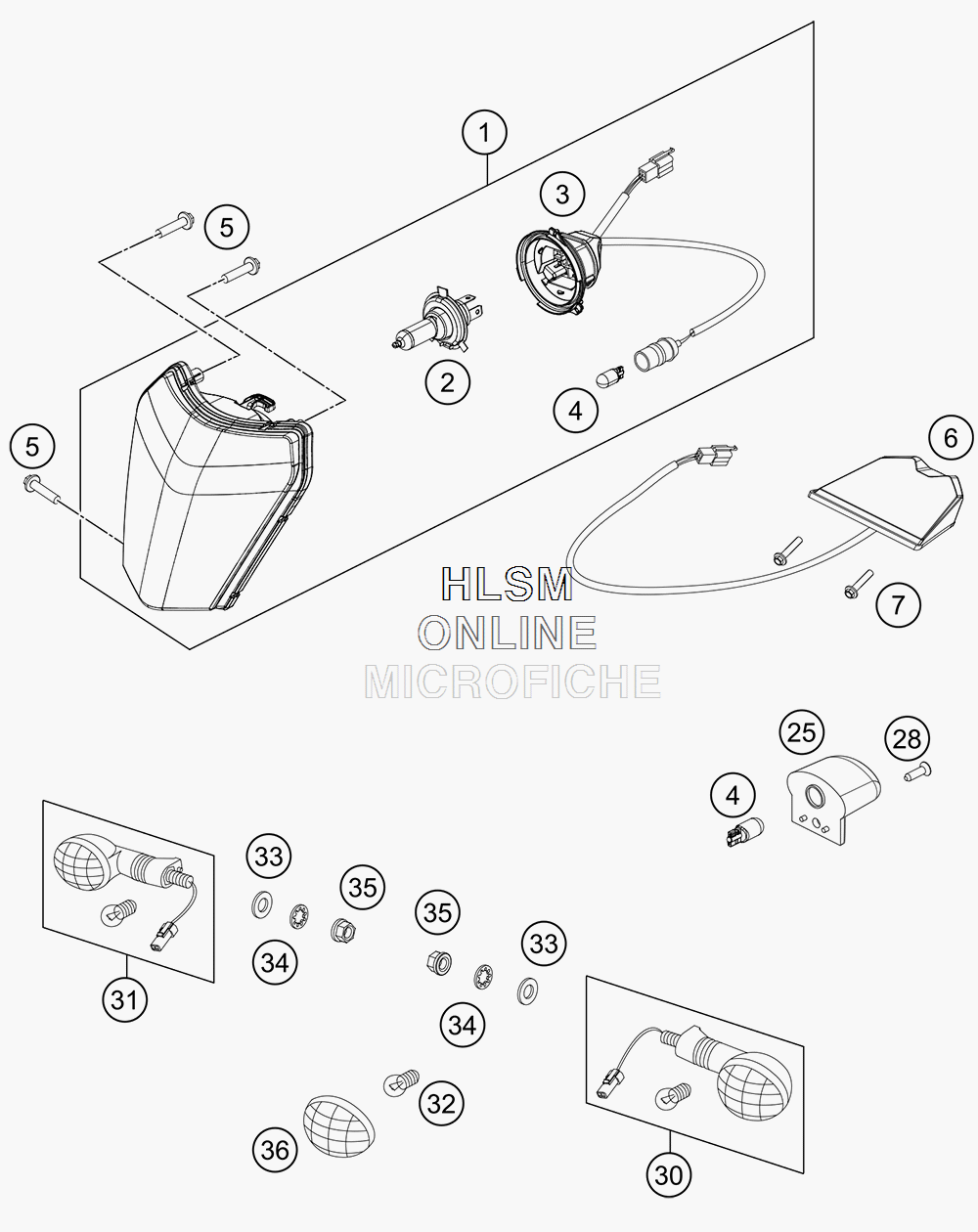

LIGHTING SYSTEM для Ktm 250 FREERIDE - 2018 года выпуска
-
№АртикулНазвание
-
178114001000 HEAD LIGHT CPL.HEAD LIGHT CPL.
-
254611038012 BULB HS1 12V 35/35W WHITEBULB HS1 12V 35/35W WHITE
-
378114001050 LAMP BRACKET CPL.LAMP BRACKET CPL.
-
449011435100 BULB 12V 5W (W2,1X9,5D) PHIL.BULB 12V 5W (W2,1X9,5D) PHIL.
-
50081050181 SCREW FOR PLASTIC K50X18 T20SCREW FOR PLASTIC K50X18 T20
-
678114040000 REAR LIGHTREAR LIGHT
-
70017060255 EJOT PT SCREW K60X25-Z SW6EJOT PT SCREW K60X25-Z SW6
-
2575014047100 NUMBER PLATE LIGHTNUMBER PLATE LIGHT
-
280081250181 SCREW FOR PLASTIC 50X18 T20SCREW FOR PLASTIC 50X18 T20
-
3054814025200 FLASHER CPL. FR.L/S RE.R/SFLASHER CPL. FR.L/S RE.R/S
-
3154814026200 FLASHER CPL. FR.R/S RE.L/SFLASHER CPL. FR.R/S RE.L/S
-
3244111015100 BULB 12V 10WBULB 12V 10W
-
330125100003 WASHER DIN0125-A10,5WASHER DIN0125-A10,5
-
340797100003 LOCK WASHER DIN6797-J10,5 ZILOCK WASHER DIN6797-J10,5 ZI
-
3558414030000 HH COLLAR NUT M10X1,25HH COLLAR NUT M10X1,25
-
3654814028000 FLASHER LENS L/S R/SFLASHER LENS L/S R/S
