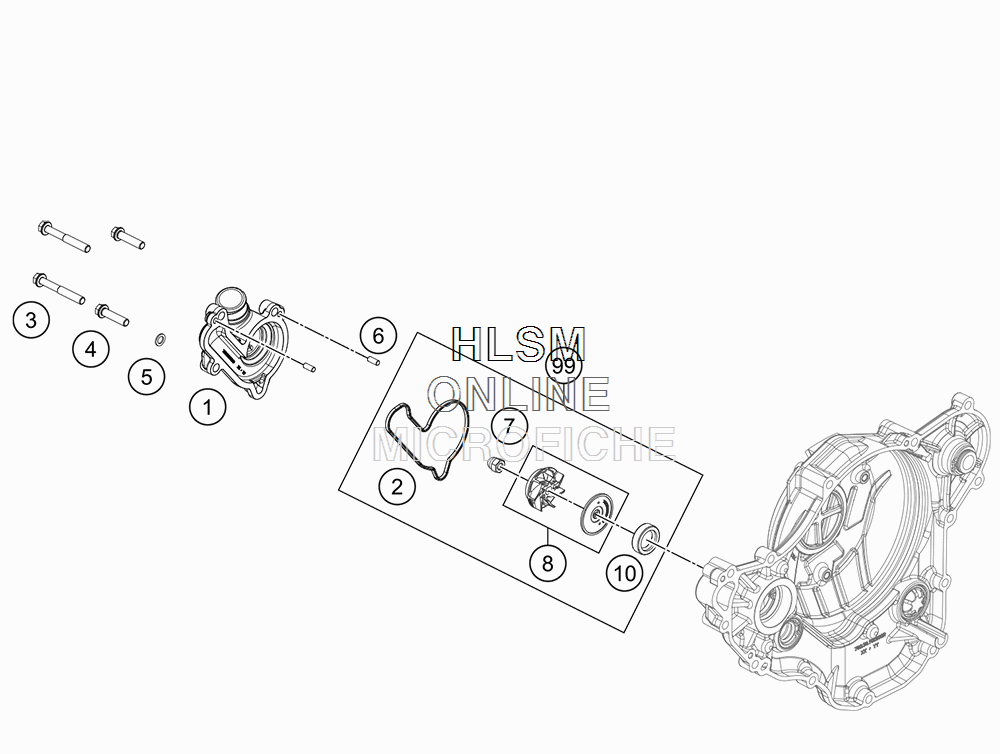

WATER PUMP для Ktm 250 FREERIDE - 2018 года выпуска
-
№АртикулНазвание
-
179235052000 WATER PUMP COVERWATER PUMP COVER
-
279235053000 GASKET F. WATER PUMP COVERGASKET F. WATER PUMP COVER
-
30025060456 HH COLLAR SCREW M6X45HH COLLAR SCREW M6X45
-
40025060256 HH COLLAR SCREW M6X25HH COLLAR SCREW M6X25
-
50603061001 CU-SEAL RING DIN7603-6X10X1CU-SEAL RING DIN7603-6X10X1
-
60402040980 NEEDLE ROL.DIN5402 NRB 4X9,8NEEDLE ROL.DIN5402 NRB 4X9,8
-
761230045000 CAP NUT M6 STAINLESS STEELCAP NUT M6 STAINLESS STEEL
-
879235055044 WATER PUMP WHEEL CPL.WATER PUMP WHEEL CPL.
-
1007601530451 SHAFT SEAL RING 15X30X4.5 BAUDSHAFT SEAL RING 15X30X4.5 BAUD
-
9979235055015 WATER PUMP REP. KITWATER PUMP REP. KIT
