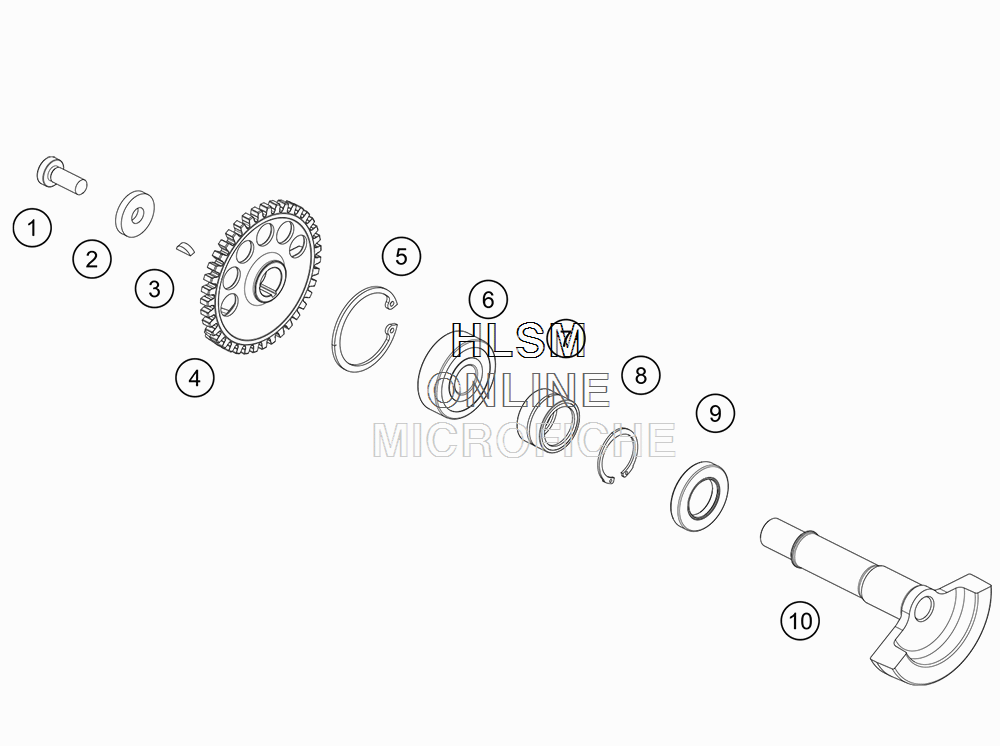

BALANCER SHAFT для Ktm 250 XC - 2018 года выпуска
-
№АртикулНазвание
-
10035080206S AH-COLLAR SCREW M8X20 ISA45AH-COLLAR SCREW M8X20 ISA45
-
20340084234 WASHER DIN 6340 8,4X23X4WASHER DIN 6340 8,4X23X4
-
30888030037 WOODRUFF KEY DIN6888-3X3,7WOODRUFF KEY DIN6888-3X3,7
-
455430056000 AGW-GEAR WHEELAGW-GEAR WHEEL
-
50472042175 CIRCLIP DIN0472-42X1,75CIRCLIP DIN0472-42X1,75
-
60625063022 GROOVED BALL BEARING 6302 C3GROOVED BALL BEARING 6302 C3
-
755430058000 NEEDLE BEARING NK20X16XLNEEDLE BEARING NK20X16XL
-
855430059100 CIRCLIP DIN0472-28X1,2CIRCLIP DIN0472-28X1,2
-
947030076100 SEAL SHAFT RING 20X35X6 BTSLSEAL SHAFT RING 20X35X6 BTSL
-
1055430057100 BALANCER SHAFTBALANCER SHAFT
