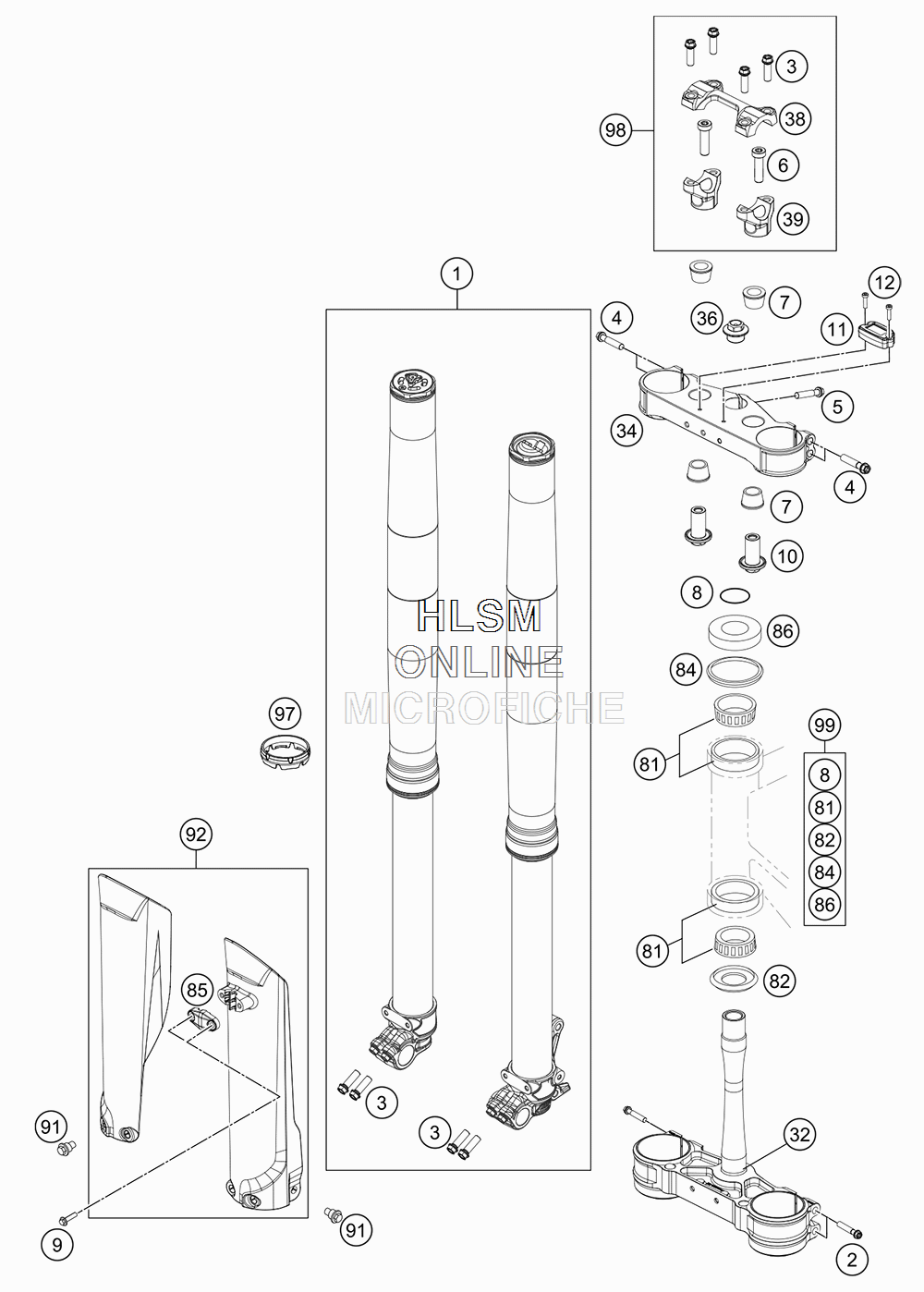

FRONT FORK- TRIPLE CLAMP для Ktm 250 XC - 2018 года выпуска
-
№АртикулНазвание
-
134188R7301 FORKFORK
-
20025080506 HH COLLAR SCREW M8X50HH COLLAR SCREW M8X50
-
30025080256 HH COLLAR SCREW M8X25HH COLLAR SCREW M8X25
-
40025080406 HH COLLAR SCREW M8X40HH COLLAR SCREW M8X40
-
50015080256S HH COLLAR SCREW M8X25 WS=10HH COLLAR SCREW M8X25 WS=10
-
60032100356S AH-COLLAR SCREW M10X35 ISA45AH-COLLAR SCREW M10X35 ISA45
-
783001040000 RUBBER BUSHRUBBER BUSH
-
80770025035 O-RING 25X3,55 NBR70O-RING 25X3,55 NBR70
-
90017060206 SCREW F. PLASTIC K60X20AL SW6SCREW F. PLASTIC K60X20AL SW6
-
1079001037034 HANDLEBAR SUPPORT LOWER PARTHANDLEBAR SUPPORT LOWER PART
-
1178112020050 HOUR METERHOUR METER
-
120912040163 AH SCREW DIN0912-M 4X16AH SCREW DIN0912-M 4X16
-
327900103202230 LOWER TRIPLE CLAMP CPL.LOWER TRIPLE CLAMP CPL.
-
347900113402230 UPPER TRIPLE CLAMP X=22MMUPPER TRIPLE CLAMP X=22MM
-
3670009082000 AXLESCREW M20X1.5; SW17AXLESCREW M20X1.5; SW17
-
3879001038000 HANDLEBAR CLAMP 28MMHANDLEBAR CLAMP 28MM
-
3979001039136 HANDLEBAR SUPPORT D28MM-H36MMHANDLEBAR SUPPORT D28MM-H36MM
-
8154201081100 TAPERED ROLLER BEARING CPL.TAPERED ROLLER BEARING CPL.
-
8277701084000 O-RING SUPPORT W. SEALING LIPO-RING SUPPORT W. SEALING LIP
-
8454601184000 STEARING HEAD GASKET TOPSTEARING HEAD GASKET TOP
-
857770108510028 CLAMP BRAKE HOSECLAMP BRAKE HOSE
-
8678101086000 STEERING HEAD COVERSTEERING HEAD COVER
-
9159001092050 SPECIAL SCREW M6X12,5SPECIAL SCREW M6X12,5
-
927770109410028F FORK PROTECTIONFORK PROTECTION
-
9748600698 FORK PROTECTION RINGFORK PROTECTION RING
-
9800050000929 HANDLEBAR SUPPORT KITHANDLEBAR SUPPORT KIT
-
9900050000930 STEARING HEAD REP. KITSTEARING HEAD REP. KIT
