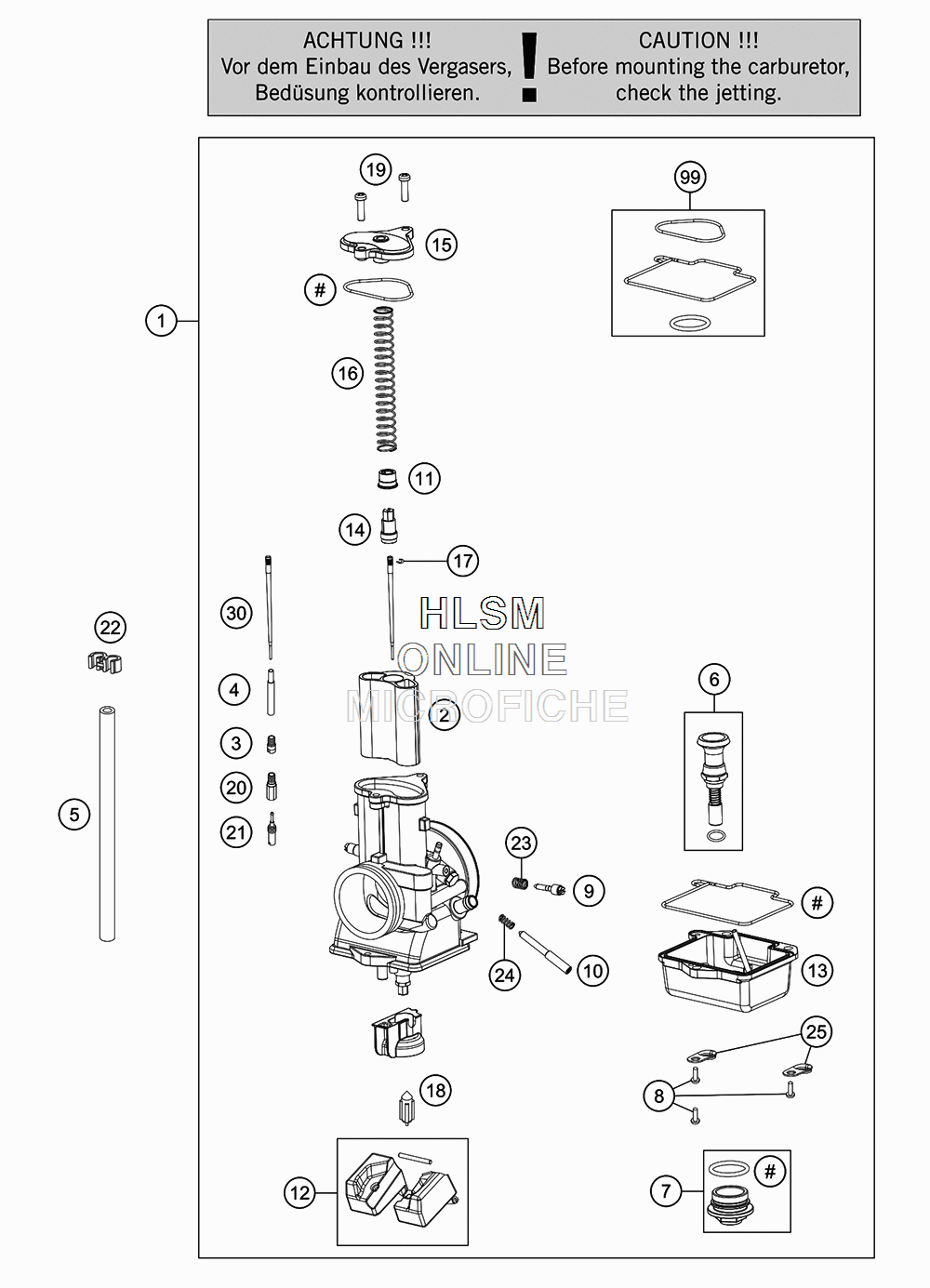

CARBURETOR для Ktm 300 XC-WSD - 2018 года выпуска
-
№АртикулНазвание
-
155431101244 CARBURETORCARBURETOR
-
255431035040 THROTTLE SLIDE "4.0"THROTTLE SLIDE "4.0"
-
355431051050 STARTING JET "50"STARTING JET "50"
-
355431051080 STARTING JET "80"STARTING JET "80"
-
455431021100 NEEDLE JET "S-1"NEEDLE JET "S-1"
-
455431021400 NEEDLE JET S-4NEEDLE JET S-4
-
455431021700 NADELDЬSE S-7NADELDЬSE S-7
-
455431021000 NEEDLE JET "R-8"NEEDLE JET "R-8"
-
531007007101 PVC-HOSE 4X6MMPVC-HOSE 4X6MM
-
552031137001 PVC-HOSE 3X5MMPVC-HOSE 3X5MM
-
655431245000 START PISTONSTART PISTON
-
755431699000 SCREW PLUG CPL.SCREW PLUG CPL.
-
80014050163 HH COLLAR SCREW M 5X16HH COLLAR SCREW M 5X16
-
955431017000 ADJUSTER & COMPRESSION SPRINGADJUSTER & COMPRESSION SPRING
-
1055431017001 ADJUSTERADJUSTER
-
1155431017002 RINGRING
-
1255431009000 FLOAT & PINFLOAT & PIN
-
1355431011000 FLOAT CHAMBER CPL.FLOAT CHAMBER CPL.
-
1455431030050 GUIDE HOLDERGUIDE HOLDER
-
1555431027000 CARBURETTOR COVERCARBURETTOR COVER
-
1655431030000 SLIDING SPRING MIKUNISLIDING SPRING MIKUNI
-
1755431034060 LOCK RINGLOCK RING
-
1855431020000 FLOA T NEEDLE CPL.FLOA T NEEDLE CPL.
-
19554831025000 SCREW CARBURETOR COVERSCREW CARBURETOR COVER
-
2055431029100 MAIN JET "100"MAIN JET "100"
-
2055431029155 MAIN JET "155"MAIN JET "155"
-
2055431029400 MAIN JET "400"MAIN JET "400"
-
2055431029410 MAIN JET "410"MAIN JET "410"
-
2055431029420 MAIN JET "420"MAIN JET "420"
-
2055431029430 MAIN JET "430"MAIN JET "430"
-
2055431029440 MAIN JET "440"MAIN JET "440"
-
2055431029450 MAIN JET "450"MAIN JET "450"
-
2055431029460 MAIN JET "460"MAIN JET "460"
-
2055431029470 MAIN JET "470"MAIN JET "470"
-
2055431029480 MAIN JET "480"MAIN JET "480"
-
2055431029490 MAIN JET "490"MAIN JET "490"
-
2055431029500 MAIN JET "500"MAIN JET "500"
-
2055431029520 MAIN JET "520"MAIN JET "520"
-
2055431029540 MAIN JET "540"MAIN JET "540"
-
2055431029560 MAIN JET "560"MAIN JET "560"
-
2055431029580 MAIN JET "580"MAIN JET "580"
-
2055431029600 MAIN JET "600"MAIN JET "600"
-
2155431007150 IDLING JET "15"IDLING JET "15"
-
2155431007175 IDLING JET "17.5"IDLING JET "17.5"
-
2155431007225 IDLE JET "22,5"IDLE JET "22,5"
-
2155431007250 IDLE JET "25"IDLE JET "25"
-
2155431007275 IDLE JET "27,5"IDLE JET "27,5"
-
2155431007300 IDLING JET "30"IDLING JET "30"
-
2155431007325 IDLING JET "32.5"IDLING JET "32.5"
-
2155431007350 IDLING JET "35"IDLING JET "35"
-
2155431007375 IDLING JET "37.5"IDLING JET "37.5"
-
2155431007400 IDLING JET "40"IDLING JET "40"
-
2155431007425 IDLING JET "42.5"IDLING JET "42.5"
-
2155431007450 IDLING JET "45"IDLING JET "45"
-
2155431007475 IDLING JET "47.5"IDLING JET "47.5"
-
2155431007500 IDLING JET "50"IDLING JET "50"
-
2155431007525 IDLING JET "52.5"IDLING JET "52.5"
-
2255431073000 DISTANCE HOLDERDISTANCE HOLDER
-
2355431017010 COMPRESSION SPRING ADJUSTERCOMPRESSION SPRING ADJUSTER
-
2455431019010 COMPRESSING SPRINGCOMPRESSING SPRING
-
2455431019010 COMPRESSING SPRINGCOMPRESSING SPRING
-
3055431934000 JET NEEDLE "6GA Y69-74"JET NEEDLE "6GA Y69-74"
-
3055431034000 JET NEEDLE "6BFY42-71"JET NEEDLE "6BFY42-71"
-
3055431034100 JET NEEDLE "6BFY42-72"JET NEEDLE "6BFY42-72"
-
3055431034200 JET NEEDLE "6BFY42-73"JET NEEDLE "6BFY42-73"
-
3055431034300 JET NEEDLE "6BFY42-74"JET NEEDLE "6BFY42-74"
-
3055431034400 JET NEEDLE "6BFY42-75"JET NEEDLE "6BFY42-75"
-
3055431034500 JET NEEDLE "6BFY42-76"JET NEEDLE "6BFY42-76"
-
3055431134000 JET NEEDLE "6BFY43-71"JET NEEDLE "6BFY43-71"
-
3055431134100 JET NEEDLE "6BFY43-72"JET NEEDLE "6BFY43-72"
-
3055431134200 JET NEEDLE "6BFY43-73"JET NEEDLE "6BFY43-73"
-
3055431134300 JET NEEDLE "6BFY43-74"JET NEEDLE "6BFY43-74"
-
3055431134400 JET NEEDLE "6BFY43-75"JET NEEDLE "6BFY43-75"
-
3055431134500 JET NEEDLE "6BFY43-76"JET NEEDLE "6BFY43-76"
-
3055431234000 JET NEEDLE "6BFY44-71"JET NEEDLE "6BFY44-71"
-
3055431234100 JET NEEDLE "6BFY44-72"JET NEEDLE "6BFY44-72"
-
3055431234200 JET NEEDLE "6BFY44-73"JET NEEDLE "6BFY44-73"
-
3055431234300 JET NEEDLE "6BFY44-74"JET NEEDLE "6BFY44-74"
-
3055431234400 JET NEEDLE "6BFY44-75"JET NEEDLE "6BFY44-75"
-
3055431234500 JET NEEDLE "6BFY44-76"JET NEEDLE "6BFY44-76"
-
9955431099000 GASKET SET MIKUNIGASKET SET MIKUNI
