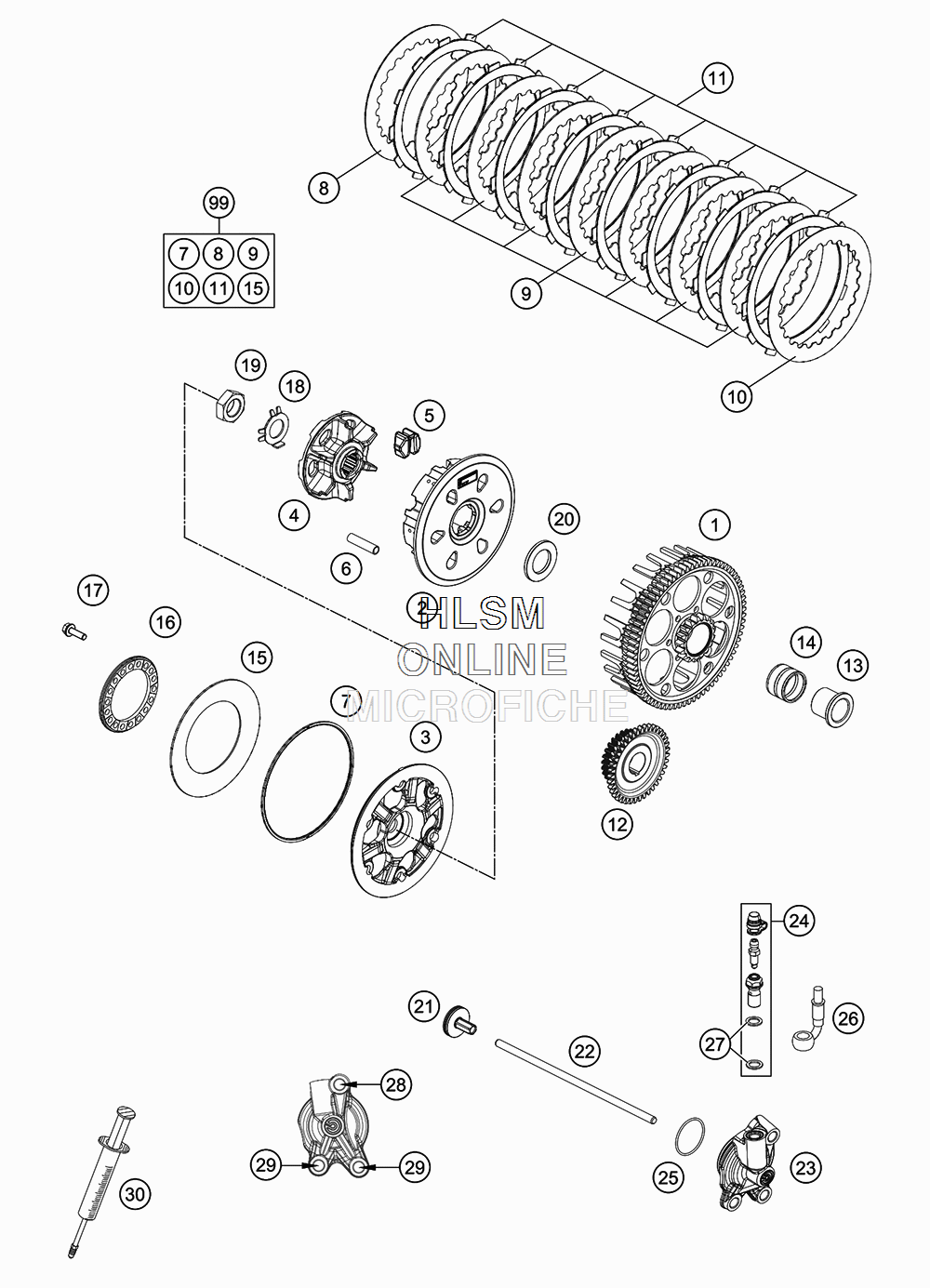

CLUTCH для Ktm 300 XC-WSD - 2018 года выпуска
-
№АртикулНазвание
-
179232201073 CLUTCH BASKETCLUTCH BASKET
-
278132002300 CLUTCH HUBCLUTCH HUB
-
379432003000 CLUTCH PRESSURE CAPCLUTCH PRESSURE CAP
-
478132002111 HUBHUB
-
578132025100 DAMPING RUBBERDAMPING RUBBER
-
677232004000 DRIVING SLEEVE D=7,95 L=38DRIVING SLEEVE D=7,95 L=38
-
778132013000 WASHER 112X118X1.5WASHER 112X118X1.5
-
859032010100 INTERMEDIATE DISC 1MMINTERMEDIATE DISC 1MM
-
959032010200 INTERMEDIATE DISC 1,4MMINTERMEDIATE DISC 1,4MM
-
1078932010000 INTERMEDIATE DISC 1MMINTERMEDIATE DISC 1MM
-
1154832011100 LINING DISCLINING DISC
-
1255432024026 PRIMARY GEARPRIMARY GEAR
-
1377232015000 INNER RINGINNER RING
-
1456532095000 NEEDLE BEARING K26X30X22ZW.KSENEEDLE BEARING K26X30X22ZW.KSE
-
1578132005000 BELLEVILLE SPRING 71X115X1,5 IBELLEVILLE SPRING 71X115X1,5 I
-
1678132006100 SPRING RINGSPRING RING
-
170025050166 HH COLLAR SCREW M5X16HH COLLAR SCREW M5X16
-
1878132018000 TAB WASHERTAB WASHER
-
190936181505 HEXAGON NUT DIN0936-M18X1,5 R.HEXAGON NUT DIN0936-M18X1,5 R.
-
2077232009000 WASHER 21,8 X 37 X 5,1WASHER 21,8 X 37 X 5,1
-
2178032057044 PRESSURE PIECE CPL.PRESSURE PIECE CPL.
-
2279232054000 PUSH RODPUSH ROD
-
2325032061044 OUTPUT CYL. DOT CPL. 27MM M8OUTPUT CYL. DOT CPL. 27MM M8
-
2425032062000 HOLLOW SCREW CPL. M8HOLLOW SCREW CPL. M8
-
250770300015 O-RING 30,00X1,50 NBR 70O-RING 30,00X1,50 NBR 70
-
2625032063000 CLUTCH PIPE L=955MMCLUTCH PIPE L=955MM
-
270603080161 COPPERT GASKET 8X16X1COPPERT GASKET 8X16X1
-
280025060256 HH COLLAR SCREW M6X25HH COLLAR SCREW M6X25
-
290025060166 HH COLLAR SCREW M6X16HH COLLAR SCREW M6X16
-
3050329050000 VENT INJEKTION HYDR. CLUTCHVENT INJEKTION HYDR. CLUTCH
-
9954832011110 CLUTCH KIT 250/300 13-15CLUTCH KIT 250/300 13-15
