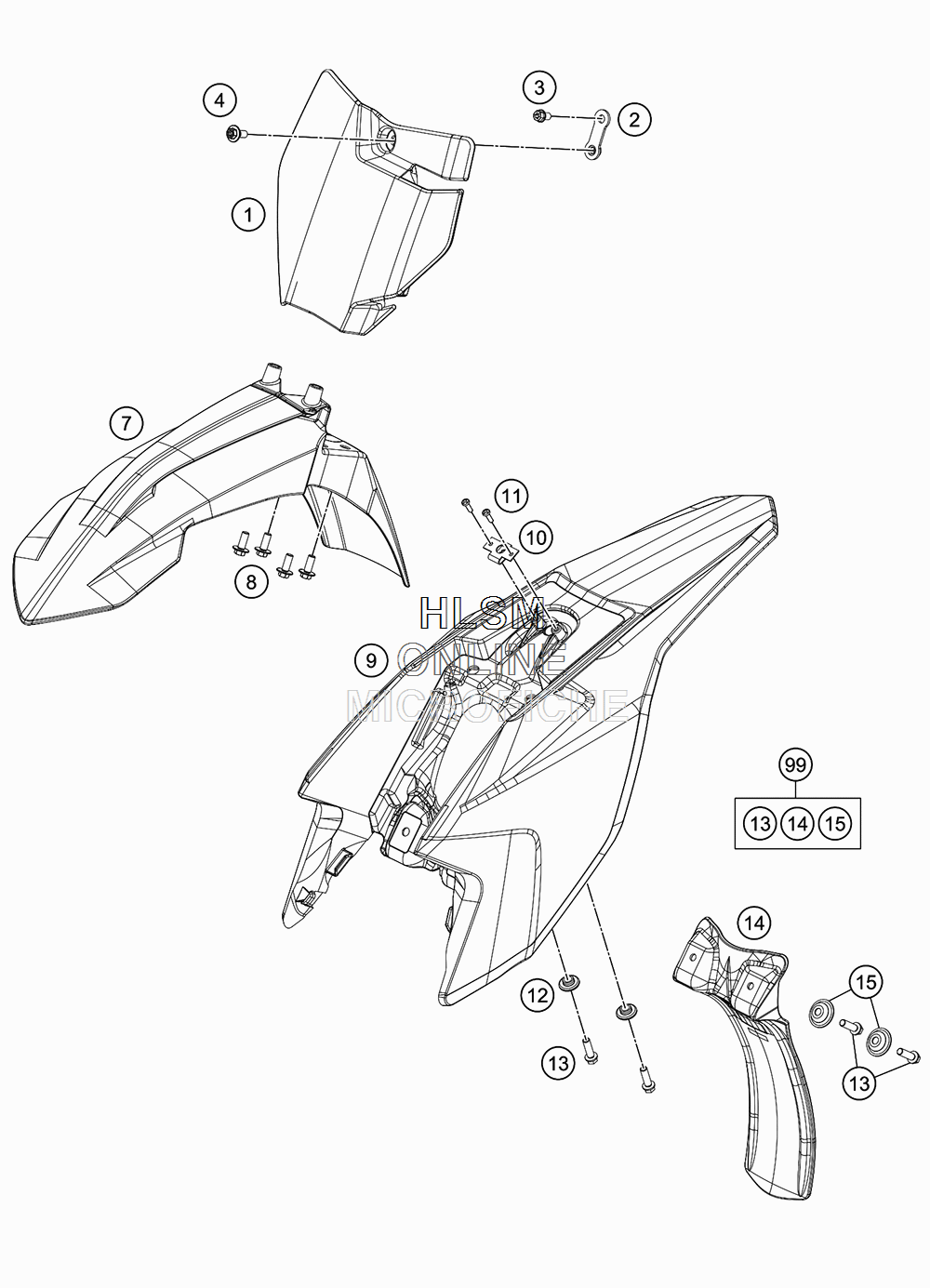

MASK- FENDERS для Ktm 50 SX MINI - 2018 года выпуска
-
№АртикулНазвание
-
14530800700028 START NUMBER PLATESTART NUMBER PLATE
-
245208007050 RETAINING PLATE F. NUMBER PL.RETAINING PLATE F. NUMBER PL.
-
30025060106 HH COLLAR SCREW M6X10HH COLLAR SCREW M6X10
-
40024060106 HH COLLAR SCREW M6X10HH COLLAR SCREW M6X10
-
745308010000EB FENDER 50 SX ORANGEFENDER 50 SX ORANGE
-
80024060156 HH COLLAR SCREW M6X15HH COLLAR SCREW M6X15
-
94530801300028B REAR PARTREAR PART
-
1045007040050 QUICK RELEASE LATCHPLATEQUICK RELEASE LATCHPLATE
-
110981350133 SHEET MET.SCR.DIN7981-3,5X13SHEET MET.SCR.DIN7981-3,5X13
-
1254808020000 SPACER BUSHINGSPACER BUSHING
-
130025060206 HH COLLAR SCREW M6X20HH COLLAR SCREW M6X20
-
1445206010100 SPLASH PROTECT.SPLASH PROTECT.
-
1572210079000 BUCKETBUCKET
-
9945206010010 SPLASH PROTECTOR KITSPLASH PROTECTOR KIT
