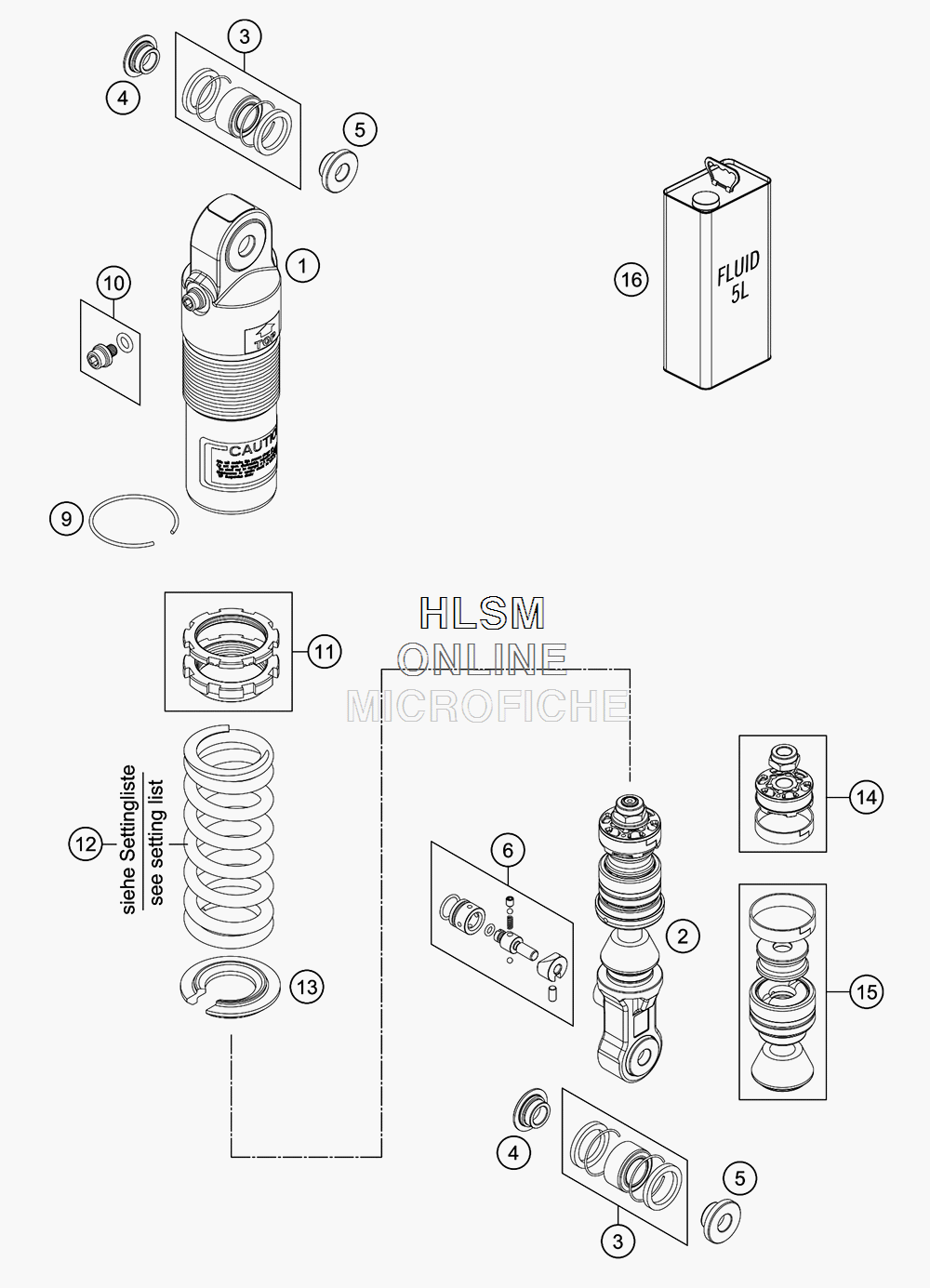

SHOCK ABSORBER DISASSEMBLED для Ktm 50 SX MINI - 2018 года выпуска
-
№АртикулНазвание
-
136120861S1 MONOSHOCK UPPER P AR T CPL.WHITEMONOSHOCK UPPER P AR T CPL.WHITE
-
236120781S15 MONOSHOCK LOW.PART CPL.MONOSHOCK LOW.PART CPL.
-
3R12012 REP. KIT BEAR./SEAL UP.REP. KIT BEAR./SEAL UP.
-
446180008 SPACER BUSHING KGW 10X20SPACER BUSHING KGW 10X20
-
546180010 BUSH KGW 10X24BUSH KGW 10X24
-
646180522S1 TAP ADJ. REBOUNDTAP ADJ. REBOUND
-
940540015 CIRCLIP 38X1,5CIRCLIP 38X1,5
-
1036120151S PLUG SCREW M5X6 CPL.PLUG SCREW M5X6 CPL.
-
1136120418S ADJUSTING NUT CPL.ADJUSTING NUT CPL.
-
1293010221S SHOCK SPRING 65N/MM - 120MMSHOCK SPRING 65N/MM - 120MM
-
1293010222S SHOCK SPRING 75N/MM - 120MMSHOCK SPRING 75N/MM - 120MM
-
1293010223S SHOCK SPRING 85N/MM - 120MMSHOCK SPRING 85N/MM - 120MM
-
1336120461 SPRING RETAINER D=39SPRING RETAINER D=39
-
14R310 MONOSHOCK PISTON SETMONOSHOCK PISTON SET
-
15R311 MONOSHOCK REP . KITMONOSHOCK REP . KIT
-
1650180751S1 SHOCK ABSORBER FLUID 5 LTSHOCK ABSORBER FLUID 5 LT
