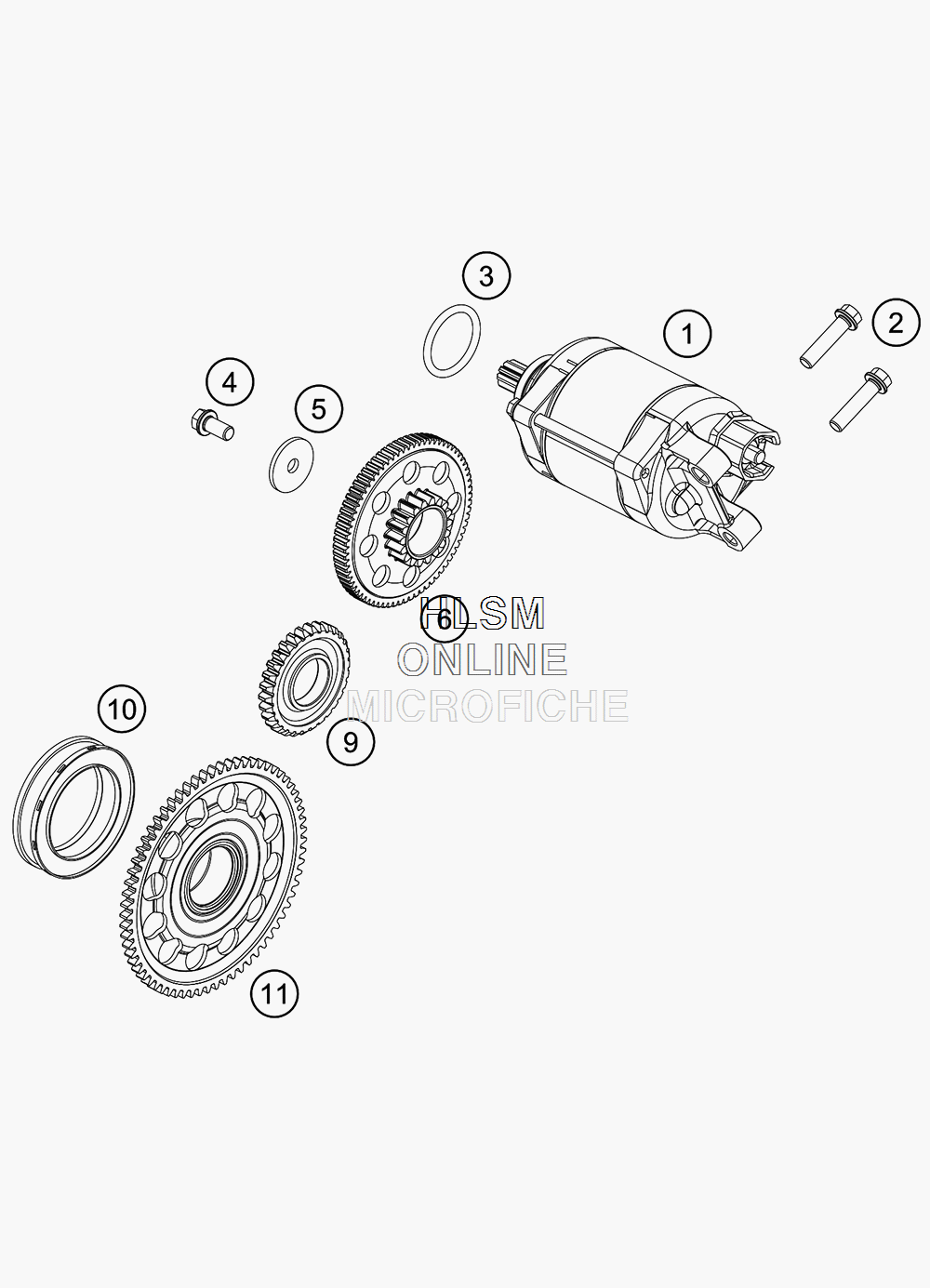

ELECTRIC STARTER для Ktm 500 EXC-F - 2018 года выпуска
-
№АртикулНазвание
-
179440001000 E-STARTER CPL. 0,5KWE-STARTER CPL. 0,5KW
-
20025060256 HH COLLAR SCREW M6X25HH COLLAR SCREW M6X25
-
30770250030 O-RING 25,00X3,00 NBR 70O-RING 25,00X3,00 NBR 70
-
40025060126 HH COLLAR SCREW M6X12HH COLLAR SCREW M6X12
-
578040016004 STOP DISC 6X23X2STOP DISC 6X23X2
-
679440016000 TORQUE LIMITER CPL.TORQUE LIMITER CPL.
-
979440022030 IDLER WHEEL 30TIDLER WHEEL 30T
-
1075040026000 FREE WHEELFREE WHEEL
-
1179440020033 FREEWHEEL SPROCKET CPL.FREEWHEEL SPROCKET CPL.
