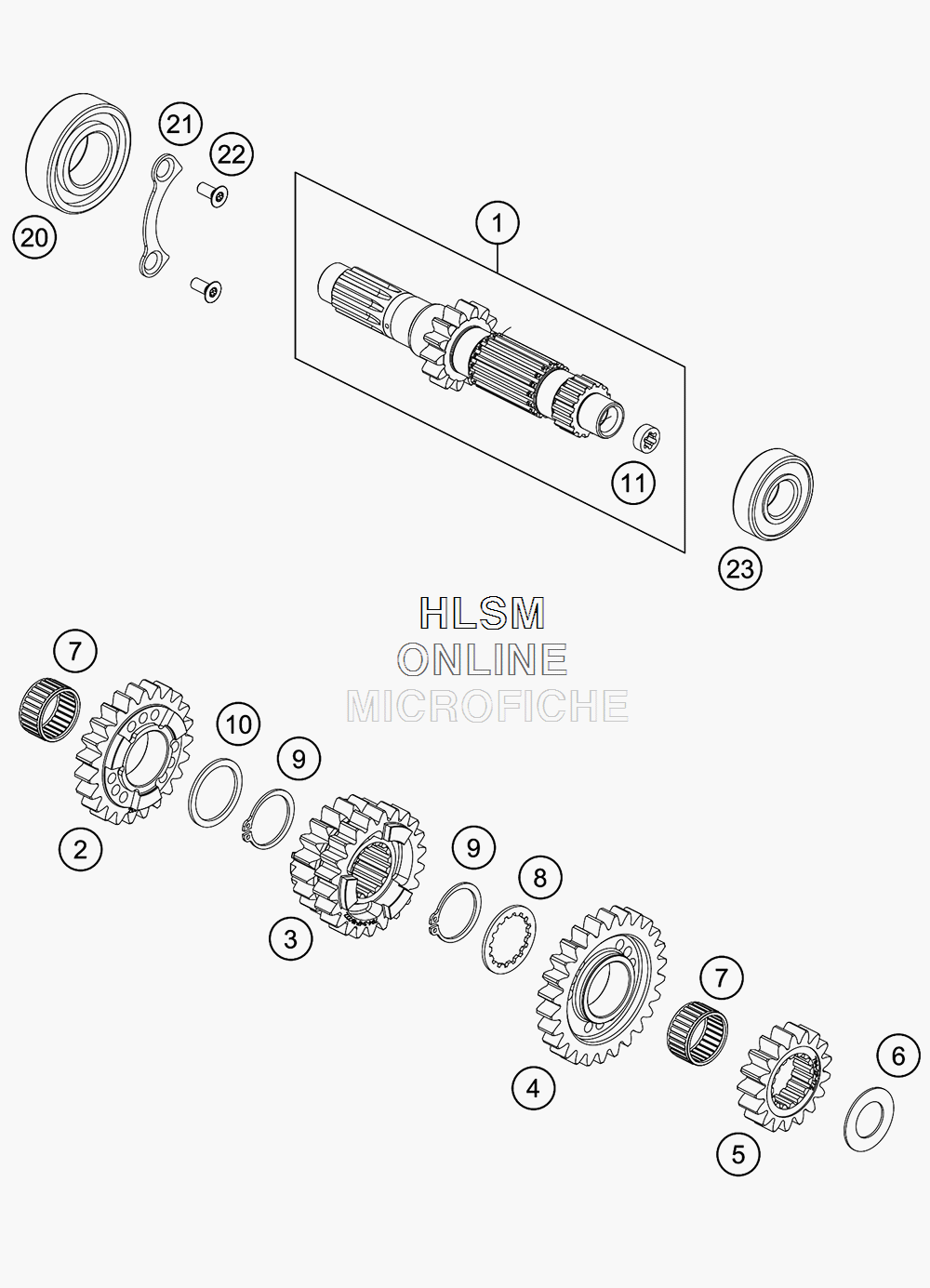

TRANSMISSION I - MAIN SHAFT для Ktm 500 EXC-F - 2018 года выпуска
-
№АртикулНазвание
-
179433601000 ANTRIEBSWELLE ZBANTRIEBSWELLE ZB
-
279433605000 LOSRAD 5.G.LOSRAD 5.G.
-
379433603000 SCHIEBERAD 3./4.G.SCHIEBERAD 3./4.G.
-
479433606000 LOSRAD 6.G.LOSRAD 6.G.
-
579433602000 FESTRAD 2.G.FESTRAD 2.G.
-
656033030000 STOP DISC 17,2X30X1STOP DISC 17,2X30X1
-
70405222613 NEEDLE BEAR. K 22X26X13 TNNEEDLE BEAR. K 22X26X13 TN
-
878033033000 STOP DISK 23 X 32 X 1,5STOP DISK 23 X 32 X 1,5
-
90471250120 CIRCLIP DIN0471-25X1,2CIRCLIP DIN0471-25X1,2
-
1078033031000 STOP DISK 26 X 32 X 1,5STOP DISK 26 X 32 X 1,5
-
1178033001110 BUSHINGBUSHING
-
200625062056 GROOVE BALL BEARING 6205 C4 NTNGROOVE BALL BEARING 6205 C4 NTN
-
2178033032000 TAB WASHER BEARING MAIN SHAFTTAB WASHER BEARING MAIN SHAFT
-
220019050121S INT. TORX FLAT HEAD M5X12 T25INT. TORX FLAT HEAD M5X12 T25
-
230625062036 BALL BEARING 6203 RSH C3BALL BEARING 6203 RSH C3
