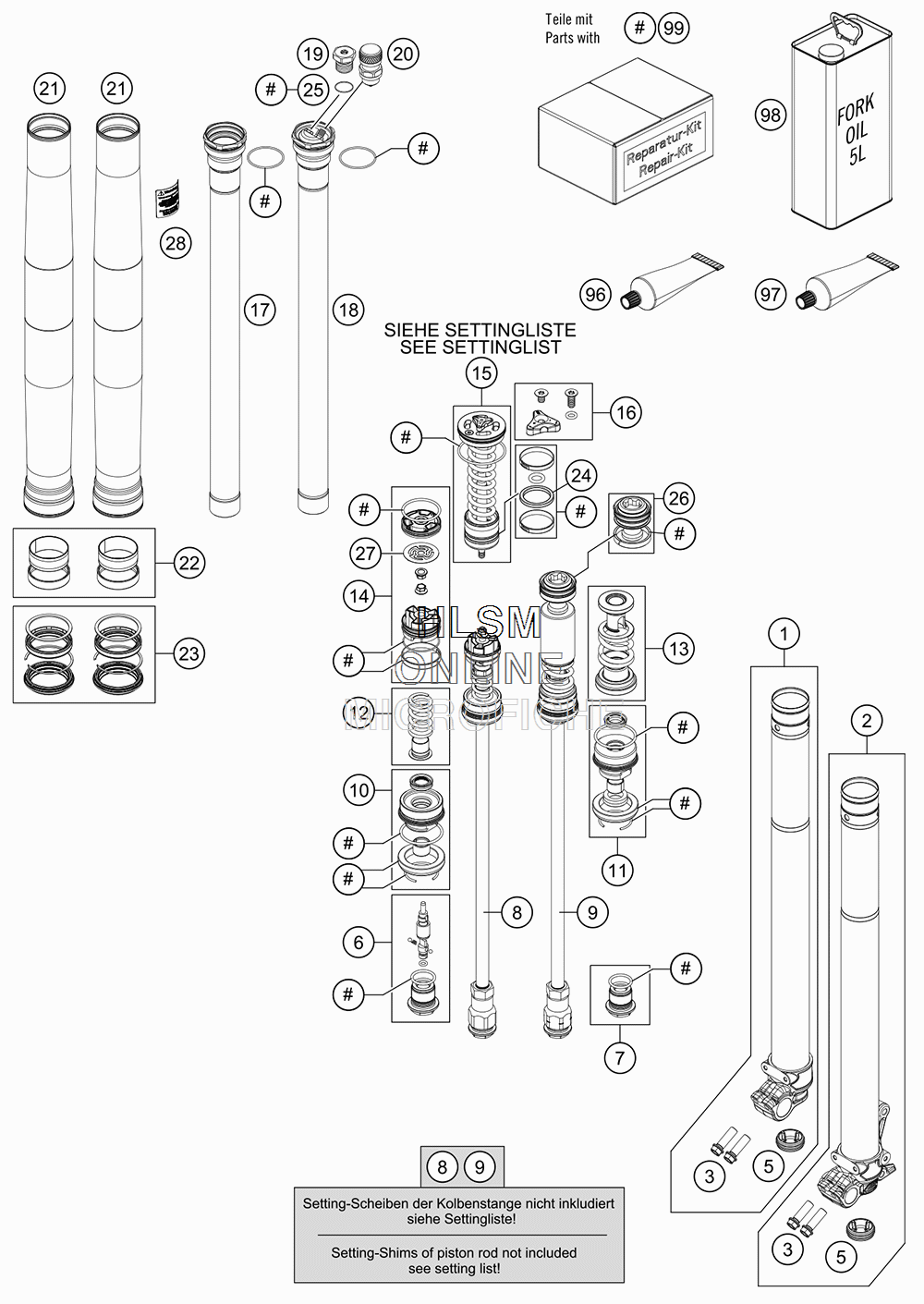

FRONT FORK DISASSEMBLED для Ktm 150 SX - 2019 года выпуска
-
№АртикулНазвание
-
148601408S2 FORK LEG R/S + TUBE CPL.FORK LEG R/S + TUBE CPL.
-
248601407S2 FORK LEG L/S + TUBE CPL.FORK LEG L/S + TUBE CPL.
-
30025080256 HH COLLAR SCREW M8X25HH COLLAR SCREW M8X25
-
548600692 RUBBER CAP D=26,4RUBBER CAP D=26,4
-
648601484S ADJUSTING CAP M20 CPL.ADJUSTING CAP M20 CPL.
-
748601533S PLUG M20 CPL.PLUG M20 CPL.
-
848601574S3 PISTON ROD D12 M9X1 L385 KPL.PISTON ROD D12 M9X1 L385 KPL.
-
948601501S1 PISTON ROD LEFT KPL. M12X1PISTON ROD LEFT KPL. M12X1
-
1048601462S1 SCREW SLEEVE OIL CPL.SCREW SLEEVE OIL CPL.
-
1148601452S1 SCREW SLEEVE AIR CPL.SCREW SLEEVE AIR CPL.
-
1248600578S SPRING REBOUND + SPRING GUIDESPRING REBOUND + SPRING GUIDE
-
1348601820S SPRING REBOUND + SPRING GUIDESPRING REBOUND + SPRING GUIDE
-
14RP10015 PISTON SET AIR FORK D34 MY18PISTON SET AIR FORK D34 MY18
-
1548601485S4 PRESSURE CONTROL UNITPRESSURE CONTROL UNIT
-
1548601485S3 PRESSURE LEVELPRESSURE LEVEL
-
16R14062 SMALL P AR TS KIT SCREW CAPSMALL P AR TS KIT SCREW CAP
-
1748601454S1 SCREW CAP + TUBE CPL. R/SSCREW CAP + TUBE CPL. R/S
-
1848601453S1 SCREW CAP + TUBE CPL. L/SSCREW CAP + TUBE CPL. L/S
-
1948601495 PLUG SCREW M8X1 BN44PLUG SCREW M8X1 BN44
-
2048601494S VALVE M8X1 INCL. SCREW CAPVALVE M8X1 INCL. SCREW CAP
-
2148601671 OUTER TUBE L577 D54/60MM 2LOUTER TUBE L577 D54/60MM 2L
-
22R14047 REP. KIT GUIDE BUSHINGSREP. KIT GUIDE BUSHINGS
-
23R14046 SEALING KITSEALING KIT
-
2404100002 X-RING 26,57X3,53 FKM 80SH.X-RING 26,57X3,53 FKM 80SH.
-
2548600044 O-RING NBR 6X1,5O-RING NBR 6X1,5
-
2648601628S MAIN PISTON Ш34 INCL. GASKETMAIN PISTON Ш34 INCL. GASKET
-
2748601459 CHECKVALVE SHIMCHECKVALVE SHIM
-
2852000158 STICKER W ARNINH 40X40STICKER W ARNINH 40X40
-
96T14034 FUCHS GREASE IPR (250G)FUCHS GREASE IPR (250G)
-
9700062010053 FORK SPECIAL GREASEFORK SPECIAL GREASE
-
9848601166S1 FORK OIL SAE4 5LFORK OIL SAE4 5L
-
99R14060 SEALING KITSEALING KIT
