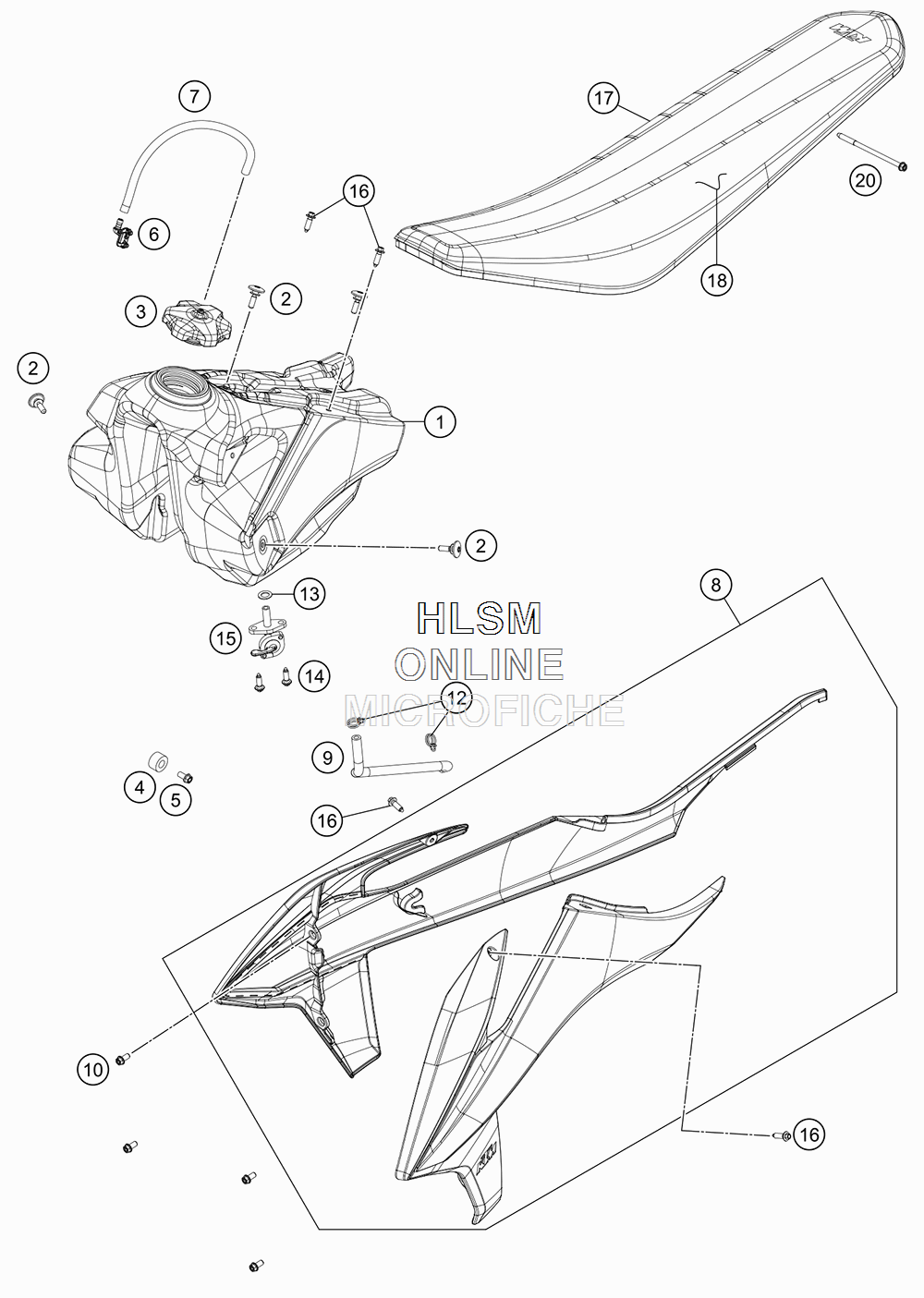

TANK- SEAT для Ktm 150 SX - 2019 года выпуска
-
№АртикулНазвание
-
15050701300030 FUEL TANKFUEL TANK
-
279107011000 SEAT HOLDER SCREWSEAT HOLDER SCREW
-
37770700814404 TANK PLUG CPL.TANK PLUG CPL.
-
450307014000 TANK ROLLER 12X26X12TANK ROLLER 12X26X12
-
50026060136 COLLAR SCREW M6X13 ISA30COLLAR SCREW M6X13 ISA30
-
651030022000 ANGLE PIECE 90 DEGREE M10X1ANGLE PIECE 90 DEGREE M10X1
-
778007000270 PVC-HOSE 5,6X10X270MMPVC-HOSE 5,6X10X270MM
-
87910805400028A SPOILER -SET SX 2019SPOILER -SET SX 2019
-
950507016000 PRE-FORMED FUEL HOSE SXPRE-FORMED FUEL HOSE SX
-
100025060126 HH COLLAR SCREW M6X12HH COLLAR SCREW M6X12
-
1258031005000 CLAMP YDNAC 10128 12MMCLAMP YDNAC 10128 12MM
-
130770130023 O-RING 13,00X2,30O-RING 13,00X2,30
-
140017060205 SCREW FOR PLASTIC K60X20SCREW FOR PLASTIC K60X20
-
1550307005000 GAS COCK MIKUNI ON/OFFGAS COCK MIKUNI ON/OFF
-
160017060206 SCREW F. PLASTIC K60X20AL SW6SCREW F. PLASTIC K60X20AL SW6
-
160017060206 SCREW F. PLASTIC K60X20AL SW6SCREW F. PLASTIC K60X20AL SW6
-
1879107040060 SEAT COVERSEAT COVER
-
2079107040010 SEAT SCREWSEAT SCREW
Все узлы модели:
- ACCESSORIES KIT
- AIR FILTER
- CARBURETOR
- CLUTCH
- CLUTCH COVER
- COOLING SYSTEM
- CRANKSHAFT- PISTON
- CYLINDER- CYLINDER HEAD
- DECALS
- ENGINE CASE
- EXHAUST CONTROL
- EXHAUST SYSTEM
- FRAME
- FRONT BRAKE CALIPER
- FRONT BRAKE CONTROL
- FRONT FORK DISASSEMBLED
- FRONT FORK TRIPLE CLAMP
- FRONT WHEEL
- HANDLEBAR- CONTROLS
- IGNITION SYSTEM
- KICK STARTER
- MASK- FENDERS
- PRO LEVER LINKING
- REAR BRAKE CALIPER
- REAR BRAKE CONTROL
- REAR WHEEL
- REED VALVE CASE
- SHIFTING MECHANISM
- SHOCK ABSORBER
- SHOCK ABSORBER DISASSEMBLED
- SWING ARM
- • TANK- SEAT
- TRANSMISSION I - MAIN SHAFT
- TRANSMISSION II - COUNTERSHAFT
- WATER PUMP
- WP SHIMS FOR SETTING
