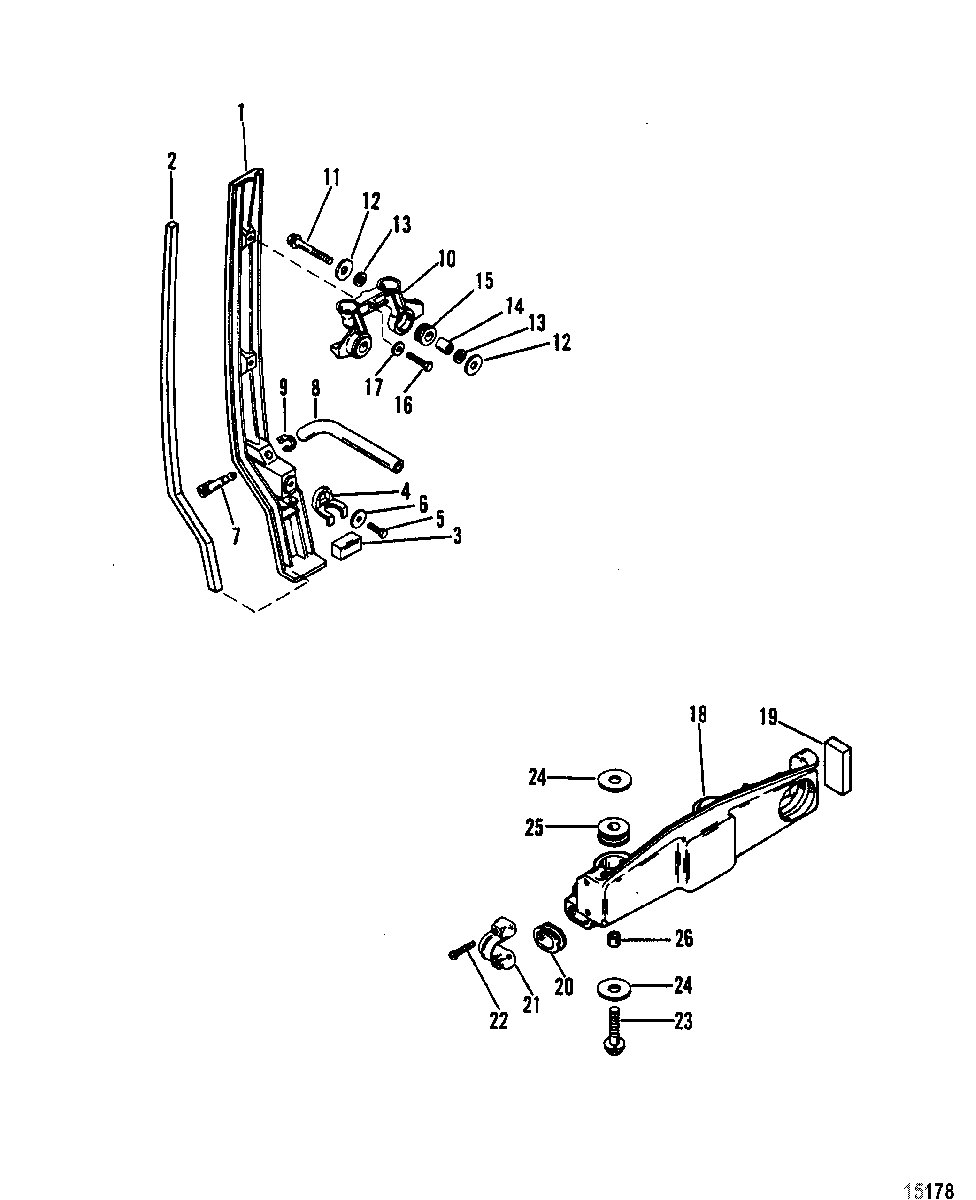

Cowl Mounting Brackets для Mariner - 100 (4 CYL.) 0A722297 THRU 0D283221
-
№АртикулНазвание
-
111189A1 BRACKET ASSEMBLY, BlackBRACKET ASSEMBLY, Black
-
111189A2 BRACKET ASSEMBLY, GrayBRACKET ASSEMBLY, Gray
-
111189A2 BRACKET ASSEMBLY, OysterBRACKET ASSEMBLY, Oyster
-
2183061 SEAL, Bracket, Black, GraySEAL, Bracket, Black, Gray
-
2193861 SEAL, Bracket, OysterSEAL, Bracket, Oyster
-
342935 SEALSEAL
-
411244 RESTRAINTRESTRAINT
-
510-400015 SCREW, (M5 x 10)SCREW, (M5 x 10)
-
612-42118 WASHERWASHER
-
742907 CONNECTOR, Black, GrayCONNECTOR, Black, Gray
-
7429071 CONNECTOR, OysterCONNECTOR, Oyster
-
832-8M0108349 TUBINGTUBING
-
954-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
10932642 HOUSINGHOUSING
-
1110-8M0103817 SCREWSCREW
-
1212-814803 WASHER
(Cylinder Block Cover Casting Number 1035-9195C1)WASHER
(Cylinder Block Cover Casting Number 1035-9195C1) -
1312-814806 WASHER, (.344 x .688 x .065) Stainless Steel
(Cylinder Block Cover Casting Number 1035-9195C1)WASHER, (.344 x .688 x .065) Stainless Steel
(Cylinder Block Cover Casting Number 1035-9195C1) -
1423-14395 BUSHING
(Cylinder Block Cover Casting Number 1035-9195C1)BUSHING
(Cylinder Block Cover Casting Number 1035-9195C1) -
1212-817274 WASHER, (.344 x 1.00 x .063) Stainless Steel
(Cylinder Block Cover Casting Number 1035-9195C2)WASHER, (.344 x 1.00 x .063) Stainless Steel
(Cylinder Block Cover Casting Number 1035-9195C2) -
1423-143951 BUSHING
(Cylinder Block Cover Casting Number 1035-9195C2)BUSHING
(Cylinder Block Cover Casting Number 1035-9195C2) -
1525-88033 GROMMET
(Cylinder Block Cover Casting Number 1035-9195C2)GROMMET
(Cylinder Block Cover Casting Number 1035-9195C2) -
1610-400038 SCREW, (M5 x 30)SCREW, (M5 x 30)
-
1712-42118 WASHERWASHER
-
1842952T BRACKET, Front, BlackBRACKET, Front, Black
-
1842952T6 BRACKET, Front, GrayBRACKET, Front, Gray
-
1842952T6 BRACKET, Front, OysterBRACKET, Front, Oyster
-
1967260 SEALSEAL
-
2025-67272 GROMMETGROMMET
-
2199447 RETAINERRETAINER
-
2210-69011 SCREW, (#10-32 x 1.00)SCREW, (#10-32 x 1.00)
-
2310-40011151 SCREW, (M8 x 35) Stainless SteelSCREW, (M8 x 35) Stainless Steel
-
2412-817274 WASHER, (.344 x 1.00 x .063) Stainless SteelWASHER, (.344 x 1.00 x .063) Stainless Steel
-
2525-88033 GROMMETGROMMET
-
2623-143951 BUSHINGBUSHING
