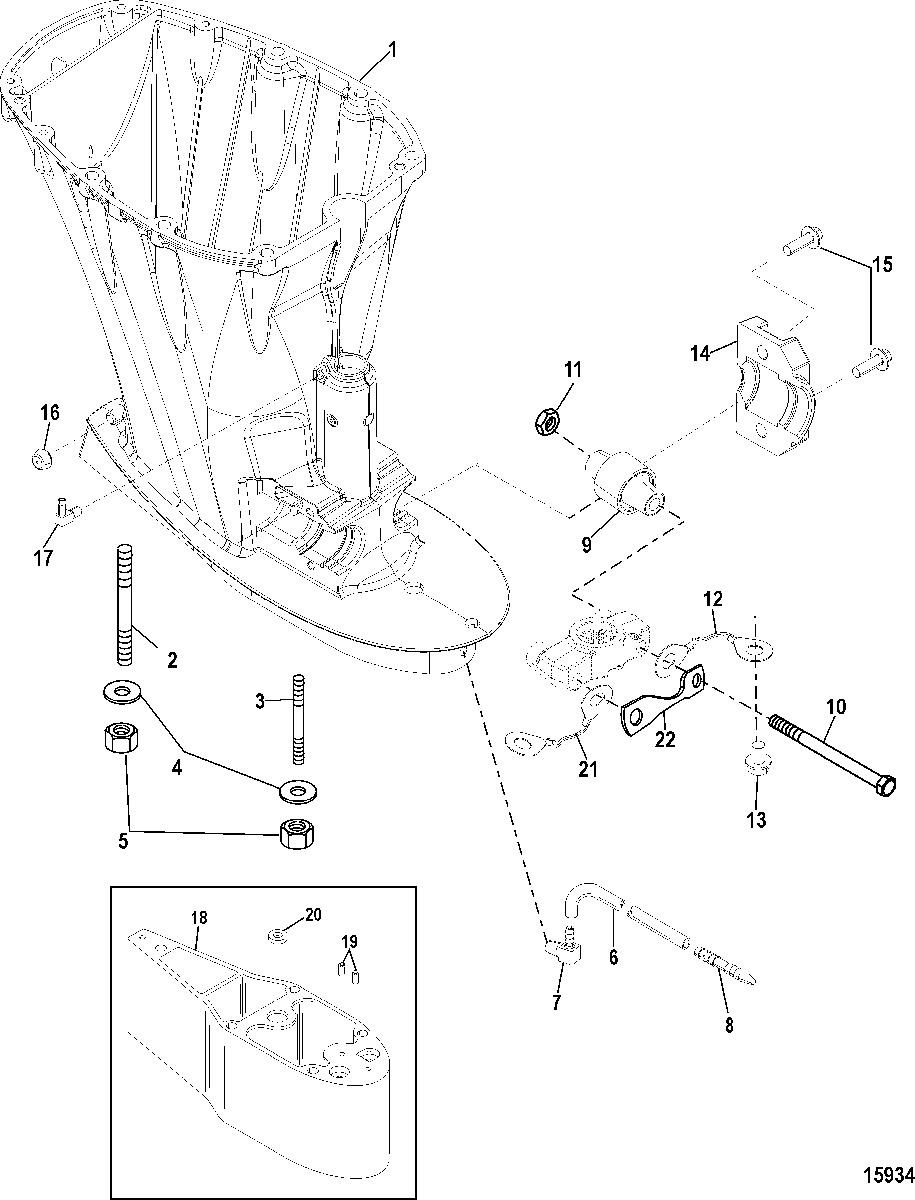

Driveshaft Housing для Mariner - 100 EFI (4-STROKE) 1B366823 THRU 2B094995
-
№АртикулНазвание
-
11507-858576T2 HOUSING, DriveshaftHOUSING, Driveshaft
-
216-903501 STUD, (M10 x 100)
LongSTUD, (M10 x 100)
Long -
216-8M0034467 STUD, (M10 x 227)
X-LongSTUD, (M10 x 227)
X-Long -
316-9035012 STUD, (M10 x 63)
LongSTUD, (M10 x 63)
Long -
316-8M0034462 STUD, (M10 x 190)
X-LongSTUD, (M10 x 190)
X-Long -
412-856774 WASHER, (.406 x .750 x .105) Stainless SteelWASHER, (.406 x .750 x .105) Stainless Steel
-
511-40140 NUT, (M10)NUT, (M10)
-
622-85822A15 PICKUP ASSEMBLY, SpeedometerPICKUP ASSEMBLY, Speedometer
-
722-433351 CONNECTOR, 90 Degree - With VibrasealCONNECTOR, 90 Degree - With Vibraseal
-
822-85822T CONNECTOR, StraightCONNECTOR, Straight
-
9898801 MOUNTMOUNT
-
1010-897925 SCREW, (M12 x 145)SCREW, (M12 x 145)
-
1111-897926 NUT, (M12), Nylon InsertNUT, (M12), Nylon Insert
-
1288238A10 CABLE ASSEMBLY, Ground, To Swivel BracketCABLE ASSEMBLY, Ground, To Swivel Bracket
-
1310-41508 SCREW, (.250-20 x .500) Stainless SteelSCREW, (.250-20 x .500) Stainless Steel
-
14858916T CLAMPCLAMP
-
1510-889833025 SCREW, (M8 x 25 MM)SCREW, (M8 x 25 MM)
-
168M0039082 CAPCAP
-
1722-855622 FITTING, ElbowFITTING, Elbow
-
1812092A3 SPACER KIT
X-LongSPACER KIT
X-Long -
1917-8M0084244 PIN, Dowel - With Hole (.375 x .625)
X-LongPIN, Dowel - With Hole (.375 x .625)
X-Long -
1917-43044 PIN, Dowel - Without Hole (.375 x .625)
X-LongPIN, Dowel - Without Hole (.375 x .625)
X-Long -
2023-813745 SPACER
X-LongSPACER
X-Long -
2188238T22 CABLE ASSEMBLYCABLE ASSEMBLY
-
228M0009134 STRAP, Continuity, Lower YokeSTRAP, Continuity, Lower Yoke
