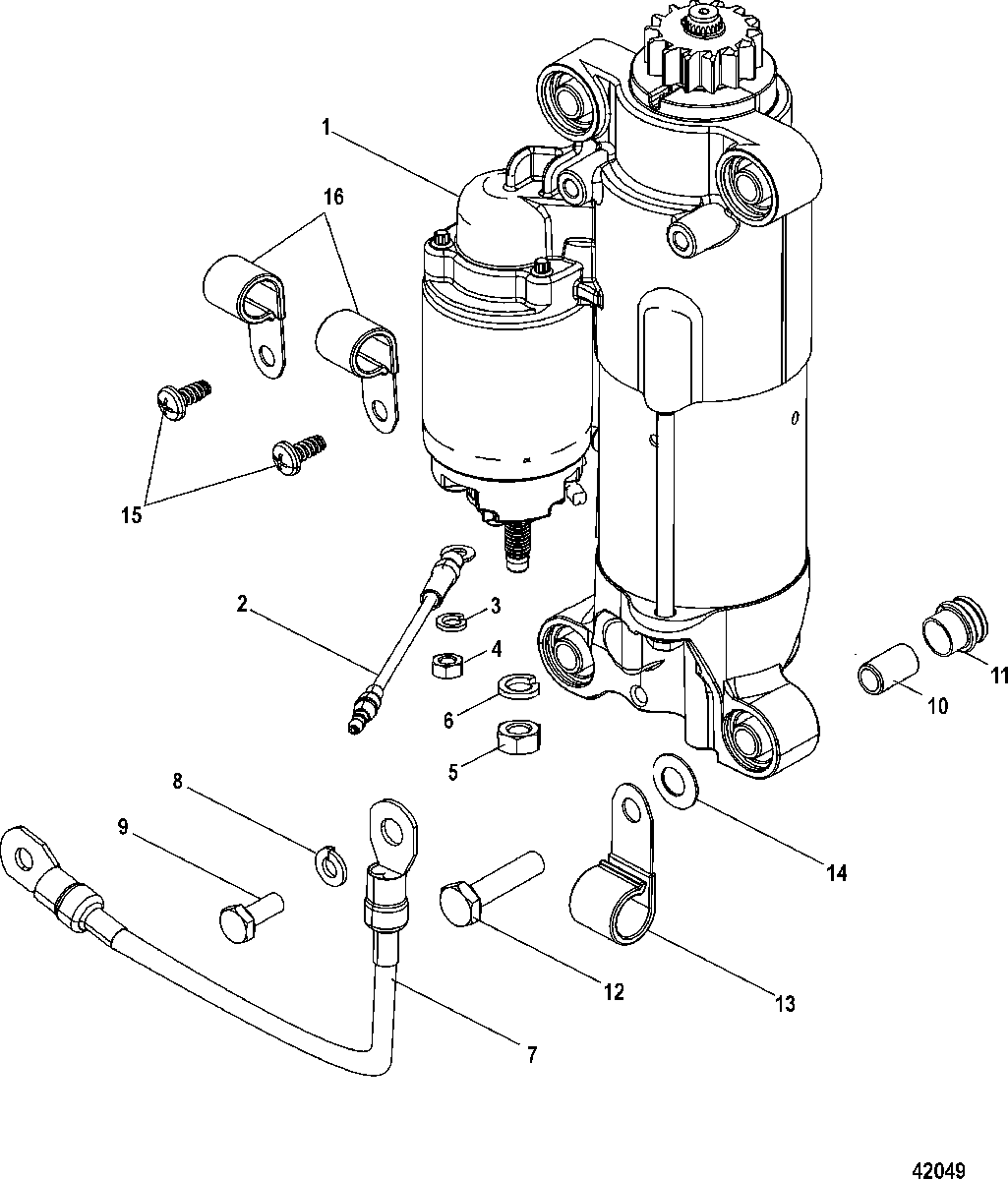

Starter Motor, 1B759588 and Up для Mariner - 100 EFI (4-STROKE) 1B366823 THRU 2B094995
-
№АртикулНазвание
-
150-879345T77 STARTER MOTOR ASSEMBLY, CompleteSTARTER MOTOR ASSEMBLY, Complete
-
284-898890T01 CABLE ASSEMBLYCABLE ASSEMBLY
-
313-400255 LOCKWASHER, (M5)LOCKWASHER, (M5)
-
411-400211 NUT, (M5) Stainless SteelNUT, (M5) Stainless Steel
-
511-400213 NUT, (M8) Stainless SteelNUT, (M8) Stainless Steel
-
613-26993 LOCKWASHER, (.312)LOCKWASHER, (.312)
-
784-93388A1 CABLE ASSEMBLY, (6.00 Inches) BlackCABLE ASSEMBLY, (6.00 Inches) Black
-
784-93388A8 CABLE ASSEMBLY, (12.5 Inchs) BlackCABLE ASSEMBLY, (12.5 Inchs) Black
-
813-400255 LOCKWASHER, (M5)LOCKWASHER, (M5)
-
910-30225 SCREW AND LOCKWASHER, (.312-18 x 1.00)SCREW AND LOCKWASHER, (.312-18 x 1.00)
-
1023-8M0047039 SPACERSPACER
-
118M0073891 MOUNTMOUNT
-
1210-88552645 SCREW, (M8X45)SCREW, (M8X45)
-
1354-814634 CLAMPCLAMP
-
1412-43430 WASHERWASHER
-
1510-8M0037204 SCREW, Nylon, push inSCREW, Nylon, push in
-
1654-8M0040205 CLAMPCLAMP
