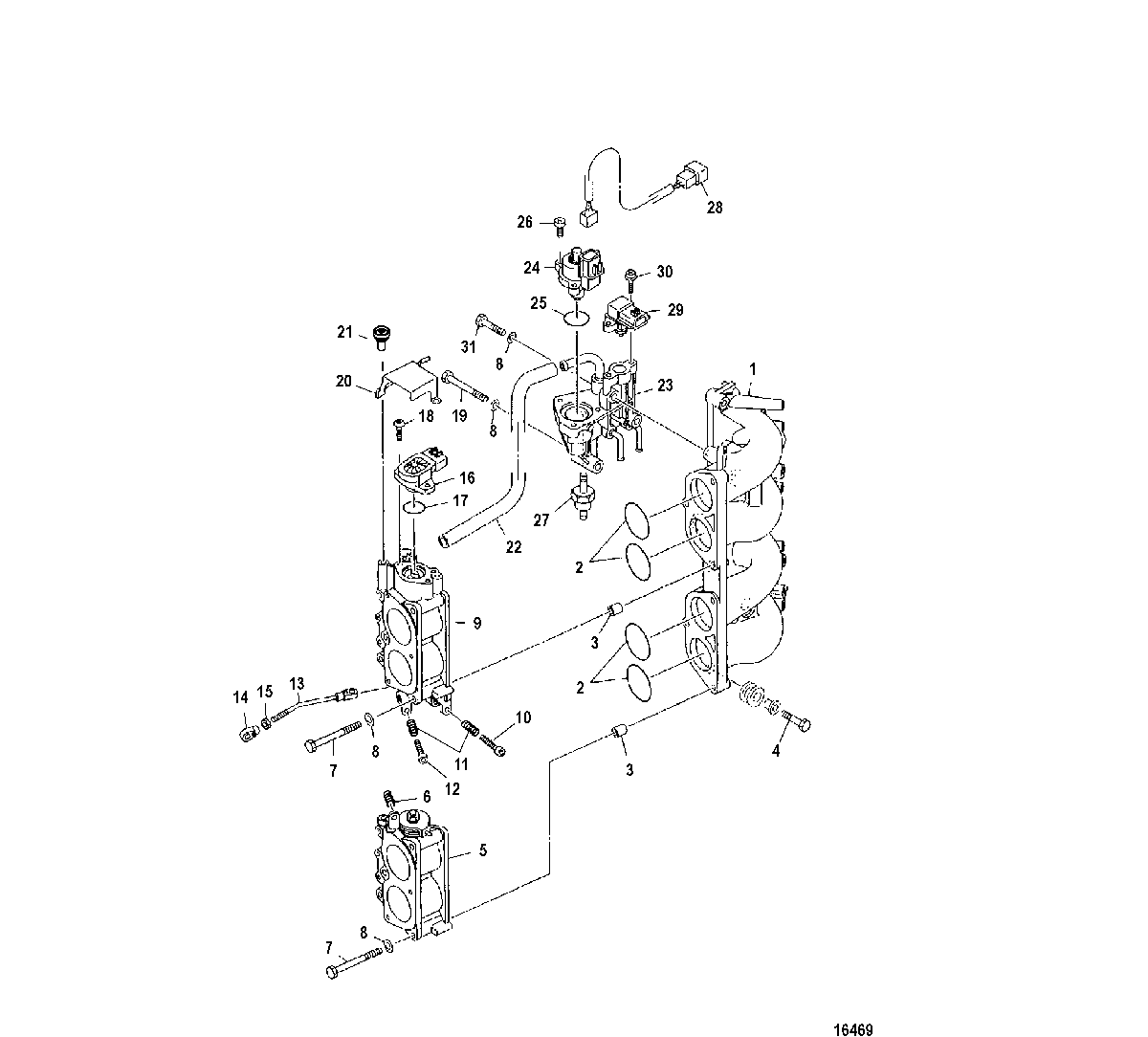

Intake для Mariner - 115 EFI (4-STROKE) 1B227000 THRU 1B366822
-
№АртикулНазвание
-
1880886T MANIFOLDMANIFOLD
-
225-881513 O-RINGO-RING
-
317-881512 PIN, DowelPIN, Dowel
-
410-881507 BOLT, (M6 x 25)BOLT, (M6 x 25)
-
5881441T4 THROTTLE BODY ASSEMBLYTHROTTLE BODY ASSEMBLY
-
624-881444 SPRINGSPRING
-
710-881510 BOLT, (M8 x 70)BOLT, (M8 x 70)
-
812-881508 WASHERWASHER
-
9881441T3 THROTTLE BODY ASSEMBLYTHROTTLE BODY ASSEMBLY
-
1010-881442 SCREWSCREW
-
1124-881444 SPRINGSPRING
-
1210-881443 SCREWSCREW
-
13881514 LINK JOINTLINK JOINT
-
14881515 LINK JOINTLINK JOINT
-
1511-83763M NUTNUT
-
16880884T SENSOR, ThrottleSENSOR, Throttle
-
1725-881504 O-RINGO-RING
-
1810-881502002 SCREWSCREW
-
1910-881506 BOLT, (M6 x 60)BOLT, (M6 x 60)
-
20881516 BRACKETBRACKET
-
2110-881971A1 SCREWSCREW
-
22881511 HOSEHOSE
-
-880883T1 CONTROL VALVE ASSEMBLYCONTROL VALVE ASSEMBLY
-
23881446T BODYBODY
-
24881447T CONTROL VALVECONTROL VALVE
-
2525-881448 O-RINGO-RING
-
2610-881449002 SCREWSCREW
-
2735-881501T FILTERFILTER
-
2884-881517T1 HARNESS ASSEMBLYHARNESS ASSEMBLY
-
29880885T SENSOR, PressureSENSOR, Pressure
-
3010-881509 SCREW, (M5 x 15)SCREW, (M5 x 15)
-
3110-881505 BOLT, (M6 x 24)BOLT, (M6 x 24)
-
-881440T04 INTAKE ASSEMBLYINTAKE ASSEMBLY
