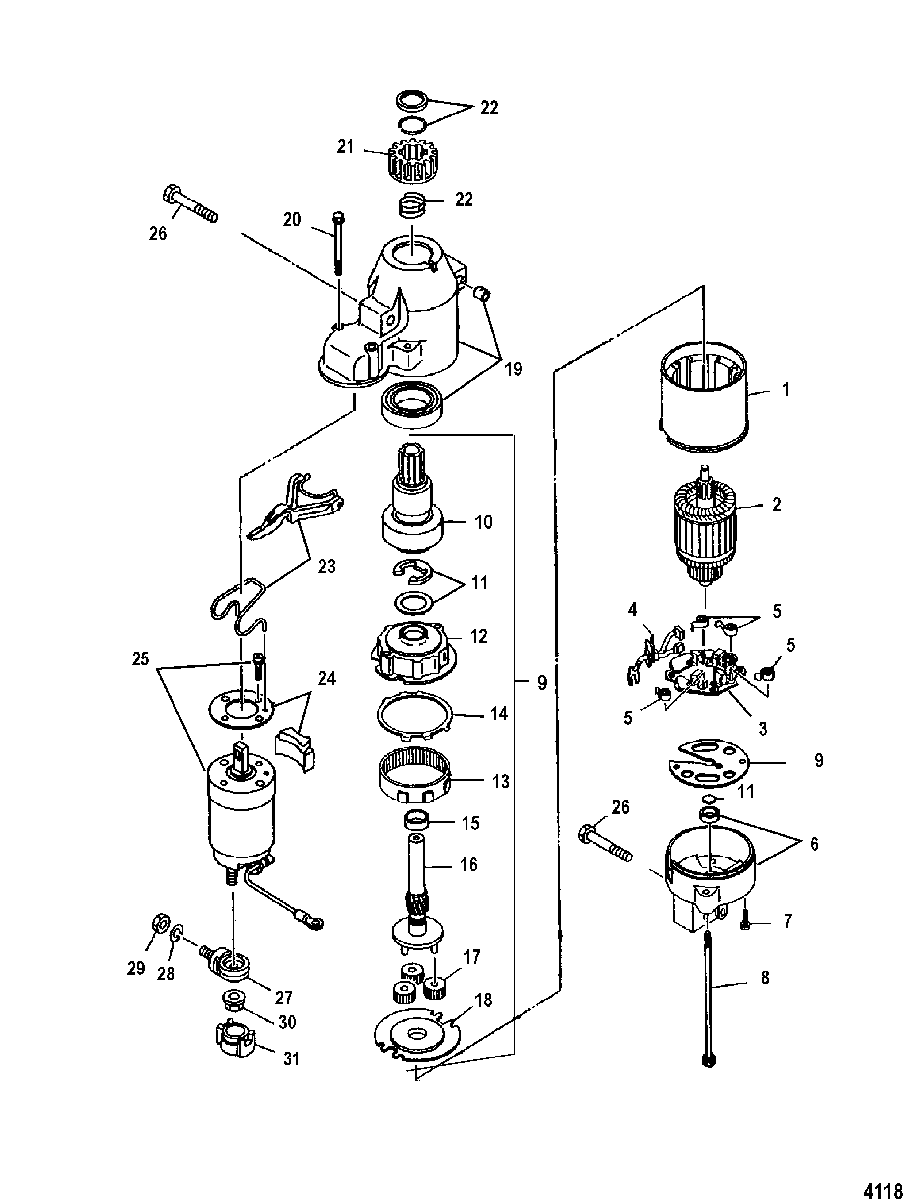

Starter Motor для Mariner - 115 EFI (4-STROKE) 1B227000 THRU 1B366822
-
№АртикулНазвание
-
-50-881368T2 STARTER MOTOR ASSEMBLYSTARTER MOTOR ASSEMBLY
-
1804314T STATORSTATOR
-
2804313T ARMATUREARMATURE
-
3881369T1 HOLDER ASSEMBLY, BrushHOLDER ASSEMBLY, Brush
-
4804316 BRUSH SETBRUSH SET
-
524-804317 SPRINGSPRING
-
6881370T BRACKETBRACKET
-
710-804337 SCREW, (M4 x 16)SCREW, (M4 x 16)
-
810-804335 THRU BOLT, (M6 x 120)THRU BOLT, (M6 x 120)
-
9804321T1 GEAR KITGEAR KIT
-
10804322 CLUTCHCLUTCH
-
1112-804330 WASHER KITWASHER KIT
-
12804324 BRACKETBRACKET
-
13804326 RING GEARRING GEAR
-
1427-804327 GASKETGASKET
-
1531-804325 BEARINGBEARING
-
16804323 SHAFT, PinionSHAFT, Pinion
-
1743-804329001 GEAR, IdlerGEAR, Idler
-
18804328 BRACKETBRACKET
-
19804331T COVERCOVER
-
2010-804336 BOLT, (M6 x 52)BOLT, (M6 x 52)
-
21804319 PINIONPINION
-
22804320 STOP SET, PinionSTOP SET, Pinion
-
23804332 LEVER KITLEVER KIT
-
24804334 COVERCOVER
-
25881371T1 RELAY, StarterRELAY, Starter
-
2610-804605 BOLT, (M8 x 45)BOLT, (M8 x 45)
-
27881373001 TERMINALTERMINAL
-
2813-881377 LOCKWASHERLOCKWASHER
-
2911-82382M NUTNUT
-
3011-881372 NUTNUT
-
31881374 COVERCOVER
