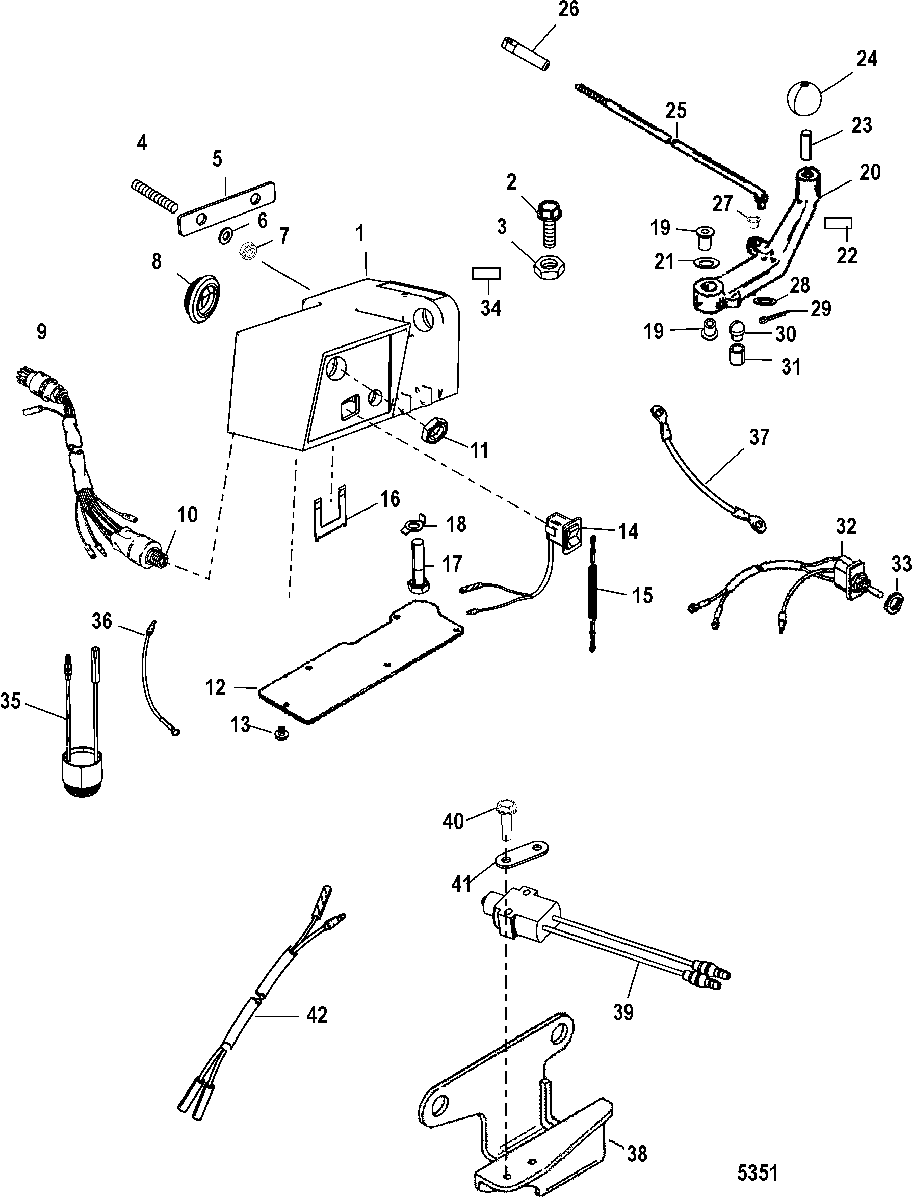

Steering Handle Components для Mariner - 125 (4 CYL.) 0P325500 & Up
-
№АртикулНазвание
-
112022A22 BRACKET ASSEMBLYBRACKET ASSEMBLY
-
210-849838 SCREW, (.375-24 x 1.250)SCREW, (.375-24 x 1.250)
-
311-8M0042636 NUT, (.375-24) Stainless SteelNUT, (.375-24) Stainless Steel
-
416-8M0034421 STUD, (.3125 x 2.50)STUD, (.3125 x 2.50)
-
5822263 SPACERSPACER
-
612-814806 WASHER, (.344 x .688 x .065) Stainless SteelWASHER, (.344 x .688 x .065) Stainless Steel
-
711-82670911 NUT, (.312-24) Stainless SteelNUT, (.312-24) Stainless Steel
-
8121051 GROMMETGROMMET
-
984-12649A5 HARNESS ASSEMBLYHARNESS ASSEMBLY
-
1087-88107A5 SWITCH KIT, Key
(See Key Chart for Keys)SWITCH KIT, Key
(See Key Chart for Keys) -
1111-879755 NUT, Special - Black Nylon
(Black Nylon)NUT, Special - Black Nylon
(Black Nylon) -
12120151 COVERCOVER
-
1310-878608 SCREW, (#10-16 x .500)SCREW, (#10-16 x .500)
-
1487-11083A4 SWITCH ASSEMBLY, StopSWITCH ASSEMBLY, Stop
-
158M0092850 LANYARD ASSEMBLYLANYARD ASSEMBLY
-
168M0032846 RETAINER, BrassRETAINER, Brass
-
1710-4000358 SCREW, (M8 x 50)SCREW, (M8 x 50)
-
1814-42981 TAB WASHERTAB WASHER
-
1923-889732 BUSHINGBUSHING
-
2012021A1 LEVER ASSEMBLY, ShiftLEVER ASSEMBLY, Shift
-
2112-815351 WASHERWASHER
-
22NSS NOT SOLD SEPARATE, Decal-ShiftNOT SOLD SEPARATE, Decal-Shift
-
2316-8M0034452 STUD, (.375-24 x 1.125)STUD, (.375-24 x 1.125)
-
2498530 KNOBKNOB
-
25495636 SHIFT RODSHIFT ROD
-
2648419T ROD ENDROD END
-
2723-26856 BUSHINGBUSHING
-
2812-35950 WASHER, (.273 x .437 x .031) Stainless SteelWASHER, (.273 x .437 x .031) Stainless Steel
-
2918-25191 COTTER PINCOTTER PIN
-
308M0091388 DETENT/SPRING KITDETENT/SPRING KIT
-
31NSS NOT SOLD SEPARATE, SpringNOT SOLD SEPARATE, Spring
-
3287-14645A4 TRIM SWITCH (Power Trim)TRIM SWITCH (Power Trim)
-
3349440 NUT, (.468-32) (Power Trim)NUT, (.468-32) (Power Trim)
-
34NSS NOT SOLD SEPARATE, Decal-Trim
(Component of 14645A 4 Trim Switch)NOT SOLD SEPARATE, Decal-Trim
(Component of 14645A 4 Trim Switch) -
35816051A2 HORN ASSEMBLYHORN ASSEMBLY
-
3684-11149A3 CABLE ASSEMBLYCABLE ASSEMBLY
-
3784-86324A2 CABLE ASSEMBLYCABLE ASSEMBLY
-
38824930T3 BRACKET
(X-Long)BRACKET
(X-Long) -
3987-8M0052927 SWITCH
(X-Long)SWITCH
(X-Long) -
4010-88075020 SCREW, (M3 x 20)
(X-Long)SCREW, (M3 x 20)
(X-Long) -
41824923 PLATE
(X-Long)PLATE
(X-Long) -
4284-824934A3 HARNESS ASSEMBLY
(X-Long)HARNESS ASSEMBLY
(X-Long) -
-12022A41 TILLER HANDLE KITTILLER HANDLE KIT
