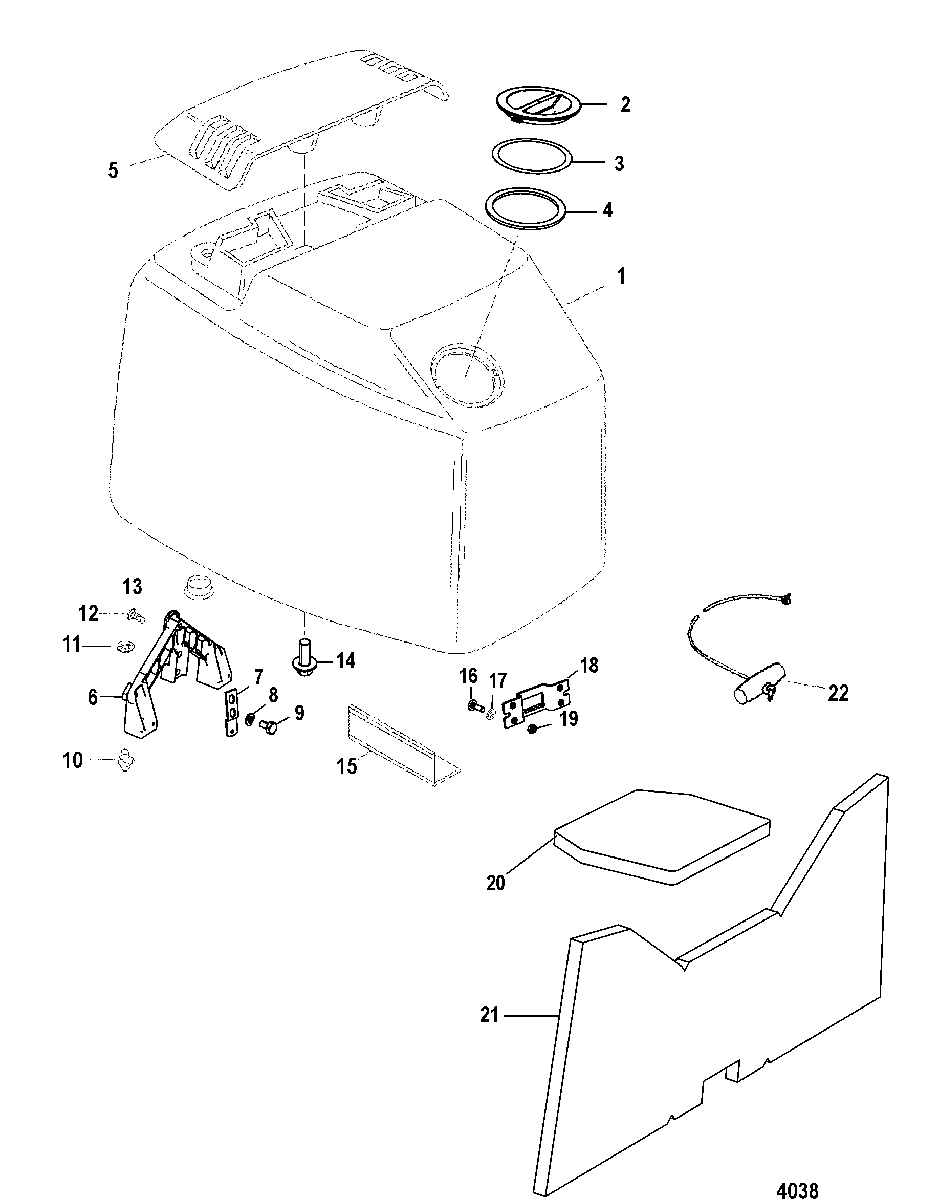

Top Cowl для Mariner - 125 (4 CYL.) 0P325500 & Up

№

Артикул

Название
1

4026-828354T8 TOP COWL ASSEMBLY, Black

TOP COWL ASSEMBLY, Black

228 730 ₽
1

4026-828354T9 TOP COWL ASSEMBLY, Silver

TOP COWL ASSEMBLY, Silver

82 060 ₽
1

4026-828354A10 TOP COWL ASSEMBLY, Silver Cowl And Black Cap
(Tracker)

TOP COWL ASSEMBLY, Silver Cowl And Black Cap
(Tracker)

108 860 ₽
2

828716A2 CAP

CAP

1 640 ₽
3

828352 SEAL

SEAL

330 ₽
4

8283511 SEAL

SEAL

1 020 ₽
5

8218751 CAP, Upper
(Black)

CAP, Upper
(Black)

23 040 ₽
5

8218751 CAP, Upper
(Silver)

CAP, Upper
(Silver)

23 040 ₽
6

819813T1 BRACKET, Cover Latch

BRACKET, Cover Latch

8 270 ₽
7

893763 BRACKET ASSEMBLY, Latch Roller

BRACKET ASSEMBLY, Latch Roller

2 930 ₽
8

13-53166 LOCKWASHER, (.312)

LOCKWASHER, (.312)

140 ₽
9

10-90285 SCREW, (.312-18 x .625)

SCREW, (.312-18 x .625)

180 ₽
10

F481434 GUIDE, Cowl Latch Bracket

GUIDE, Cowl Latch Bracket

1 060 ₽
11

11-91925 PUSH NUT

PUSH NUT

70 ₽
12

10-822512 SCREW, (.250-20 x 1.00)

SCREW, (.250-20 x 1.00)

250 ₽
13

19-823865 CAP PLUG

CAP PLUG

50 ₽
14

10-82130016 SCREW, (M6 x 16)

SCREW, (M6 x 16)

350 ₽
15

823830 SUPPORT

SUPPORT

1 100 ₽
16

10-8231871 SCREW, (M4 x 14.5)

SCREW, (M4 x 14.5)

400 ₽
17

13-26995 LOCKWASHER, (#8) Stainless Steel

LOCKWASHER, (#8) Stainless Steel

60 ₽
18

8233941 BRACKET

BRACKET

1 640 ₽
19

11-8237515 NUT, (M4)

NUT, (M4)

60 ₽
20

823583A02 SOUND BLANKET KIT
(Hot Glue Adhesive)

SOUND BLANKET KIT
(Hot Glue Adhesive)

4 230 ₽
20

823583A02 SOUND BLANKET KIT, (Pre-Applied Pressure Sensitive Adhesive)

SOUND BLANKET KIT, (Pre-Applied Pressure Sensitive Adhesive)

4 230 ₽
21

NSS NOT SOLD SEPARATE, Sound Blanket

NOT SOLD SEPARATE, Sound Blanket

0 ₽
22

47341A11 ROPE AND HANDLE KIT, Manual Starting

ROPE AND HANDLE KIT, Manual Starting

1 350 ₽
