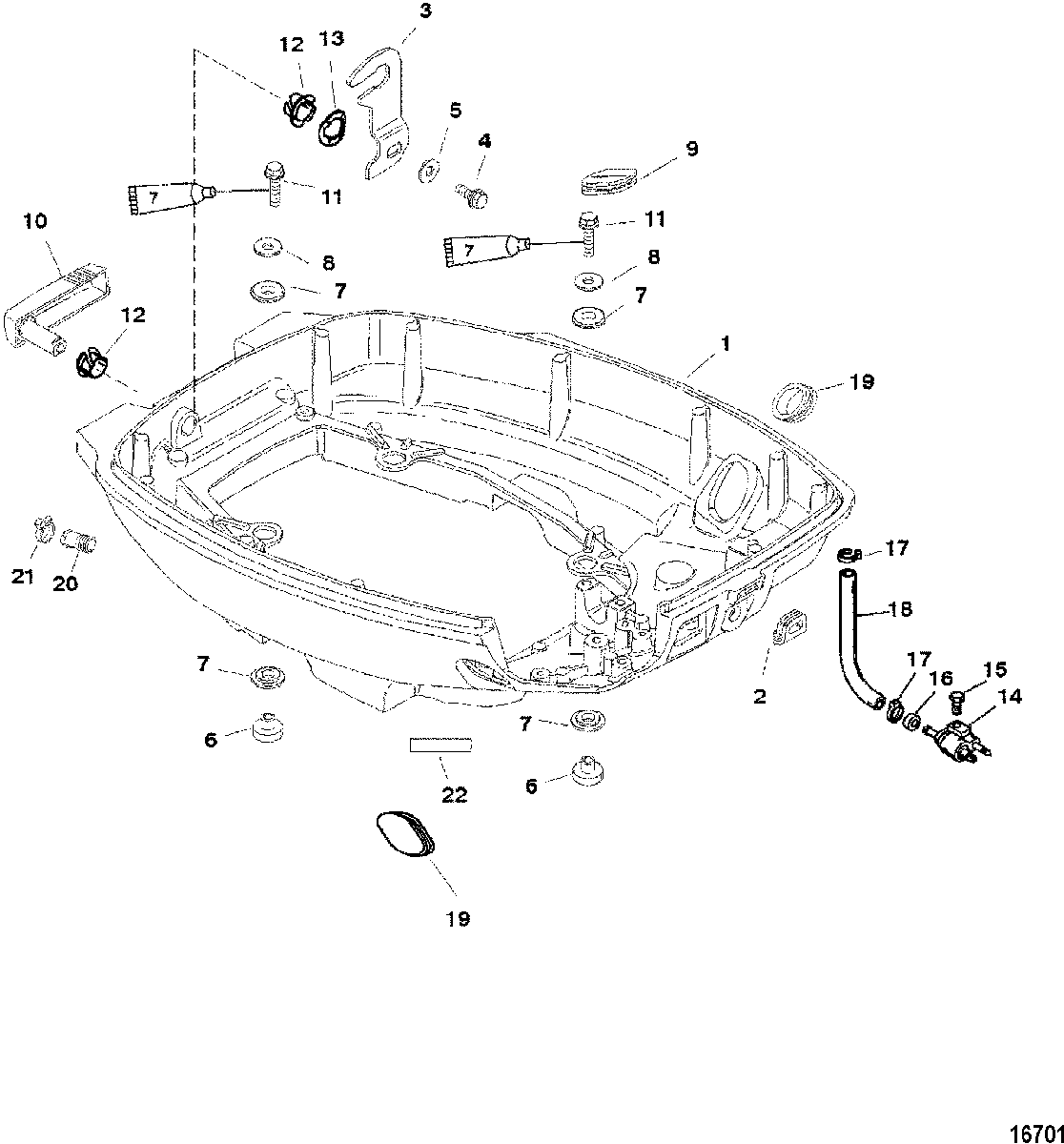

Bottom Cowl для Mariner - 15 (4-STROKE) 0P401000 & Up
-
№АртикулНазвание
-
14000-835416A1 BOTTOM COWLBOTTOM COWL
-
225-857002 COVERCOVER
-
3852480 LATCH HOOKLATCH HOOK
-
410-4006731 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
512-4002316 WASHERWASHER
-
623-826618 BUSHINGBUSHING
-
725-828129 GROMMETGROMMET
-
812-69057 WASHER, (.281 x .734 x .063)WASHER, (.281 x .734 x .063)
-
925-855289T GROMMETGROMMET
-
10825782F1 LEVER, Cowl LatchLEVER, Cowl Latch
-
1110-1993735 SCREW, (M6 x 35)SCREW, (M6 x 35)
-
1223-812707 BUSHINGBUSHING
-
1313-12134 WASHER, WaveWASHER, Wave
-
1422-15781A5 CONNECTOR, Fuel - BrassCONNECTOR, Fuel - Brass
-
1510-40011129 SCREW, (M6 x 25) Stainless SteelSCREW, (M6 x 25) Stainless Steel
-
1625-18202 GROMMET, Fuel ConnectorGROMMET, Fuel Connector
-
1754-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
1832-85682931 TUBING, (13.00 Inches)TUBING, (13.00 Inches)
-
19826037 PLUGPLUG
-
2022-813613 FITTINGFITTING
-
2154-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
2237-856924 DECAL, Bodensee CertificationDECAL, Bodensee Certification
