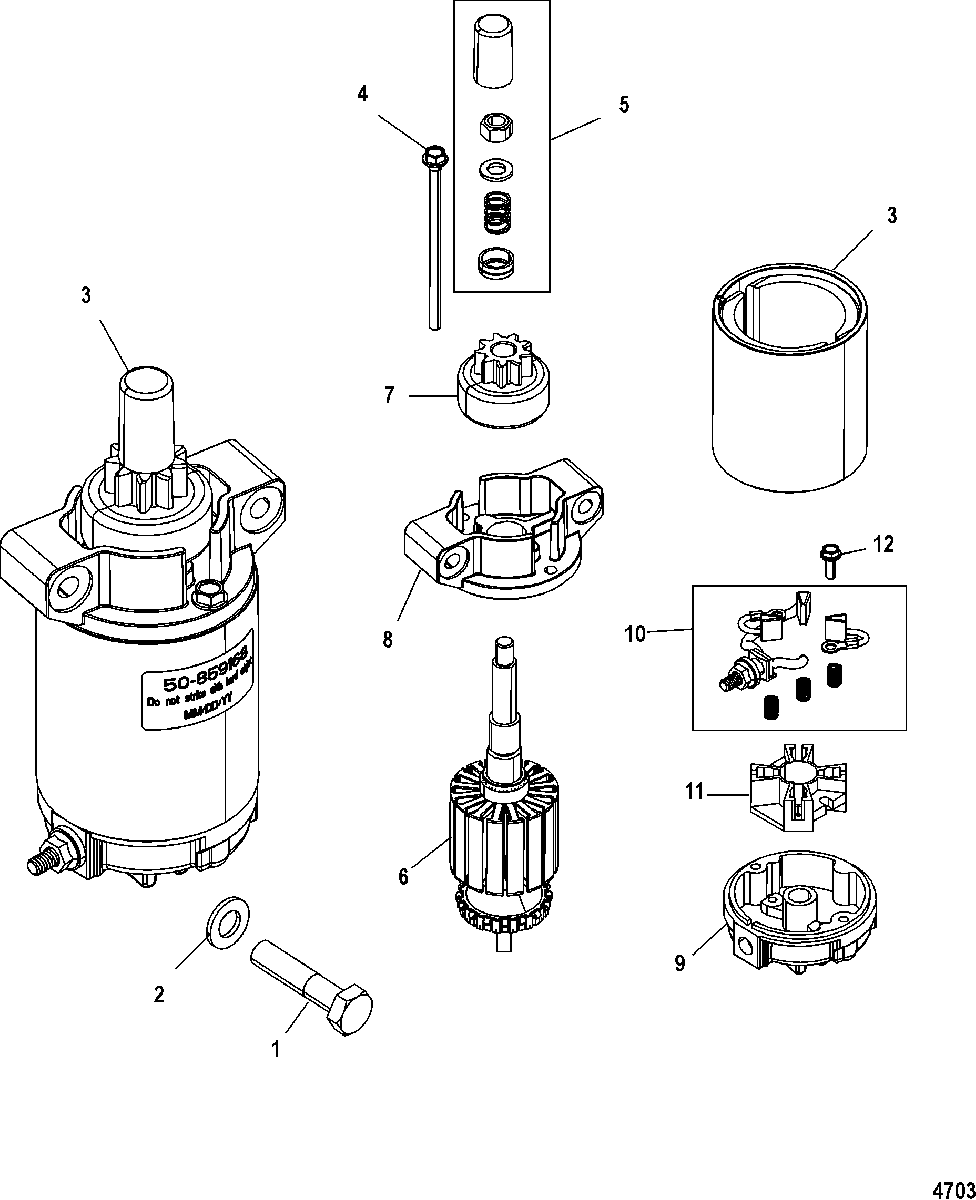

Starter Motor для Mariner - 15 (4-STROKE) 0P401000 & Up
-
№АртикулНазвание
-
110-4000357 SCREW, (M8 x 45)SCREW, (M8 x 45)
-
212-4002317 WASHER
(Bottom)WASHER
(Bottom) -
350-859168T STARTER MOTOR ASSEMBLYSTARTER MOTOR ASSEMBLY
-
410-965662 THRU BOLTTHRU BOLT
-
5891752 DRIVE KITDRIVE KIT
-
68236385 ARMATUREARMATURE
-
750-893886T PINIONPINION
-
88236391 DRIVE CAPDRIVE CAP
-
98119012 CAP, CommutatorCAP, Commutator
-
10898265016 BRUSH/SPRING KITBRUSH/SPRING KIT
-
11898265014 HOLDERHOLDER
-
12F15158 SCREWSCREW
