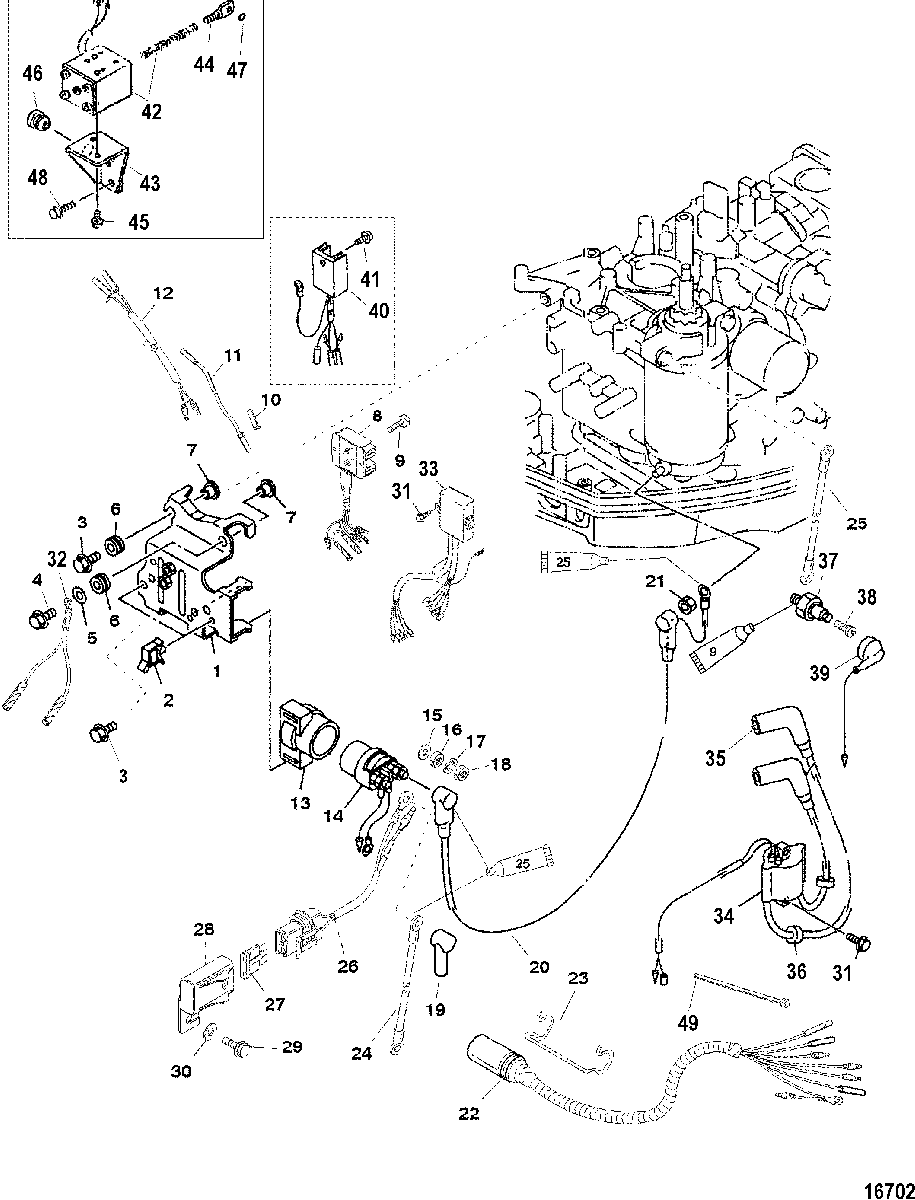

Electrical Components для Mariner - 15 (4-STROKE) 1B227000 THRU 1B727495

№

Артикул

Название
1

835403T1 BRACKET
(Electric)

BRACKET
(Electric)

3 060 ₽
1

835403T BRACKET
(Manual)

BRACKET
(Manual)

3 140 ₽
2

54-855686 CLAMP

CLAMP

70 ₽
3

10-855810 BOLT, (M6 x 20)

BOLT, (M6 x 20)

90 ₽
4

10-8248326 SCREW, (M6 x 25)

SCREW, (M6 x 25)

130 ₽
5

12-855811 WASHER

WASHER

50 ₽
6

25-97687M GROMMET

GROMMET

530 ₽
7

23-852473 COLLAR

COLLAR

640 ₽
8

854650T2 RECTIFIER/REGULATOR
(Electric)

RECTIFIER/REGULATOR
(Electric)

13 700 ₽
9

10-811188T BOLT, (M6 x 16)
(Electric)

BOLT, (M6 x 16)
(Electric)

830 ₽
10

13540 CAP, Female
(Electric)

CAP, Female
(Electric)

260 ₽
10

13541 PLUG, Male
(Electric)

PLUG, Male
(Electric)

230 ₽
11

84-11149A43 CABLE ASSEMBLY, Brown/White
(Electric)

CABLE ASSEMBLY, Brown/White
(Electric)

3 880 ₽
12

84-824372A1 CABLE ASSEMBLY
(Electric)

CABLE ASSEMBLY
(Electric)

4 890 ₽
13

8M0010250 BRACKET
(Electric)

BRACKET
(Electric)

2 050 ₽
14

89-8M0098898 RELAY
(Electric)

RELAY
(Electric)

3 890 ₽
15

12-827205 WASHER
(Electric)

WASHER
(Electric)

70 ₽
16

11-827204 NUT, (M6)
(Electric)

NUT, (M6)
(Electric)

90 ₽
17

13-400256 LOCKWASHER, (M6)
(Electric)

LOCKWASHER, (M6)
(Electric)

270 ₽
18

11-400212 NUT, (M6) Stainless Steel
(Electric)

NUT, (M6) Stainless Steel
(Electric)

170 ₽
19

85-804284001 BOOT
(Electric)

BOOT
(Electric)

370 ₽
20

855742 LEAD WIRE
(Electric)

LEAD WIRE
(Electric)

1 060 ₽
21

11-94330 NUT, (.250-20) Brass
(Electric)

NUT, (.250-20) Brass
(Electric)

120 ₽
22

84-859312T1 HARNESS ASSEMBLY, Engine Wiring
(Electric)

HARNESS ASSEMBLY, Engine Wiring
(Electric)

7 790 ₽
23

92753 RETAINER
(Electric)

RETAINER
(Electric)

450 ₽
24

84-88439A29 CABLE ASSEMBLY, Battery - Positive
(Electric)

CABLE ASSEMBLY, Battery - Positive
(Electric)

3 060 ₽
25

84-88439A30 CABLE ASSEMBLY, Battery - Negative
(Electric)

CABLE ASSEMBLY, Battery - Negative
(Electric)

3 030 ₽
26

84-859451A1 HARNESS ASSEMBLY, Fuse

HARNESS ASSEMBLY, Fuse

1 870 ₽
27

88-812619 FUSE, Yellow - 20 Ampere

FUSE, Yellow - 20 Ampere

290 ₽
28

828054 COVER, Fuse

COVER, Fuse

440 ₽
29

10-82130012 SCREW, (M6 x 12)

SCREW, (M6 x 12)

150 ₽
30

12-29245 WASHER, (.281 x .500 x .060) Stainless Steel

WASHER, (.281 x .500 x .060) Stainless Steel

120 ₽
31

10-84058M BOLT, (M6 x 20)

BOLT, (M6 x 20)

230 ₽
32

84-824912A6 CABLE ASSEMBLY
(Handle)

CABLE ASSEMBLY
(Handle)

560 ₽
33

835401T1 CDI UNIT

CDI UNIT

18 440 ₽
34

855685T COIL ASSEMBLY, Ignition - Includes Leads and Boots

COIL ASSEMBLY, Ignition - Includes Leads and Boots

12 740 ₽
35

84-825102A1 HIGH TENSION LEAD

HIGH TENSION LEAD

3 200 ₽
36

25-82069M GROMMET

GROMMET

230 ₽
37

853524 SWITCH, Oil Pressure

SWITCH, Oil Pressure

4 950 ₽
38

NSS NOT SOLD SEPARATE, Screw

NOT SOLD SEPARATE, Screw

0 ₽
39

853537 LEAD WIRE

LEAD WIRE

800 ₽
40

835406 RECTIFIER/REGULATOR
(Manual)

RECTIFIER/REGULATOR
(Manual)

6 550 ₽
41

10-811188T BOLT, (M6 x 16)
(Manual)

BOLT, (M6 x 16)
(Manual)

830 ₽
42

89-853598T SOLENOID ASSEMBLY
(Electric Non/Handle)

SOLENOID ASSEMBLY
(Electric Non/Handle)

5 030 ₽
43

853599T BRACKET
(Electric Non/Handle)

BRACKET
(Electric Non/Handle)

2 510 ₽
44

853601 HOOK WIRE
(Electric Non/Handle)

HOOK WIRE
(Electric Non/Handle)

410 ₽
45

10-855739 SCREW, (M5 x 8)
(Electric Non/Handle)

SCREW, (M5 x 8)
(Electric Non/Handle)

110 ₽
46

25-91782M GROMMET
(Electric Non/Handle)

GROMMET
(Electric Non/Handle)

280 ₽
47

25-82258M O-RING
(Electric Non/Handle)

O-RING
(Electric Non/Handle)

190 ₽
48

10-811188T BOLT, (M6 x 16)
(Electric Non/Handle)

BOLT, (M6 x 16)
(Electric Non/Handle)

830 ₽
49

54-816311T TIE STRAP, (8.00 Inches)

TIE STRAP, (8.00 Inches)

40 ₽
-

802733A98 POWERHEAD ASSEMBLY
(Electric)

POWERHEAD ASSEMBLY
(Electric)

258 340 ₽
-

879783A01 POWERHEAD ASSEMBLY
(Manual)

POWERHEAD ASSEMBLY
(Manual)

224 000 ₽
