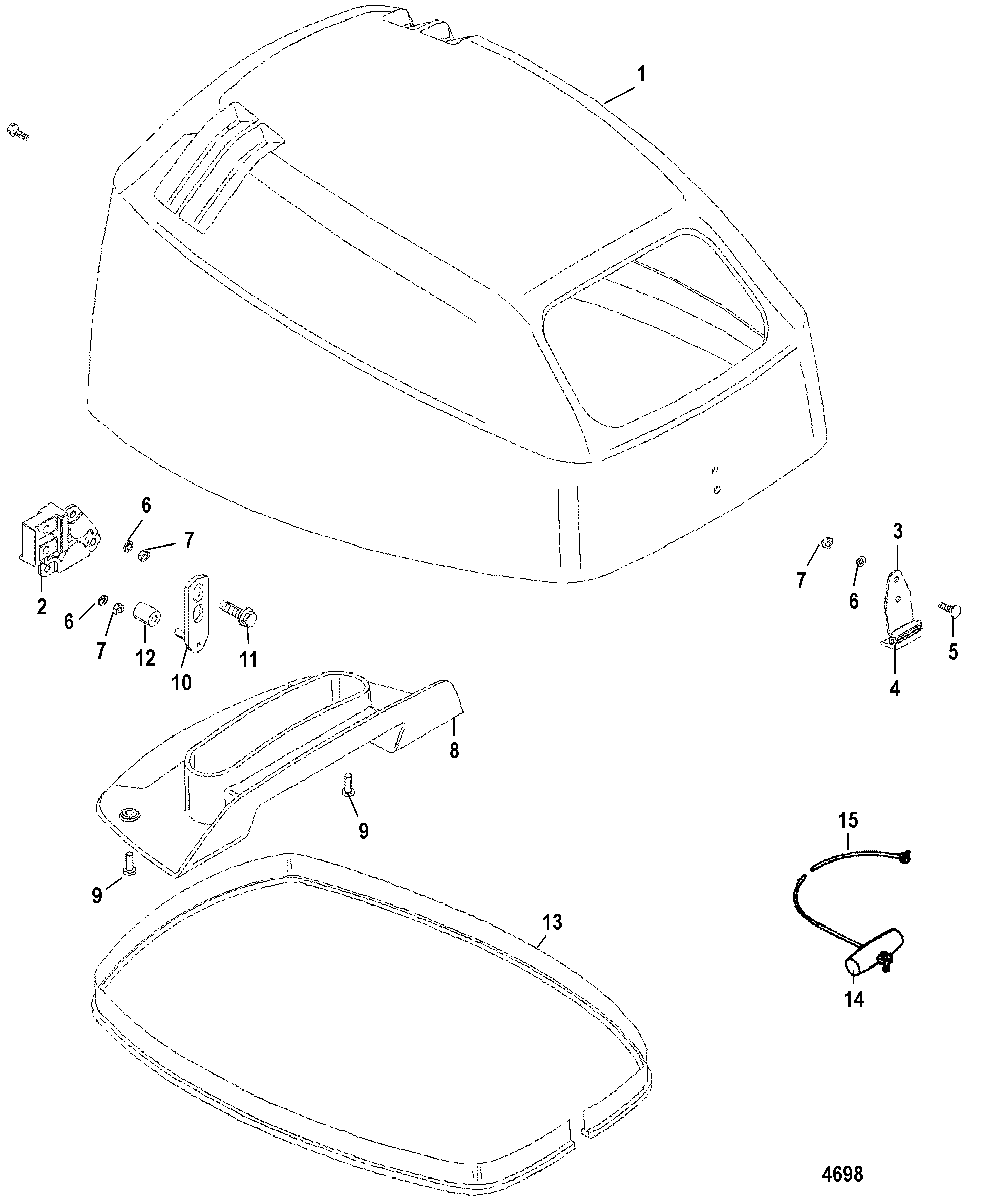

Top Cowl для Mariner - 15 (4-STROKE) 1B227000 THRU 1B727495
-
№АртикулНазвание
-
1114-852413T3 TOP COWL ASSEMBLY
(Black)TOP COWL ASSEMBLY
(Black) -
1114-852413T4 TOP COWL ASSEMBLY
(Silver)TOP COWL ASSEMBLY
(Silver) -
2852490F BRACKETBRACKET
-
3827702T COVERCOVER
-
4826649 LATCHLATCH
-
510-8231872 SCREW, (M4 x 12)SCREW, (M4 x 12)
-
613-26995 LOCKWASHER, (#8) Stainless SteelLOCKWASHER, (#8) Stainless Steel
-
711-8237515 NUT, (M4)NUT, (M4)
-
8NSS NOT SOLD SEPARATE, InsertNOT SOLD SEPARATE, Insert
-
910-95700 SCREW, (#10-16 x .50)SCREW, (#10-16 x .50)
-
10852491A1 BRACKET ASSEMBLYBRACKET ASSEMBLY
-
1110-40011126 SCREW, (M6 x 13) Stainless SteelSCREW, (M6 x 13) Stainless Steel
-
1218745 ROLLERROLLER
-
138M0043391 SEAL, CowlSEAL, Cowl
-
1447341A11 ROPE AND HANDLE KIT, Manual StartingROPE AND HANDLE KIT, Manual Starting
-
15NSS NOT SOLD SEPARATE, Starter RopeNOT SOLD SEPARATE, Starter Rope
-
-98-8M0098722 DECAL SET
(15 Mercury)DECAL SET
(15 Mercury) -
-37-802740A06 DECAL SET
(15 Mariner)DECAL SET
(15 Mariner) -
-37-881842A06 DECAL SET
(Mercury 13.5)DECAL SET
(Mercury 13.5) -
-37-881843A06 DECAL SET
(Mariner 13.5)DECAL SET
(Mariner 13.5)
