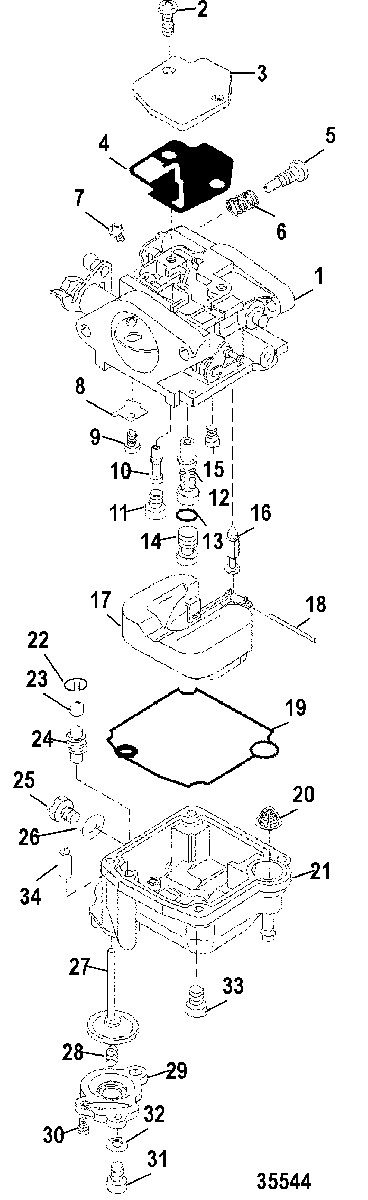

Carburetor для Mariner - 15 (4-STROKE) 9973100 THRU 0P016999
-
№АртикулНазвание
-
13323-835382T04 CARBURETORCARBURETOR
-
210-809571 SCREW, (M4 x 10)SCREW, (M4 x 10)
-
38095721 COVERCOVER
-
4809573 GASKETGASKET
-
510-8095781 SCREW, ThrottleSCREW, Throttle
-
624-8095791 SPRINGSPRING
-
710-811248M SCREW, (M4 x 5)SCREW, (M4 x 5)
-
8802694 PLATEPLATE
-
910-8026921 SCREW, (M3 x 5)SCREW, (M3 x 5)
-
108027011 PILOT JET, (#45)PILOT JET, (#45)
-
1119-802702 PLUGPLUG
-
12802700 MAIN NOZZLEMAIN NOZZLE
-
1325-11802M O-RINGO-RING
-
14802701 JET, Main (#104)JET, Main (#104)
-
1510-8095711 SCREW, (M4 x 5)SCREW, (M4 x 5)
-
168095701 VALVE, NeedleVALVE, Needle
-
17809569 FLOATFLOAT
-
1817-11794M PINPIN
-
1927-802699 GASKETGASKET
-
2035-802704 FILTERFILTER
-
21802690T3 FLOAT BOWL ASSEMBLYFLOAT BOWL ASSEMBLY
-
2253-802693 RING, RetainingRING, Retaining
-
23802698 CAPCAP
-
24802697 SEALSEAL
-
2510-8095783 SCREW, Drain (M5 x 6)SCREW, Drain (M5 x 6)
-
2627-802691 GASKETGASKET
-
27802695 DIAPHRAGMDIAPHRAGM
-
2824-802696 SPRINGSPRING
-
29802705 COVERCOVER
-
3010-802692 SCREW, (M4 x 8)SCREW, (M4 x 8)
-
3122-14183M PLUG, Drain (M4 x 5)PLUG, Drain (M4 x 5)
-
3227-8026911 GASKETGASKET
-
3310-81758M SCREW, (M4 x 12)SCREW, (M4 x 12)
-
3421-802703 CHECK VALVECHECK VALVE
-
-802706A1 REPAIR KIT, CarburetorREPAIR KIT, Carburetor
