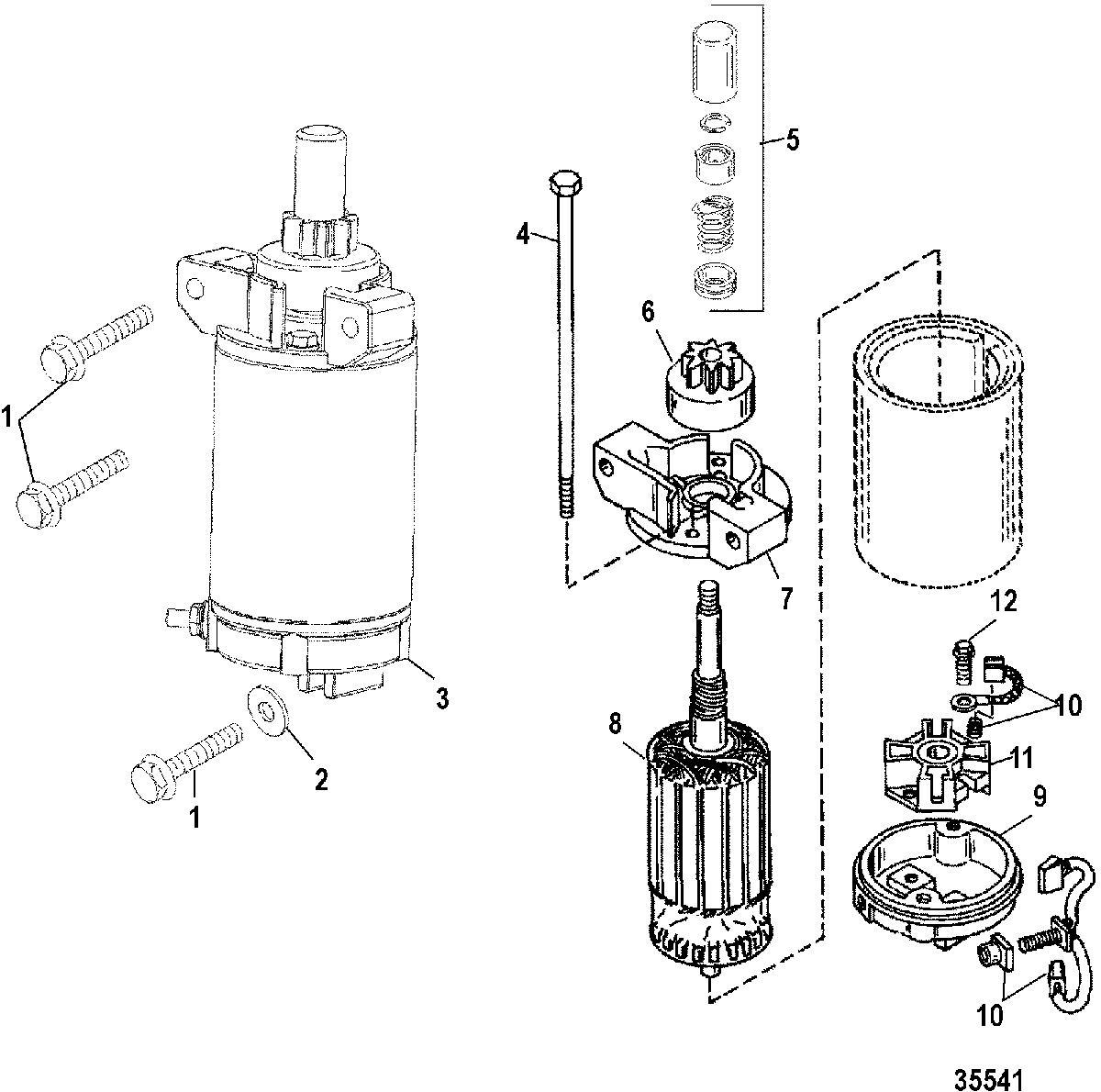

Starter Motor для Mariner - 15 (4-STROKE) 9973100 THRU 0P016999
-
№АртикулНазвание
-
110-4000357 SCREW, (M8 x 45)SCREW, (M8 x 45)
-
212-4002317 WASHER, BottomWASHER, Bottom
-
350-859168T STARTER MOTOR ASSEMBLYSTARTER MOTOR ASSEMBLY
-
410-965662 THRU BOLTTHRU BOLT
-
5906432 DRIVE KITDRIVE KIT
-
6685752 PINIONPINION
-
78236391 DRIVE CAPDRIVE CAP
-
88236383 ARMATUREARMATURE
-
98119012 CAP, CommutatorCAP, Commutator
-
10898265016 BRUSH/SPRING KITBRUSH/SPRING KIT
-
11898265014 HOLDERHOLDER
-
12F15158 SCREWSCREW
