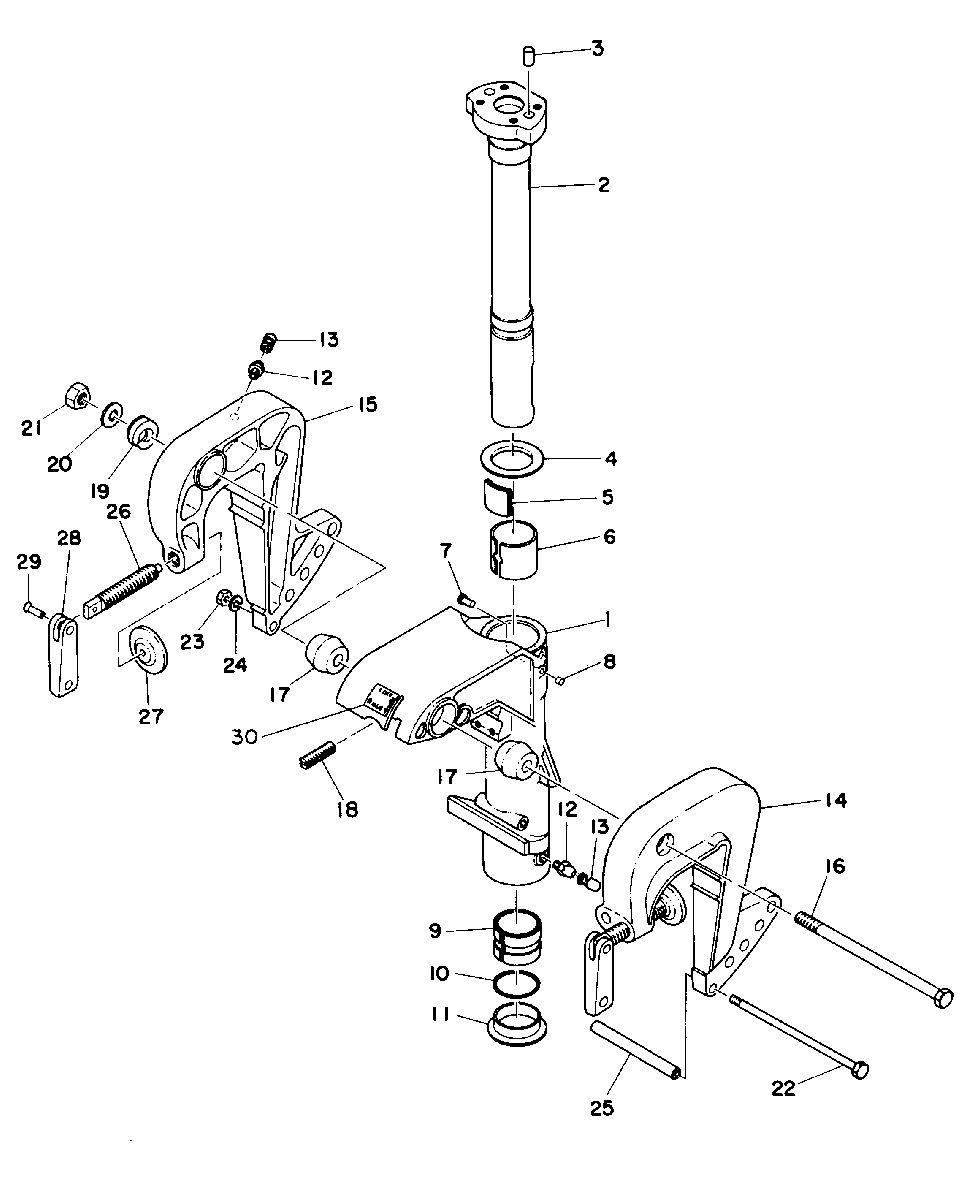

CLAMP AND SWIVEL BRACKET для Mariner - 15A 651-300100 AND BELOW
-
№АртикулНазвание
-
11485-6756M SWIVEL BRACKETSWIVEL BRACKET
-
280880M SHAFT, STEERING PIVOTSHAFT, STEERING PIVOT
-
317-82368M PIN, DOWEL-PIVOT SHAFTPIN, DOWEL-PIVOT SHAFT
-
412-81872M COLLAR, THRUST-PIVOT SHAFTCOLLAR, THRUST-PIVOT SHAFT
-
580225M PLATE, FRICTIONPLATE, FRICTION
-
623-81960M BUSHING, PIVOT SHAFT-UPPERBUSHING, PIVOT SHAFT-UPPER
-
717-81887M PIN, PIVOT SHAFTPIN, PIVOT SHAFT
-
822-81917M PLUG, PIVOT SHAFTPLUG, PIVOT SHAFT
-
923-81956M BUSHING, PIVOT SHAFT-LOWERBUSHING, PIVOT SHAFT-LOWER
-
1025-82273M O-RING, PIVOT SHAFT BUSHINGO-RING, PIVOT SHAFT BUSHING
-
1123-81958M COLLAR, THRUST-PIVOT SHAFTCOLLAR, THRUST-PIVOT SHAFT
-
1222-82369M FITTING, GREASEFITTING, GREASE
-
1381439M CAP, GREASE FITTINGCAP, GREASE FITTING
-
141484-6754M CLAMP BRACKET, PORTCLAMP BRACKET, PORT
-
151484-6755M CLAMP BRACKET, STARBOARDCLAMP BRACKET, STARBOARD
-
1610-81708M BOLT, CLAMP BRACKETBOLT, CLAMP BRACKET
-
1780230M MOUNT, RUBBER CLAMP BRACKETMOUNT, RUBBER CLAMP BRACKET
-
1810-81721M SCREW, FRICTION PLATE ADJUSTINGSCREW, FRICTION PLATE ADJUSTING
-
1924-82101M SPRING, CLAMP BRACKET BOLTSPRING, CLAMP BRACKET BOLT
-
2012-81806M WASHER, CLAMP BRACKET BOLTWASHER, CLAMP BRACKET BOLT
-
2111-82395M NUT, CLAMP BRACKET BOLTNUT, CLAMP BRACKET BOLT
-
2210-81724M BOLT, CLAMP BRACKET
SERIAL 00000000-00012755BOLT, CLAMP BRACKET
SERIAL 00000000-00012755 -
2210-82921M BOLT, CLAMP BRACKET
SERIAL 00012756-09999999BOLT, CLAMP BRACKET
SERIAL 00012756-09999999 -
2311-82389M NUT, CLAMP BRACKET BOLTNUT, CLAMP BRACKET BOLT
-
2413-82212M LOCK WASHER, CLAMP BRACKET BOLTLOCK WASHER, CLAMP BRACKET BOLT
-
2523-82116M SPACER, CLAMP BRACKET BOLTSPACER, CLAMP BRACKET BOLT
-
2610-81756M SCREW, TRANSOM CLAMPSCREW, TRANSOM CLAMP
-
2712-80638M PAD, TRANSOM CLAMP SCREWPAD, TRANSOM CLAMP SCREW
-
28809959M HANDLE, TRANSOM CLAMP SCREWHANDLE, TRANSOM CLAMP SCREW
-
2917-81888M PIN, TRANSOM CLAMP SCREWPIN, TRANSOM CLAMP SCREW
-
3080891M INDCATORINDCATOR
