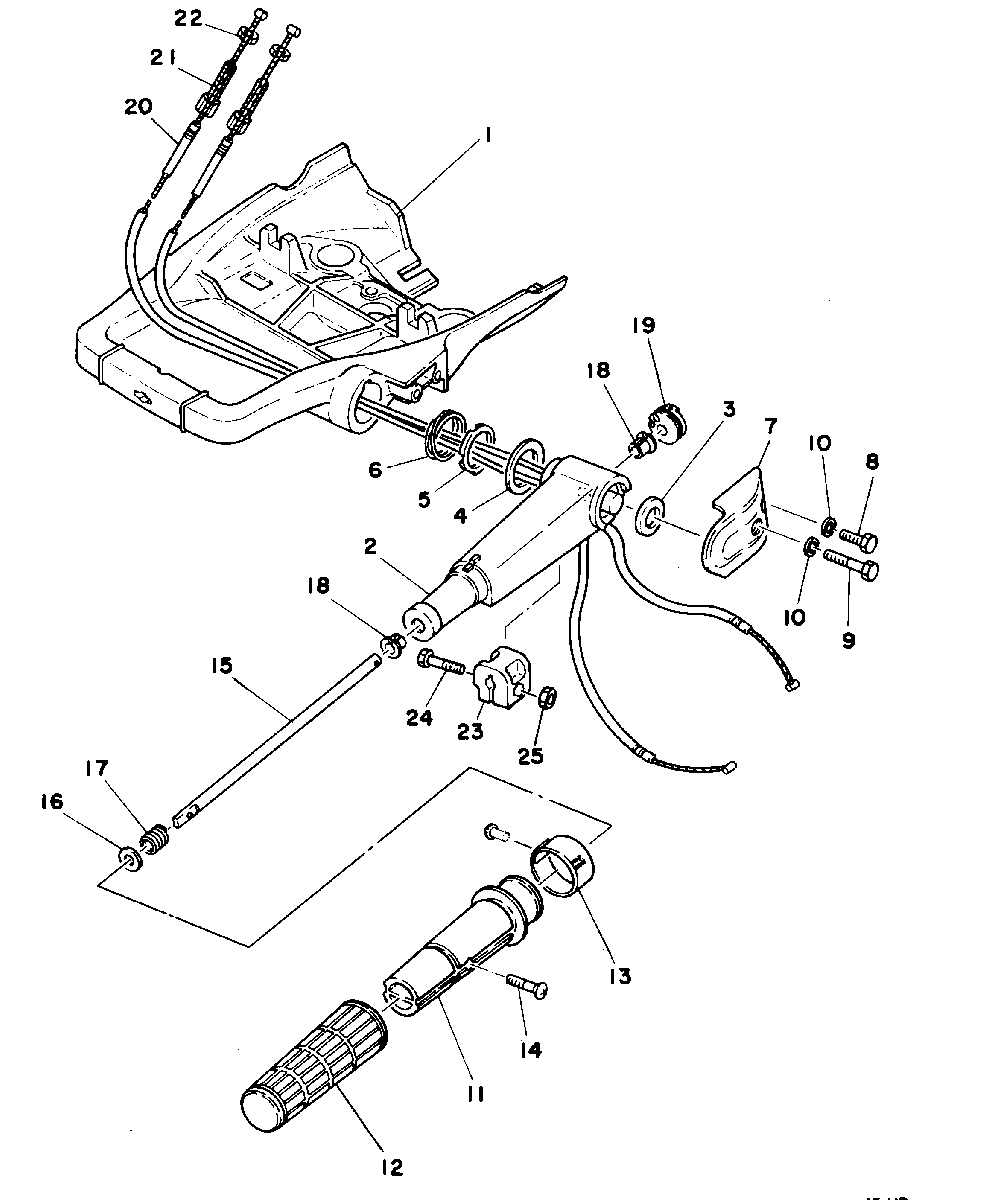

STEERING HANDLE для Mariner - 15A 651-300100 AND BELOW
-
№АртикулНазвание
-
182874M BRACKET,STEERINGBRACKET,STEERING
-
281583M HANDLE,STEERINGHANDLE,STEERING
-
323-82119M SPACERSPACER
-
423-81861M WASHER,PLATEWASHER,PLATE
-
523-81136M SPACER,HANDLESPACER,HANDLE
-
624-82093M SPRING,COMPRESSIONSPRING,COMPRESSION
-
781129M HANDLE,STEERINGHANDLE,STEERING
-
810-84058M BOLTBOLT
-
910-83285M BOLTBOLT
-
1013-82212M WASHERWASHER
-
1181585M GRIP, STERRIN GHANDLEGRIP, STERRIN GHANDLE
-
1280509M RUBBER,HANDLERUBBER,HANDLE
-
1343100M INDICATIOR,THRUTTLEINDICATIOR,THRUTTLE
-
1410-811916M SCREWSCREW
-
1581584M SHAFT,STERRING HANDLESHAFT,STERRING HANDLE
-
1612-82220M WASHER,PLATEWASHER,PLATE
-
1724-82095M SPRING,COMPRESSIONSPRING,COMPRESSION
-
1823-81945M BUSHINGBUSHING
-
1984510M LEVER,THROTTLELEVER,THROTTLE
-
2082868M THROTTLE WIRE COMPTHROTTLE WIRE COMP
-
2182793M ADJUSSTER,CABLEADJUSSTER,CABLE
-
2211-81777M NUTNUT
-
2382895M PIECE,FRICTIONPIECE,FRICTION
-
2410-84058M BOLTBOLT
-
2511-83056M NUTNUT
